Product Overview

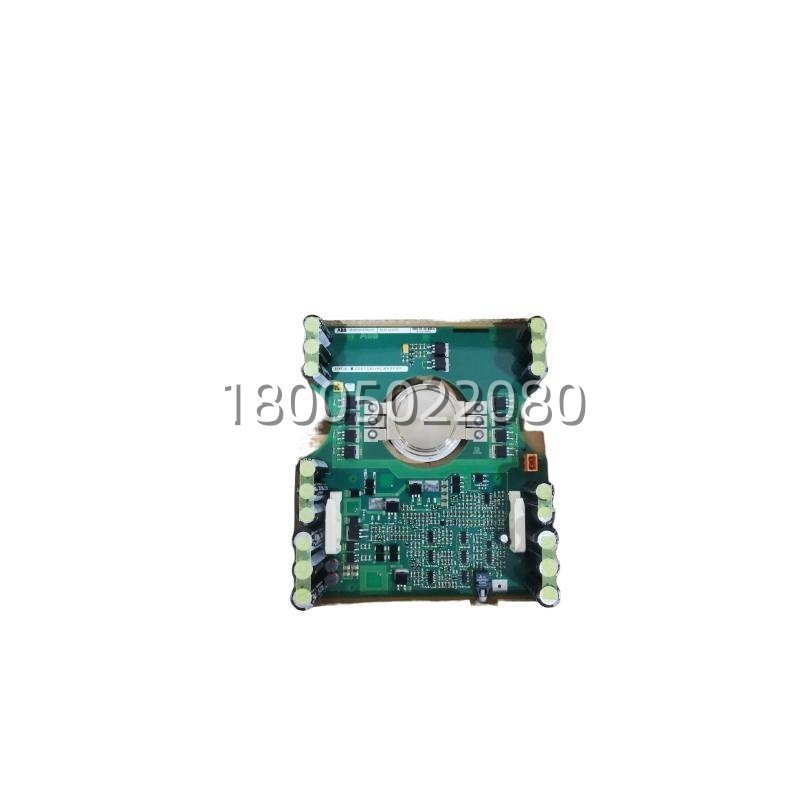

The ABB 3BHB003387R0101, also identified as 5SXE05-0151, is a high-performance IGCT (Integrated Gate-Commutated Thyristor) gate driver module engineered by ABB for the most demanding medium and high-voltage power conversion applications . This sophisticated gate drive unit serves as the critical interface between the control system and the high-power semiconductor switches, translating low-voltage PWM commands from the main controller into the high-current, precisely-timed gate pulses required to reliably trigger IGCT modules such as the 5SHX08F4502 . The ABB 3BHB003387R0101 is the “brain” behind the power switching action, ensuring that each IGCT switches on and off with microsecond precision to achieve efficient and reliable power conversion .

The ABB 3BHB003387R0101 is typically deployed in ABB’s ACS6000 and ACS8000 series medium voltage drives, as well as in large-scale static var compensator (SVC) and high-voltage direct current (HVDC) systems . Its design incorporates fiber optic communication for complete galvanic isolation, advanced desaturation detection (DESAT) for real-time short-circuit protection, and undervoltage lockout (UVLO) to safeguard the power module . This fusion of robust isolation, powerful drive capability, and embedded proactive protection makes the ABB 3BHB003387R0101 a cornerstone of reliability for demanding industrial applications, from steel rolling mills to large mining conveyors and wind power converters . The 5SXE05-0151 designation is often used interchangeably with 3BHB003387R0101 to refer to the same gate pulse amplifier module, which works in concert with the 5SHX08F4502 IGCT and GVC703AE01 control board to form a complete power conversion chain .



Technical Specifications

Parameter Name	Value
Product Model	ABB 3BHB003387R0101
Designation	5SXE05-0151 (Gate Pulse Amplifier Module)
Manufacturer	ABB
Product Type	IGCT Gate Driver / Gate Pulse Amplifier Module
System Platform	ABB ACS6000 / ACS8000 Medium Voltage Drives
Compatible Power Device	5SHX08F4502 (IGCT, 4500V)
Control Interface	Fiber Optic Input (Galvanic Isolation)
Peak Gate Current	Up to 15A
Response Time (tdon/tdoff)	<1 µs
Protection Features	DESAT, UVLO, Overcurrent, Overtemperature
Operating Temperature	-25°C to +70°C
Mounting Type	PCB / Power Stack Integration
Key Component	GVC703AE01 (System Control Board)
Approx. Weight	0.1 kg



Main Features and Advantages

Fiber Optic Isolation and Noise Immunity: The ABB 3BHB003387R0101 achieves complete galvanic isolation through its fiber optic input. This is its most critical advantage for high-voltage environments, as it completely decouples the sensitive, low-voltage control side from the high-power, noisy power stage . This design prevents ground loops and ensures that the IGBT or IGCT switching commands are immune to electromagnetic interference (EMI), guaranteeing reliable triggering even in the presence of the severe electrical noise generated by MV drives and large converters . The 5SXE05-0151 variant of the module leverages this technology to deliver ultra-fast pulse amplification with exceptional signal fidelity.

High Peak Drive Current and Fast Switching: The ABB 3BHB003387R0101 is capable of delivering a peak gate current of up to 15A, which is essential for the fast charging and discharging of the high-capacitance gates of large power semiconductors like the 5SHX08F4502 . This high drive strength ensures that the IGCT transitions quickly between its on and off states (<1µs), significantly reducing switching losses and improving overall system efficiency . The ability to provide a robust negative gate voltage during the off-state further locks the device against accidental turn-on, enhancing the safety margin in high-voltage applications.

Advanced Protection and Diagnostics (DESAT & UVLO): The ABB 3BHB003387R0101 is not just a driver; it is an intelligent protection module. It incorporates Desaturation Detection (DESAT), which constantly monitors the IGBT’s on-state voltage. In the event of a short circuit or severe overload, the voltage across the device rises sharply, and the DESAT circuit on the 3BHB003387R0101 can initiate a soft shutdown in microseconds, preventing catastrophic failure of the expensive power module . Integrated Undervoltage Lockout (UVLO) ensures that the gate driver does not attempt to turn on the IGBT unless the gate supply voltage is sufficient, preventing the device from operating in a high-dissipation, linear mode that would cause rapid overheating.
