Description

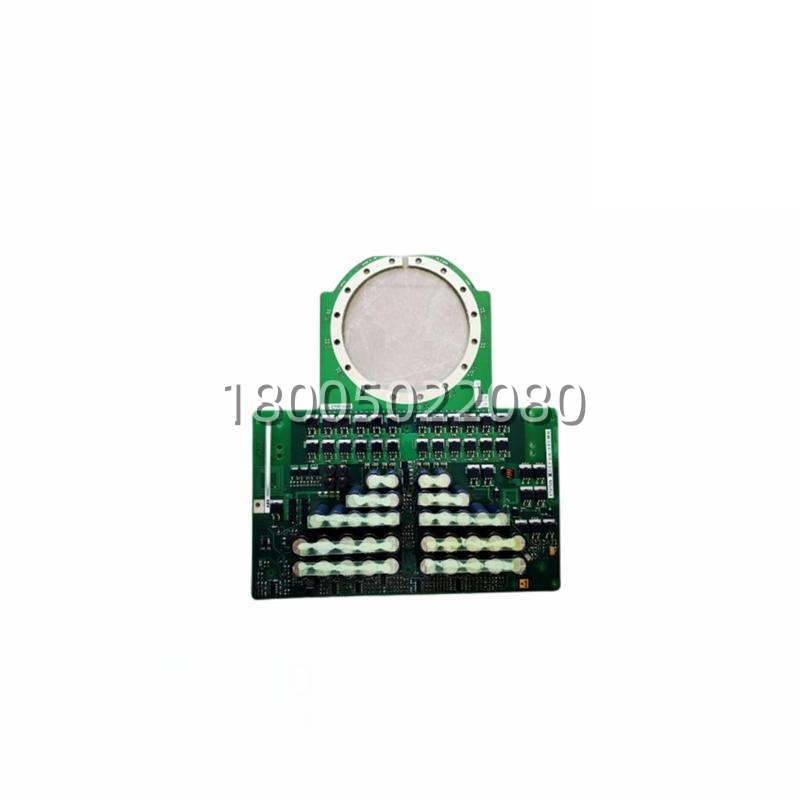

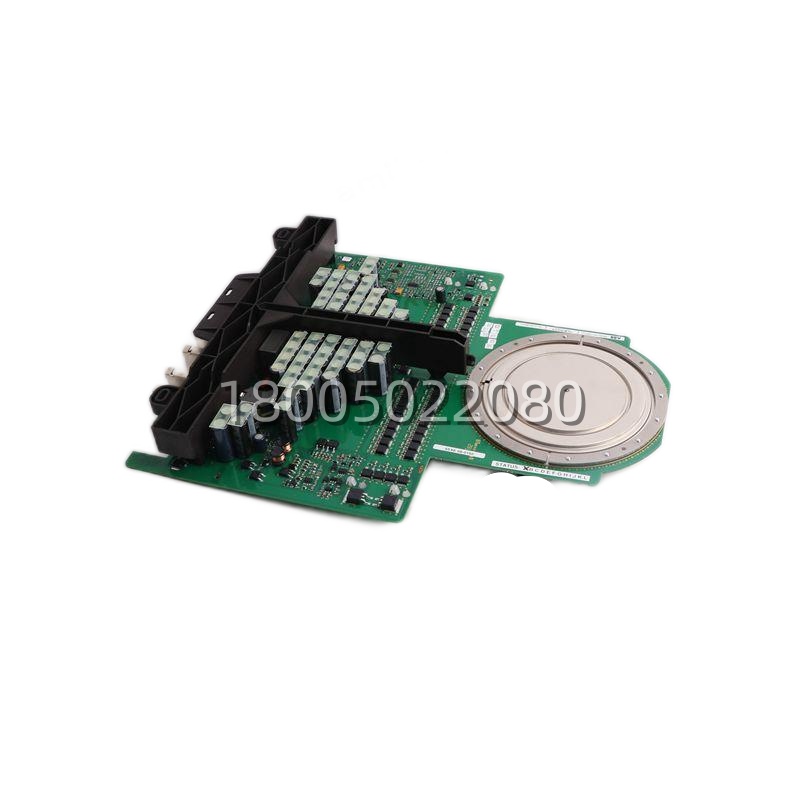

The 3BHB003154R0101​ is an IGCT (Integrated Gate-Commutated Thyristor) module assembly manufactured by ABB, comprising the 5SHX 1960L0004​ press-pack IGCT device (~4500 V / ~1960 A class), the 5SXE 04-0150​ gate-driver electronics, and the 3BHL000390P0104​ gate unit that interfaces the assembly to the drive’s control rack. Designed for ABB ACS6000 medium-voltage drives, PCS8000 railway/traction converters, SVC Light STATCOMs, and LCI (Load Commutated Inverter) gas-turbine starting systems, the 3BHB003154R0101​ forms one “switching limb” in a 6-pulse or 12-pulse inverter stack. Unlike discrete IGBT bricks, the 3BHB003154R0101​ is a clamped press-pack: no solder joints, double-sided water cooling, and series-stackable to 6–10 kV without explicit series-balancing resistors — the IGCT’s hard-turn-off characteristic handles that intrinsically.

Application Scenarios

At a 6 MW plate-mill main drive — ABB ACS6000 on 10 kV, feeding a 4-pulse IGCT inverter per phase — the Sunday night shift logged “IGCT Fault, Phase V, Upper Limb” during a reversal spike (the mill reverses the plate, so the inverter sees full DC-link + commutation overshoot). The drive tech’s first look: the 3BHB003154R0101​ on Phase V upper had taken a desat during the spike — the 5SXE 04-0150 gate driver had self-protected (as designed), but the 5SHX 1960L0004​ press-pack itself showed a failed forward-blocking test on the bench. The OEM’s first quote was a full inverter-section strip + new IGCT assembly + re-torque clamp frame — roughly €22 k and a 5-day lead. The plant’s storeroom carried a 3BHB003154R0101​ as part of the MV-drive critical-spares kit (standardized after a 2021 “no-spare” incident that cost 3 days of plate production). Swap took 90 minutes: isolate the 10 kV line + DC-link (wait the mandated 20-min discharge, verify <50 V DC with HV DMM), crack the inverter cubicle, release the clamp-frame hydraulic/pneumatic pressure, unbolt the 3BHB003154R0101​ from its heat sink (water-cooling quick-disconnects labeled — don’t mix up inlet/outlet between phases), unplug the fiber to the 3BHL000390P0104​ gate unit, seat the replacement, re-pressure the clamp to ABB’s spec (~120 kN per press-pack, torque-wrench + pressure gauge mandatory — under-clamp = hot spot, over-clamp = crush the ceramic), refill coolant, power up. The ACS6000 cleared the IGCT self-test, the plate mill ran its Monday morning coil, and the inverter stack never got stripped. The 3BHB003154R0101​ turned a “replace the inverter section” story into a 90-minute clamp job — and it’s exactly why this assembly belongs on every ACS6000/SVC site’s critical-spares shelf.

Parameter

Main Parameters	Value/Description
Product Model	3BHB003154R0101​ (Assembly)
Sub-Components	5SHX 1960L0004​ (IGCT press-pack) + 5SXE 04-0150​ (gate driver PCB) + 3BHL000390P0104​ (gate unit)
Manufacturer	ABB
Product Category	IGCT Module Assembly / Press-Pack Power Semiconductor
IGCT Voltage Class	~4500 V (5SHX 1960 series)
IGCT Current Class	~1960 A (continuous, press-pack rating)
Switching Type	Hard-switched, zero tail current (IGCT advantage vs. IGBT)
Gate Driver	5SXE 04-0150 (narrow μs pulse, desat/UVLO protection)
Gate Unit Interface	3BHL000390P0104 (fiber to drive control: CON-2A / KU C720)
Cooling	Double-sided water cooling (quick-disconnect on assembly)
Mounting	Clamp-frame press-in, typical ~120 kN clamping force (verify per drive manual)
Applicable Systems	ABB ACS6000 MV drives, PCS8000, SVC Light, LCI turbine starters
Operating Temperature	-40 °C to +125 °C (junction), cabinet ambient -25 °C to +70 °C
Certifications	CE / UL (per ABB MV drive system family)



Note: The 3BHB003154R0101​ is an assembly order code. The 5SHX 1960L0004 press-pack, 5SXE 04-0150 driver, and 3BHL000390P0104 gate unit can also be sourced individually if only one sub-component failed — but most sites stock the full 3BHB003154R0101​ to avoid bench-separated scrap. Clamp pressure and water-cooling torque are drive-specific — verify ACS6000/LCI/SVC manual before install.

Technical Principles and Innovative Values

• Innovation Point 1: IGCT Hard Turn-Off Eliminates Tail Current.​ Unlike an IGBT, which has a current “tail” during turn-off (recombination in the N− drift region) that limits switching frequency and adds turn-off loss, the 5SHX 1960L0004​ inside the 3BHB003154R0101​ is a gate-commutated thyristor — once the gate pulse is pulled negative, the anode current commutates to the gate within ~1–2 μs and the device hard-blocks. No tail, no “safe operating area” derating at high current, and conduction loss at 1960 A is ~30–40 % lower than an equivalent IGBT brick. This is why ABB chose IGCT for ACS6000 instead of IGBT — at 2+ MW and 6–10 kV, the IGCT wins on both loss and series-stacking simplicity.
• Innovation Point 2: Press-Pack, No Solder, Double-Sided Cooling.​ The 5SHX 1960L0004​ has no bond wires and no solder — it’s a ceramic-body press-pack clamped between two water-cooled heat sinks in the 3BHB003154R0101​ assembly. Current flows axially through the whole wafer (both sides), so thermal resistance is ~half of a single-sided IGBT brick. Failure mode is “short-circuit” (not open, like a bonded IGBT) — a failed IGCT typically shorts, which the drive detects as “IGCT Fault” and trips clean, rather than leaving an open that arcs. The clamp-frame pressure (~120 kN) is what maintains the internal wafer contact — too little = hot spot, too much = crush the ceramic. ABB specifies both torque and kN, and the 3BHB003154R0101​ install needs a calibrated pressure gauge, not just a torque wrench.
• Innovation Point 3: 5SXE 04-0150 + 3BHL000390P0104 Gate Chain.​ The 3BHB003154R0101​ isn’t just the press-pack — the 5SXE 04-0150​ driver PCB bolts directly to the IGCT’s gate terminal (inside the clamp frame, accessible via a flap), and the 3BHL000390P0104​ gate unit sits on the DIN rail just outside the inverter cubicle, talking fiber to the 5SXE 04-0150​ and backplane to the KU C720 / CON-2A. This split keeps the ~kV/μs dV/dt of the inverter floor on the 5SXE​ (next to the IGCT) and the logic-level fiber on the 3BHL000390P0104​ (next to the control rack). The 3BHB003154R0101​ assembly thus covers the full “control pulse → gate → power switch” chain in one spare code.



Application Cases and Industry Value

A wind-farm collector substation running ABB SVC Light (STATCOM, 10 kV, ±20 MVAr) for reactive compensation had a Phase B upper-limb IGCT fail during a grid-voltage swing — the 3BHB003154R0101‘s 5SXE 04-0150​ reported desat, the SVC tripped to bypass, and the farm lost its reactive support for 36 hours while the OEM quoted a 10-day lead on the assembly. The utility’s E&I lead had previously pushed to stock two 3BHB003154R0101​ assemblies per SVC (one per limb phase, shared cold spare) after reading an ABB white paper — the storeroom had one. Swap took the utility’s MV contractor 2 hours (including the 20-min DC-link discharge wait): clamp-frame release, water-disconnect, 3BHL000390P0104​ fiber unplug, seat new 3BHB003154R0101, re-pressure to 118 kN (they logged it), coolant refill, power up. The SVC self-test passed, MVAr support restored, and the farm avoided a curtailment notice. The lead’s math: one 3BHB003154R0101​ at ~€3.5 k vs. one curtailment day at ~€18 k lost-generation — easy call. The 3BHB003154R0101​ paid for itself in the first event.In a second case, a gas-turbine combined-cycle plant running an ABB LCI (Load Commutated Inverter) starter on the 250 MW GT used the 3BHB003154R0101​ during a decadal overhaul. The LCI’s 6-pulse thyristor stack was being retired in favor of IGCT (better switching, less harmonic), and the EPC selected the 3BHB003154R0101​ as the IGCT assembly because it dropped into the same clamp-frame footprint as the old thyristor modules — same water-manifold, same gate-fiber routing, same clamp-pressure spec. The “retrofit” was really a like-for-like swap at the assembly level, and the GT’s start-up time dropped 8 % because the IGCT’s faster turn-off let the LCI commutate cleaner at low speed. The plant engineer’s note: “Same clamp, same water, better switch — the 3BHB003154R0101​ made the LCI-to-IGCT jump almost boring.”
