Application Scenarios:In an automotive welding robot cell, the 440G‑T27127 is installed on the perimeter fencing access door. When the robot is in automatic cycle, the safety PLC provides power to the switch’s solenoid, locking the door shut to prevent operators from entering the hazardous area. The two normally‑closed (NC) safety contacts are wired in series with the safety relay module to monitor door position. If an E‑Stop is pressed or a fault occurs, power is cut to the solenoid, instantly unlocking the door even if the robot is coasting to a stop, ensuring personnel can escape or access the cell safely during a fault condition.
Parameter:
| Main Parameters | Value/Description |
|---|---|

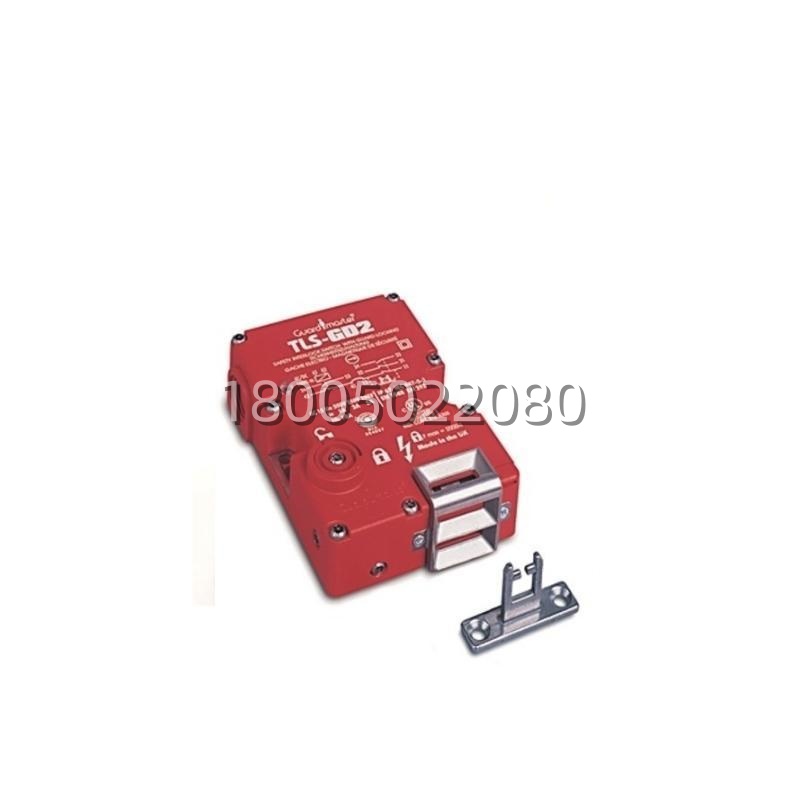

| Product Model | 440G‑T27127 (TLS‑2 GD2) |
| Manufacturer | Allen‑Bradley (Rockwell Automation) |
| Product Series | Guardmaster 440G |
| Device Type | Solenoid Guard Locking Safety Interlock Switch |
| Locking Principle | Power‑to‑Lock (PTL) – Energized to Lock |
| Solenoid Voltage | 24V AC/DC (Unipolar) |
| Safety Contacts | 2 Normally Closed (NC) – Positive‑Driven |
| Auxiliary Contacts | 1 Normally Open (NO) – for Status Monitoring |
| Holding Force | 2000 N (approx. 450 lbf) |
| Protection Rating | IP67, IP69K (High‑Pressure Washdown Capable) |
| Safety Rating | SIL 3, PL e (Cat. 4) per ISO 13849‑1 |
| Actuator Type | Requires Separate Coded Actuator (e.g., 440G‑A21) |
| Connection | M20 Conduit Entry |
| Status | Active / Mature Product |
Technical Principles and Innovative Values:
- Innovation Point 1: Power‑to‑Lock Fail‑Safe Philosophy. Unlike mechanical locks that may jam during a fault, the 440G‑T27127 employs an electromagnetic locking mechanism that is de‑energized to unlock. This “Power‑to‑Lock” logic is intrinsically safe: any failure in the control circuit (e.g., broken wire, blown fuse, E‑Stop) or loss of power immediately releases the lock. This guarantees that personnel are never trapped inside a hazardous area during an emergency, a critical requirement for modern functional safety standards (SIL 3, PL e).
- Innovation Point 2: High‑Security Coded Actuation & Tamper Resistance. The switch requires a uniquely coded actuator (sold separately) to operate the contacts and locking tongue. This design prevents defeat by common tools like screwdrivers, ensuring compliance with ISO 14119 requirements for high‑security interlocking. The rotatable head offers four possible key insertion angles, simplifying installation alignment while maintaining strict anti‑tamper integrity.
- Innovation Point 3: Integrated Monitoring & Washdown Durability. Beyond basic locking, the switch integrates dual‑channel safety contacts (2 NC) for the safety circuit and an additional auxiliary contact (1 NO) for status feedback to the PLC (e.g., “Door Locked” indication). The housing is rated IP69K, making it suitable for harsh environments like food processing plants where high‑pressure, high‑temperature washdowns are routine, without compromising the electrical integrity or locking force.
