Application Scenarios

In an ABB Advant OCS​ or Symphony/MOD 300​ system, the YPQ110A​ is installed in a control station rack (e.g., TB840A backplane). It connects to field devices via terminal blocks, translating real-world analog signals (e.g., 4–20 mA pressure transmitters) into digital values for the controller, and vice versa. It is commonly found in power generation (thermal/hydro), chemical processing, and pulp & paper​ industries for tasks like pump control, level monitoring, and valve positioning.



Parameter

Main Parameters	Value/Description

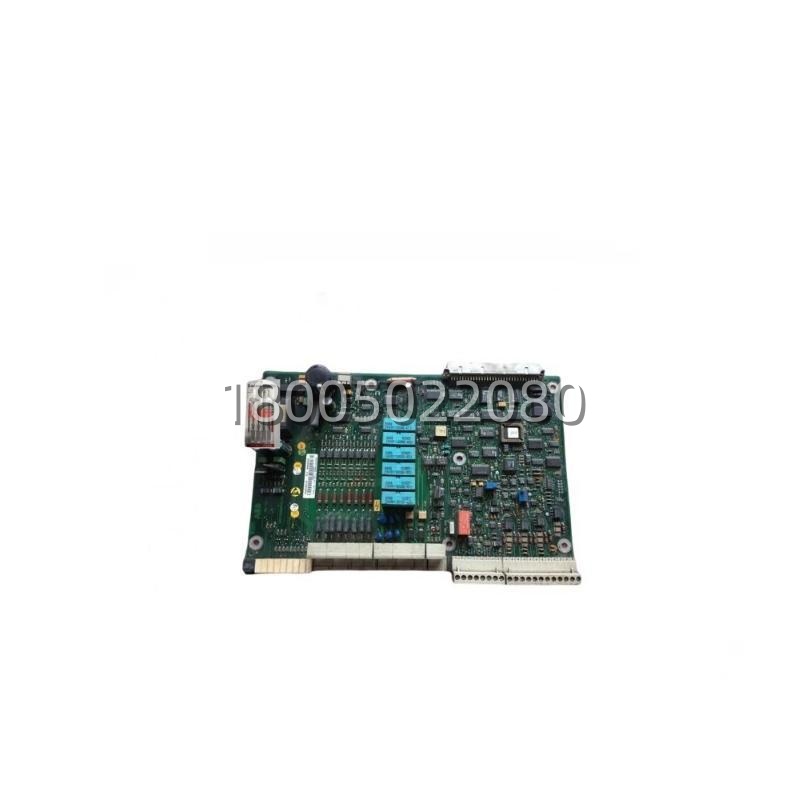

Product Model​	ABB YPQ110A​ (常见物料号: 3ASD573001A5)
Manufacturer​	ABB
Product Category​	PC I/O Board / Hybrid I/O Module (ULMA系列)
Digital Input (DI)​	8 or 16 channels​ (版本依赖), 24 V DC, dry contact/voltage
Digital Output (DO)​	8 channels, 24 V DC transistor (sourcing)
Analog Input (AI)​	2 or 8 channels​ (版本依赖), 0–10 V / 0–20 mA
Analog Output (AO)​	2 channels, 0–10 V / 0–20 mA
Communication Bus​	PC I/O Bus​ (连接YPP110A CPU或PC板), PROFIBUS DP​
Supply Voltage​	24 V DC​ (via backplane or terminal)
Isolation​	500 V AC​ (channel-to-system)
Operating Temp.​	-20 °C to +60 °C​ (industrial grade)
Mounting​	DIN Rail​ or rack slot





Technical Principles and Innovative Values

The YPQ110A is a product of ABB’s “All In One” I/O philosophy for industrial PC-based control.

• Innovation Point 1: High-Density Hybrid Integration:​ Unlike separate DI, DO, AI cards, the YPQ110A combines all four signal types on one module. This reduces rack space​ and simplifies the bill of materials for compact control cabinets, especially in retrofitting projects.
• Innovation Point 2: Signal Conditioning Onboard:​ The board incorporates signal conditioning, filtering, and A/D conversion​ circuitry. It can directly accept raw signals from RTDs, T/Cs (via external resistors), or standard analog inputs, providing a clean interface for the PC controller.
• Innovation Point 3: Flexible Application Profiles:​ Depending on the firmware and configuration (jumpers or software), it can operate as a local I/O for MACH2 controllers​ (YPP110A) or as a PROFIBUS DP slave, offering flexibility in system integration.



Application Cases and Industry Value

A hydroelectric power plant used YPQ110A​ boards in its governor control system. The modules were responsible for reading turbine speed sensors (digital inputs), monitoring bearing temperatures (analog inputs), and outputting control signals to the servo valves (analog outputs). The high reliability and mixed-signal capability of the YPQ110A allowed the plant to consolidate I/O points, reducing spare part inventory and simplifying troubleshooting during annual maintenance overhauls.
