Application Scenarios

In a water treatment plant’s filtration control skid, the YPQ201A​ is mounted in a 9320 rack. It runs the control logic to sequence pumps and valves based on analog level inputs. Its integrated PROFIBUS DP​ master port connects to remote I/O panels across the plant, while the Ethernet port allows engineers to monitor process trends and modify setpoints from the central control room via Modbus TCP, eliminating the need for separate protocol gateways.



Parameter

Main Parameters	Value/Description
ABB Order Number​	3BSE050091R20​
Alternative P/N​	YT204001-KA​

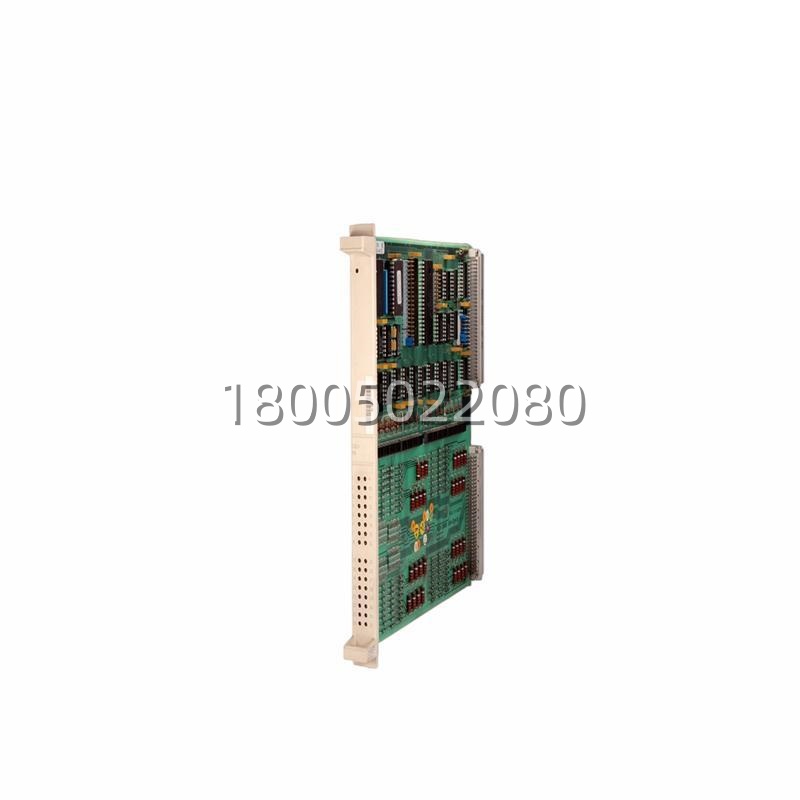

Functional Designation​	YPQ201A CPU Module​
Target System​	Freelance AC 700F / 9320 Controller Rack
Processor​	32-bit RISC (e.g., ~300 MHz)
Work Memory​	8 MB (for program & variables)
Non-Volatile Memory​	4 MB Flash (for project & firmware)
Communication Ports​	1x Ethernet (10/100Base-T, for engineering/OPC) 1x PROFIBUS DP (Master interface) 1x PROFIBUS DP (Slave) / RS-485 (CS31 bus for I/O)
Max I/O Capacity​	Up to 512 I/O points (via FCIO modules over CS31 bus)
Power Supply​	5 V DC (via 9320 rack backplane)
Operating Temperature​	0°C to +60°C
Programming Software​	ABB Control Builder F (Freelance 2013 or later)
Mounting​	Plug-in module for TU5xx series baseplate





Technical Principles and Innovative Values

• Innovation Point 1: Hybrid DCS/PLC Architecture.​ The YPQ201A​ blurs the line between a traditional PLC and a full DCS. It combines the programming flexibility of a PLC (supporting ladder logic, function blocks, and structured text) with the modularity and distributed I/O management of a DCS via the CS31 bus. This allows engineers to design a single control strategy that handles both discrete machine logic (like a PLC) and continuous process loops (like a DCS) without needing two separate controllers.
• Innovation Point 2: Integrated Multi-Protocol Gateway.​ Unlike basic CPUs that require add-on modules for fieldbus communication, the YPQ201A​ has PROFIBUS DP Master​ functionality built into the base CPU. This eliminates the cost and rack space of a separate communication coupler (like a CI521). The onboard Ethernet port also serves dual duty for engineering access and Modbus TCP server/client functions, making it a compact all-in-one solution for networked automation.
• Innovation Point 3: Deterministic CS31 I/O Bus.​ The module uses the deterministic CS31 bus​ (via the RS-485 port) to communicate with remote I/O stations (FCIO series). This bus protocol ensures predictable scan times and high noise immunity, which is critical for precise timing control in applications like batch processing or coordinated motion control with multiple I/O drops.



Application Cases and Industry Value

• Case 1: Pharmaceutical Batch Reactor Control.​ A biotech company replaced an aging relay-based system with a Freelance platform centered on the YPQ201A. The CPU managed the complex sequence of heating, cooling, and ingredient dosing for a bioreactor. The built-in PROFIBUS DP connected to motorized valve positioners, while the Ethernet interface uploaded batch data to a Manufacturing Execution System (MES). The result was a 20% reduction in batch cycle time due to faster logic execution and improved recipe management.
• Case 2: Cement Plant Material Handling.​ In a cement plant’s raw mill section, the YPQ201A​ was deployed to control conveyor belts, crushers, and weigh feeders. Its ability to handle a large number of digital and analog I/O points (via expansion) and its rugged industrial design (operating in dusty, high-temperature environments) ensured continuous operation. The module’s non-volatile memory retained critical parameters during power dips, preventing material blockages and production losses.
