Application Scenarios:
In a large chemical plant’s Advant Controller 450 cabinet, two SR511 modules are installed in a redundant configuration. They draw power from dual-redundant 24V DC power supplies in the cabinet. The modules efficiently convert this power to 5V, which is distributed via the backplane to the CPU module (e.g., PU512) and surrounding I/O cards. During a routine inspection, plant technicians detect a fault LED on one SR511. Following safety procedures, they hot-swap the faulty module by pulling it out of the subrack and inserting a new one, all while the controller continues running on the backup SR511, preventing any process interruption.
Parameter:

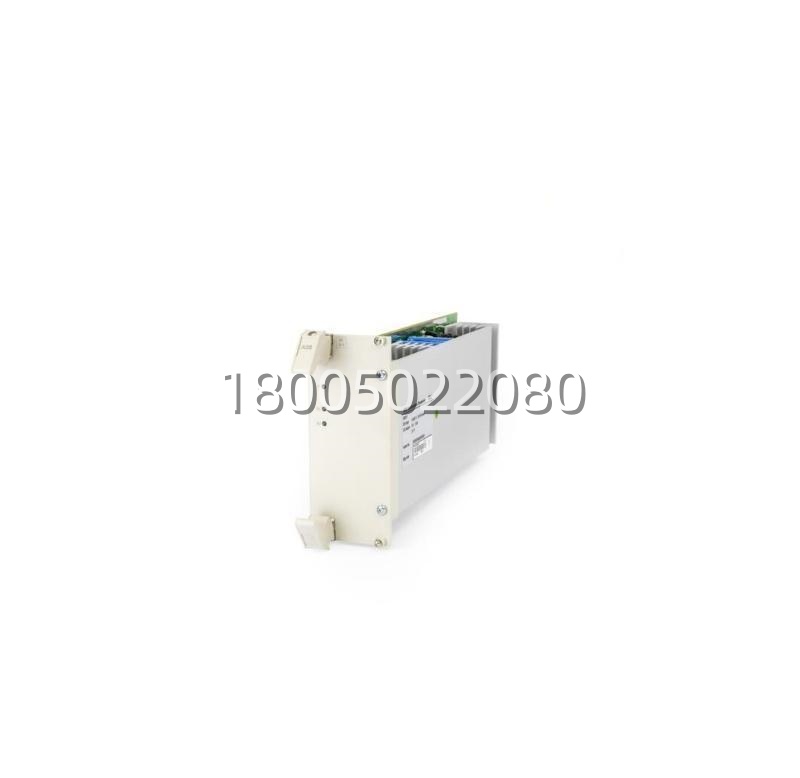

| Parameter Category | Specification Details |
|---|---|
| Product Model | ABB SR511 |
| Material Number | 3BSE000863R0001 (also known as 3BSE000863R1) |
| Product Type | Redundant 5V DC Voltage Regulator / DC-DC Converter |
| Input Voltage | 18 – 30 V DC (Nominal 24 V DC) |
| Main Output | 5 V DC (±1%), up to 35 A (Max ~310 W) |
| Auxiliary Output | 2.1 V DC (for parallel bus termination) |
| Redundancy | Supports N+1 Redundancy (Parallel operation with load sharing) |
| Hot-Swap | Supported (Allows live replacement in redundant configurations) |
| Status Monitoring | Fault signal contact (closes via 100Ω resistor when normal) |
| Operating Temp. | 0 °C to +60 °C (Industrial standard) |
| Dimensions (HxWxD) | 243 mm x 54 mm x 117 mm |
| Weight | Approx. 1.6 kg |
| Mounting | Pluggable into Advant Controller subrack (e.g., RF533) |
Technical Principles and Innovative Values:
- Innovation Point 1: High-Current Backplane Power Conditioning: Unlike generic DC converters, the SR511 is specifically engineered to handle the high inrush and steady-state currents of a fully loaded controller rack. Its 35A output capability ensures that even under peak load from multiple I/O modules and a running CPU, the 5V logic rail remains stable, preventing brownout resets in critical control equipment.
- Innovation Point 2: True N+1 Redundancy with Seamless Load Sharing: The module is designed for parallel redundant operation. Two SR511 units can be connected to the same backplane, actively sharing the load. If one module fails or is removed, the other instantly picks up the full load without any interruption in the 5V supply. This “single-fault tolerance” is a core requirement for high-availability DCS in power and chemical plants.
- Innovation Point 3: Integrated Health Monitoring for Predictive Maintenance: The SR511 includes intelligent monitoring logic. It provides a “Module OK” signal (via a semiconductor switch) that can be read by the system’s health monitoring modules (e.g., TC520). This allows the DCS to generate an early alarm for a failing power module before it causes a controller crash, enabling proactive maintenance.
