Application Scenarios:In a continuous chemical processing plant, the Distributed Control System (DCS) orchestrates thousands of interlocked reactions. A sudden, unexplained restart of an AC 450 controller rack triggers a process upset, leading to off-spec product and a costly shutdown. The root cause is traced to a degraded capacitor in the aging 5V power regulator, causing a voltage dip that the sensitive CPU cannot tolerate. Replacing it with a new ABB SR511 3BSE000863R1 module restores rock-solid 5V power integrity. Its hot-swap redundant design (when installed in pairs) means the faulty unit can be replaced without taking the controller offline, directly addressing the pain point of unplanned downtime and protecting the intellectual “brain” of the entire production unit.
Parameter:
| Main Parameters | Value/Description |
|---|---|

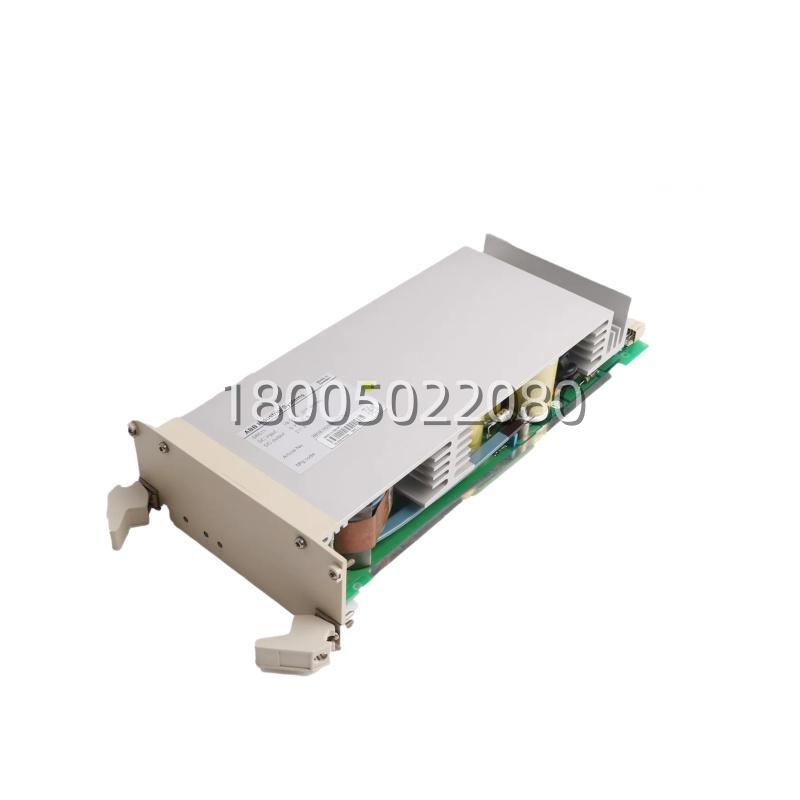

| Product Model | ABB SR511 3BSE000863R1 |
| Manufacturer | ABB |
| Product Category | DC/DC Power Regulator / Logic Power Supply Module |
| Input Voltage | 24 V DC (Nominal) |
| Primary Output | 5 V DC (Logic Power) |
| Auxiliary Output | 2.1 V DC (Bus Termination Bias) |
| Output Current (5V) | High-Current Capability (~35A max, system-dependent) |
| Redundancy | Supports 1+1 Parallel Redundant Operation |
| Hot-Swap Capable | Yes (in redundant configuration) |
| Status Indicators | LEDs for 5V OK, 2V OK, Module Fault (F) |
| Mounting | Plugs into dedicated slot in Advant Controller 400/450/460 Rack |
Technical Principles and Innovative Values:The ABB SR511 3BSE000863R1 is engineered for fault tolerance and power quality in mission-critical control environments.
- Innovation Point 1: Advanced Load Sharing and Redundancy Management: In a redundant pair, the modules do not simply operate in a master/standby mode. They employ active current-sharing technology, where both units contribute equally to the total load. This minimizes thermal stress on each unit, extends component life, and ensures a seamless, bumpless transfer of the full load if one module fails—a stark contrast to designs where the backup module is idle and unproven until a failure occurs.
- Innovation Point 2: Integrated Futurebus+ Signal Integrity Support: Beyond the 5V logic rail, the module provides a precise 2.1V bias voltage for the high-speed parallel Futurebus+ backplane. This active termination is crucial for preventing signal reflections at the multi-drop bus ends, a common source of sporadic communication errors and data corruption in high-performance controller racks, ensuring data moves reliably between the CPU, memory, and communication cards.
- Innovation Point 3: Comprehensive Diagnostic and Fault Reporting: The module integrates directly with the DCS health monitoring system (e.g., via a TC520 system monitor). A fault condition (like loss of output) not only lights the local ‘F’ LED but also changes the state of a solid-state output signal connected to the monitoring system. This enables remote, centralized alarm notification and precise identification of a power supply issue before it causes a controller crash.
