Application Scenarios

In a water treatment plant’s control cabinet, the SPTU240R2​ is mounted on the DIN rail alongside ABB PLCs and I/O modules. It takes the unstable 220V AC​ mains supply, which is prone to surges and sags, and converts it into a clean, regulated 24V DC​ power bus. This DC bus powers the S800 I/O modules​ and TB840 ModuleBus modem, ensuring that field sensor readings (e.g., pH levels, flow rates) are processed without noise-induced errors. If a voltage surge occurs, the module’s built-in overvoltage protection​ instantly clamps the output, preventing costly damage to downstream sensitive electronics.





Parameter

Parameter	Specification

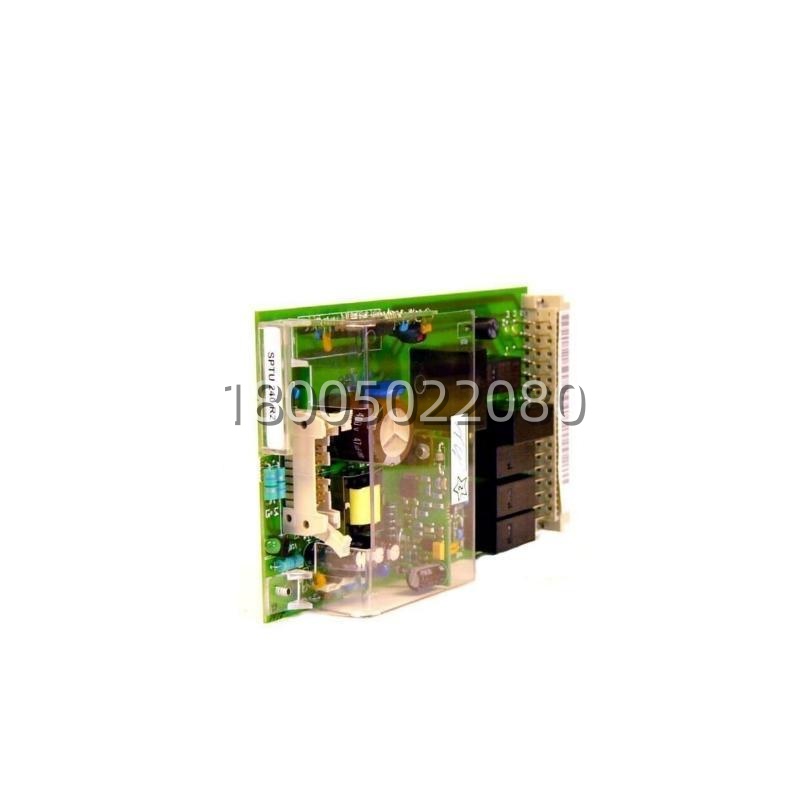

Model​	ABB SPTU240R2 (SPTU 240 R2)
Product Type​	Industrial Switching Power Supply Module
Input Voltage​	85–264 V AC​ (Universal, 47–63 Hz); 120–370 V DC​ (DC input variants)
Output Voltage​	24 V DC​ (Regulated)
Output Current​	10 A​ (Max, at nominal 24V)
Rated Power​	240 W​
Efficiency​	≥ 90%​ (typical, up to 94% at 230V AC)
Ripple & Noise​	≤ 50 mV​ (typical)
Protection Features​	Overvoltage (OVP), Overcurrent (OCP), Short-Circuit (SCP), Overtemperature (OTP)
Operating Temperature​	-20°C to +60°C​ (full load); derating may apply above +60°C
Cooling Method​	Natural convection (fanless)
Mounting​	DIN Rail (TS35)
Dimensions (HxWxD)​	Approx. 100 x 60 x 100 mm​ (varies by specific variant)
Weight​	~ 0.5 kg​
Status​	Active / Critical Spare​ (Widely used in legacy and current systems)







Technical Principles and Innovative Values

• Innovation Point 1: Universal Input with High Immunity:​ Unlike older power supplies that required manual tapping for 110V/220V, the SPTU240R2​ features an auto-ranging universal input​ (85-264V AC). This wide range allows the same module to be deployed globally without hardware changes. Internally, it uses advanced Active PFC (Power Factor Correction)​ circuitry to maintain a high power factor even at low input voltages, reducing harmonic distortion and ensuring stable operation in areas with poor grid quality, such as remote substations or industrial plants with heavy motor loads.
• Innovation Point 2: Multi-Layer Protection for Critical Systems:​ The module is engineered with a “defense-in-depth”​ protection strategy. It incorporates galvanic isolation​ (typically 3-4 kV AC) between the input and output, which is critical for breaking ground loops and protecting low-voltage control electronics from high-voltage transients on the mains. Additionally, its comprehensive suite of electronic protections​ (OVP, OCP, OTP) features a latch-off​ function. In the event of a persistent fault (like a shorted output capacitor on an I/O card), the module shuts down and latches, preventing it from repeatedly cycling and causing a cascading failure in the control rack. This “fail-safe” behavior is vital for 24/7 process industries.
• Innovation Point 3: High Density and Thermal Robustness:​ Despite its 240W output capability, the SPTU240R2​ is designed with a compact footprint​ optimized for high-density control cabinets. It achieves high efficiency (≥90%) through the use of zero-voltage switching (ZVS)​ topologies, which minimizes heat generation. This allows it to operate reliably at elevated ambient temperatures (up to 60°C) commonly found inside sealed electrical panels, often without the need for a noisy cooling fan, thereby increasing system MTBF (Mean Time Between Failures).
