Application Scenarios
In a power plant’s switchgear room, the SPDSI14 is installed in a Harmony rack. It continuously monitors the status of 16 high-voltage circuit breakers (via their auxiliary contacts) and safety interlocks. This real-time status data is fed to the DCS controller to execute protective logic, ensuring the plant’s electrical distribution system operates safely.
Parameter
| Main Parameters | Value/Description |
|---|---|

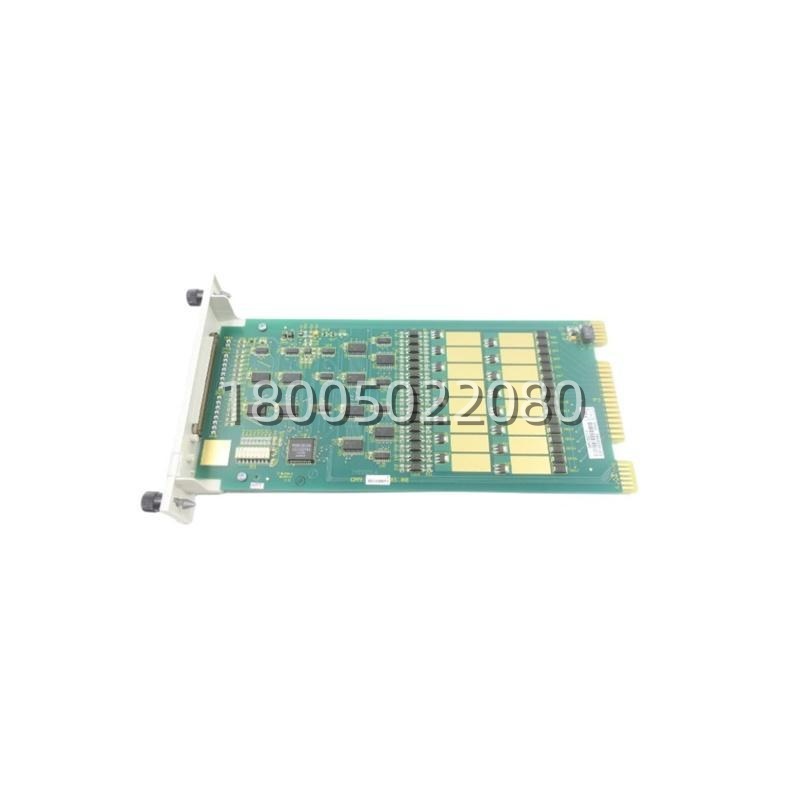

| Product Model | ABB SPDSI14 (Digital Input) |
| Manufacturer | ABB (Bailey) |
| Product Category | Digital Input Module (DI) |
| Compatible System | Symphony Plus, Harmony Rack, INFI 90 |
| Channels | 16 isolated inputs |
| Nominal Voltage | 48 V DC (typical; wide range 24-60V DC) |
| Input Type | Dry contact / Wet contact (sourcing/sinking) |
| Isolation | 1500 V AC (channel-to-channel & field-to-system) |
| Response Time | < 1 ms (configurable filter) |
| Hot-Swap | Supported (in redundant/configurable systems) |
| Operating Temp. | 0 °C to +60 °C |
Technical Principles and Innovative Values
The SPDSI14 is designed for mission-critical process automation where signal integrity is paramount.
- Innovation Point 1: High-Density & High-Voltage Tolerance: It packs 16 channels into a single module slot while supporting a wide input voltage range (typically 48V DC, common in power industry control circuits). This reduces cabinet space and spare part complexity compared to separate 24V and 120V cards.
- Innovation Point 2: Robust Isolation for Harsh Environments: Each channel features 1500V optical isolation. This is critical in industrial settings with heavy electrical noise (e.g., from VFDs or switchgear), preventing ground loops and transients from corrupting the sensitive DCS controller.
- Innovation Point 3: Deterministic SOE (Sequence of Events) Capability: With a fast response time (<1ms) and configurable filtering, it can be used for Sequence of Events recording. This helps engineers precisely reconstruct the order of fault events during a plant trip, drastically reducing downtime analysis.
Application Cases and Industry Value
A chemical plant’s DCS upgrade required integrating legacy 48V DC motor starter feedback signals. The SPDSI14 modules were deployed as they natively supported the 48V signal level without external signal converters. This eliminated the need for costly interposing relay panels, simplified the bill of materials, and provided reliable status monitoring for the plant’s critical cooling water pumps, ensuring uninterrupted production.
