Description

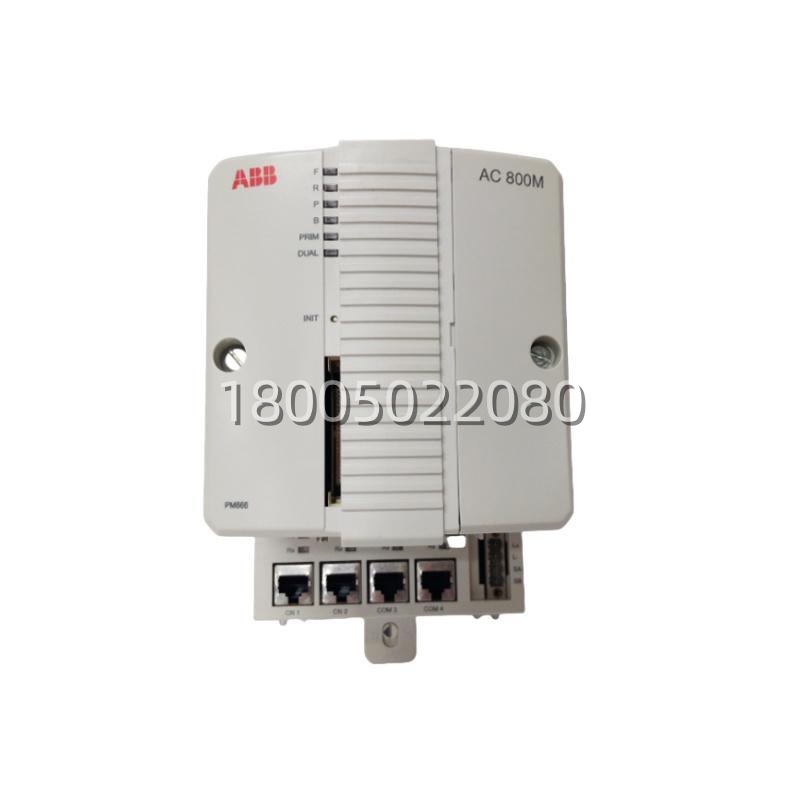

The ABB PM866K01 3BSE050198R1​ is a Processor Unit Kit​ for the AC 800M​ high-performance controller family, serving as the core of ABB’s System 800xA​ and Advant​ DCS platforms. This kit includes the PM866 CPU module, TP830 baseplate, and essential accessories (terminators, battery) for rapid deployment. Powered by a 133 MHz MPC866​ processor with 64 MB RAM, it delivers deterministic real-time control for complex process automation. With dual Ethernet ports, serial interfaces, and support for CEX-Bus​ expansion (S800 I/O, communication modules), it is engineered for reliability in critical industries like power generation and oil & gas.

Application Scenarios

In a Taiyuan-based steel plant, the PM866K01​ acts as the primary controller for a blast furnace gas cleaning system. The CPU executes PID loops to regulate scrubber water flow and pressure, while its CEX-Bus​ connects to remote S800 I/O​ racks monitoring temperature and valve positions. The controller’s 10 Mbit/s Ethernet​ interfaces integrate the process into the plant-wide 800xA​ DCS, enabling real-time data exchange with the operator stations for efficient energy management.
