Description

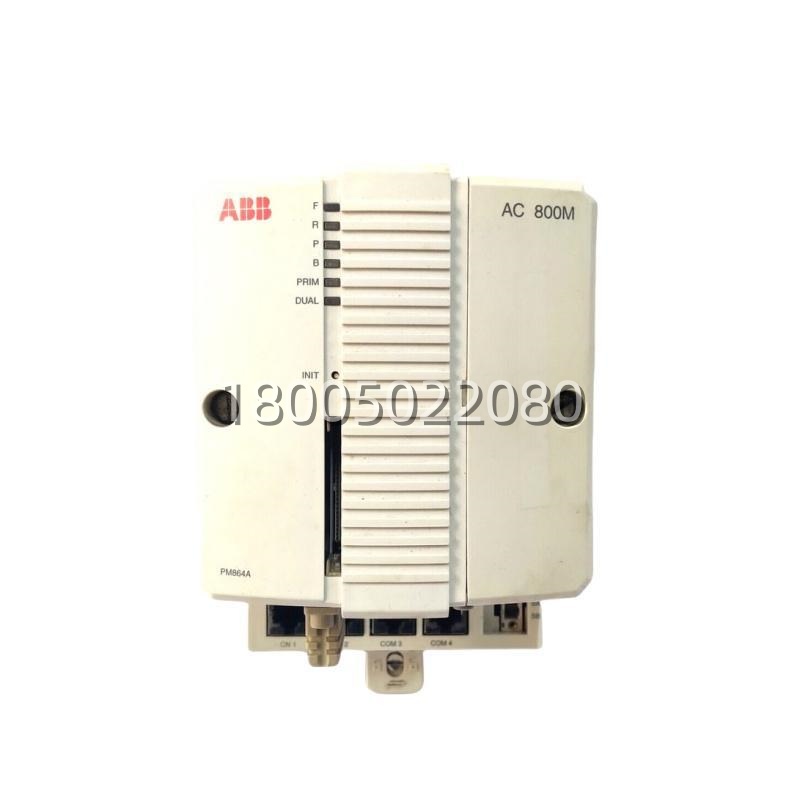

The ABB PM864AK01 (3BSE018161R1)​ is a high-performance processor unit kit​ that serves as the core controller for ABB’s AC 800M​ distributed control system (DCS) family, particularly within the System 800xA​ environment. Designed for demanding process automation applications, this kit includes the PM864A CPU module, a TP830 base plate, and necessary termination components. It features a 32-bit RISC processor, substantial memory capacity, and built-in dual Ethernet interfaces. Engineered for complex control tasks in industries such as power generation, oil & gas, and chemical processing, it offers robust performance, hardware redundancy options, and seamless integration with ABB’s S800 I/O series. Its modular design and support for multiple fieldbus protocols make it a versatile and reliable choice for both new installations and system upgrades.

Application Scenarios

In a large-scale thermal power plant’s boiler control system, the existing legacy controllers were struggling with slow scan times and a lack of redundancy, leading to occasional unplanned shutdowns during peak load. The engineering team replaced the old system with an ABB PM864AK01 (3BSE018161R1)-based AC 800M controller. The PM864A‘s high-speed processing capability allowed for the consolidation of multiple control loops into a single controller, reducing inter-controller communication latency. Its support for hardware redundancy (via RCU Link) ensured continuous operation during maintenance or unexpected CPU faults. The dual Ethernet ports enabled seamless integration of the turbine control system (via Modbus TCP) and the plant’s S800 I/O racks, providing operators with a unified view of the entire process. This upgrade resulted in a significant improvement in system response time and eliminated production losses due to control system failures.
