Picture a system integrator building a compact motor control center (MCC) bucket for a packaging line conveyor: the available panel cutout allows only a Frame B drive, the motor is a 2.2 kW / 400 V three-phase induction unit, and the customer requires dynamic braking for rapid stop cycles plus conformally coated electronics for a humid, mildly corrosive environment. The 20AC5P0A0AYNANC0 fits perfectly—its 5 A continuous rating covers the 2.2 kW ND demand, the built-in brake IGBT handles deceleration energy without an external chopper, and the conformal coating on the printed circuit boards protects against moisture and airborne contaminants. When the drive is installed in the MCC, wired to the motor, and commissioned via the RS232/RS485 ports, the 20AC5P0A0AYNANC0 holds the conveyor speed to within 0.1% of setpoint (sensorless vector mode, 120:1 speed range) while the integrated PID function regulates line tension or pressure—all without adding a separate controller.
Parameter

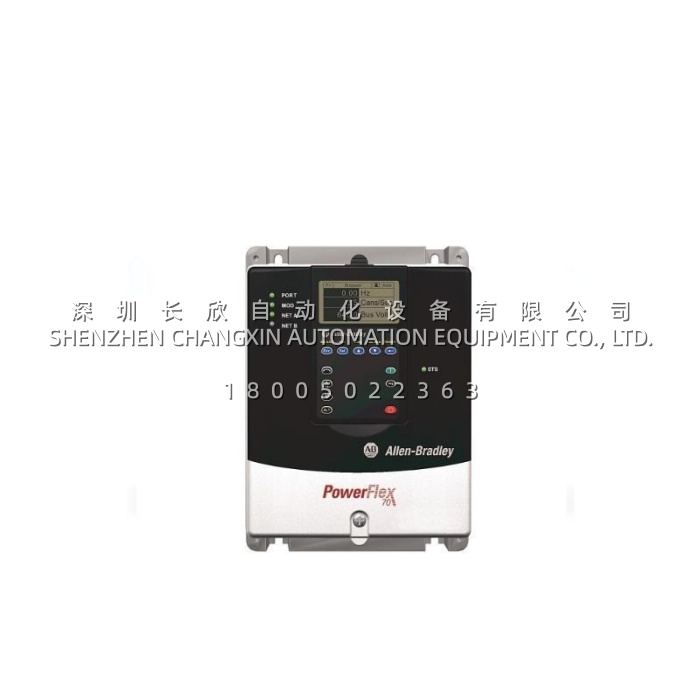

| Main Parameters | Value / Description |
|---|---|
| Product Model | 20AC5P0A0AYNANC0 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Product Category | PowerFlex 70 Adjustable Frequency AC Drive (VFD) |
| Lifecycle Status | Phased Out / End of Life (engineering replacement available) |
| Input Voltage | 400 VAC, 3-phase (415 V nominal, 50 Hz) |
| Output Current | 5.0 A continuous; 5.5 A for 1 min; 7.5 A for 3 sec |
| Power Rating | 2.2 kW Normal Duty / 1.5 kW Heavy Duty |
| Motor Voltage | 460 V nominal @ 380-480 V drive rating |
| Control Method | Sensorless vector with full tuning; V/Hz with slip compensation |
| Speed Regulation | ±0.1% of base speed across 120:1 range (vector mode) |
| Efficiency | 97.5% at rated current and nominal line voltage |
| Brake IGBT | Installed (dynamic braking transistor integrated) |
| Internal Brake Resistor | Not included (115 Ω internal dynamic brake resistor option) |
| EMC Filtering | Second Environment Filter per CE EMC directive (89/336/EEC) |
| Human Interface | No HIM (blank plate); LCD keypad optional |
| Digital I/O | 6 digital inputs, 2 digital outputs |
| Analog I/O | 2 analog inputs, 1 analog output |
| Communication Protocols | EtherNet/IP, Modbus, DeviceNet, PROFIBUS, CAN, TCP/IP (via comm modules) |
| Enclosure Rating | IP20 / NEMA Type 1, panel mount, with conformal coating |
| Frame Size | B |
| Dimensions (H×W×D) | 239.8 mm × 171.7 mm × 203.3 mm |
| Weight | 3.61 kg |
| Operating Temperature | 0-50 °C without derating |
| Overload Protection | Class 10 motor overload (NEC Art. 430); software current limit 20-160% |
| Short-Circuit Rating | Up to 200,000 A symmetrical |
| Certifications | UL 508C (File E59272), CE, cULus |
Specifications compiled from NHP PowerFlex 70 datasheets and Rockwell Automation PowerFlex 70 technical data .
Technical Principles and Innovative Values
- Innovation Point 1 – Sensorless vector control with 120:1 speed range. The 20AC5P0A0AYNANC0 delivers ±0.1% speed regulation from 0.1% to 100% of base speed without an encoder, thanks to Allen-Bradley’s patented sensorless vector algorithm—giving servo-like performance for a standard induction motor at a fraction of the cost .
- Innovation Point 2 – Integrated brake IGBT for dynamic stopping. Unlike basic VFDs that coast or rely on external braking choppers, the 20AC5P0A0AYNANC0 has the brake transistor built in, so the drive can absorb regenerative energy during rapid deceleration. Pair it with a 115 Ω dynamic brake resistor, enable parameter 148, and the drive handles frequent start-stop cycles effortlessly .
- Innovation Point 3 – Enhanced 24 V I/O control architecture. The 20AC5P0A0AYNANC0 uses 24 V DC control I/O, isolating the low-voltage logic from the motor power circuits and simplifying integration with Allen-Bradley ControlLogix and CompactLogix PLCs. Six digital inputs, two digital outputs, two analog inputs, and one analog output are pre-wired on the control terminal block, eliminating external I/O expansion for most applications .
- Innovation Point 4 – Programmable acceleration & deceleration with S-curve. Two independent accel/decel ramps can be set from 0.1 to 3600 seconds each, with selectable S-curve shaping for smooth ramp transitions. This lets the 20AC5P0A0AYNANC0 handle fragile loads (glass, liquids, precision web materials) without mechanical shock .
- Innovation Point 5 – Multi-protocol communication readiness. While the base 20AC5P0A0AYNANC0 ships without a communication module, the chassis accepts any 20-COMM-* option card—EtherNet/IP, DeviceNet, Modbus, PROFIBUS, CAN, or ControlNet—transforming the drive into a fully networked node on a PlantPAx or legacy PLC system .
- Innovation Point 6 – Conformal coating for harsh environments. The PCBs inside the 20AC5P0A0AYNANC0 carry a protective conformal coat, and the drive meets the CE EMC “Second Environment” directive—meaning it is approved for industrial areas with high electromagnetic interference, moderate humidity, and airborne particulates without extra shielding .
