Description

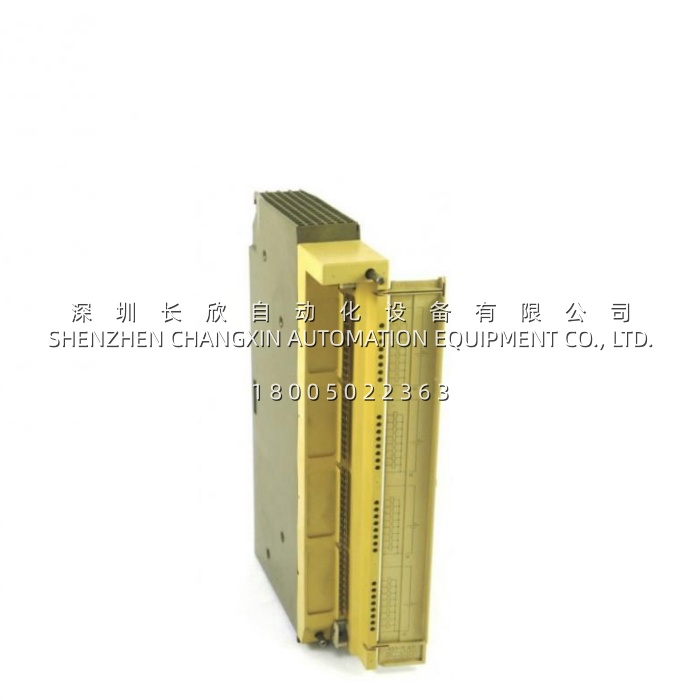

The Siemens 6ES5451-7LA11 is a floating digital output module from the SIMATIC S5 451 series, engineered for S5-115U, S5-115F, and S5-115H PLC systems. This high-density module provides 32 discrete output channels operating at 24V DC, each capable of driving up to 0.5A with full galvanic isolation via optocouplers.

The defining characteristic of the Siemens 6ES5451-7LA11 is its “floating” design—each group of 8 channels is electrically isolated from the PLC backplane and from other channel groups. This is a critical distinction from the non-floating 441 series modules, making the Siemens 6ES5451-7LA11 the preferred choice for distributed systems where sensors and loads are powered from multiple power supplies with different ground references.

Application Scenarios

A large chemical processing plant operated S5-115F redundant controllers managing reactor temperature control and valve actuation across multiple production trains. The facility had struggled with ground loop issues from non-isolated output modules, causing intermittent false activations of critical safety valves. By deploying the Siemens 6ES5451-7LA11 across their PLC racks, the plant achieved reliable actuator control with its opto-isolated design eliminating ground potential differences. The Siemens 6ES5451-7LA11 addressed the critical need for a high-density, noise-immune output solution in a distributed automation environment.

The Siemens 6ES5451-7LA11 is the go-to choice for controlling up to 32 loads per module in systems where ground isolation is paramount: solenoid valves, motor contactors, signal lamps, relay coils, and small actuators in distributed control architectures. Its 32-channel high density—far exceeding typical small-frame S5 modules—enables system designers to control hundreds of loads using minimal rack slots. The module’s floating isolation ensures reliable operation even in high-EMI environments where ground potential differences between cabinets are inevitable.

Parameters
