Product Overview

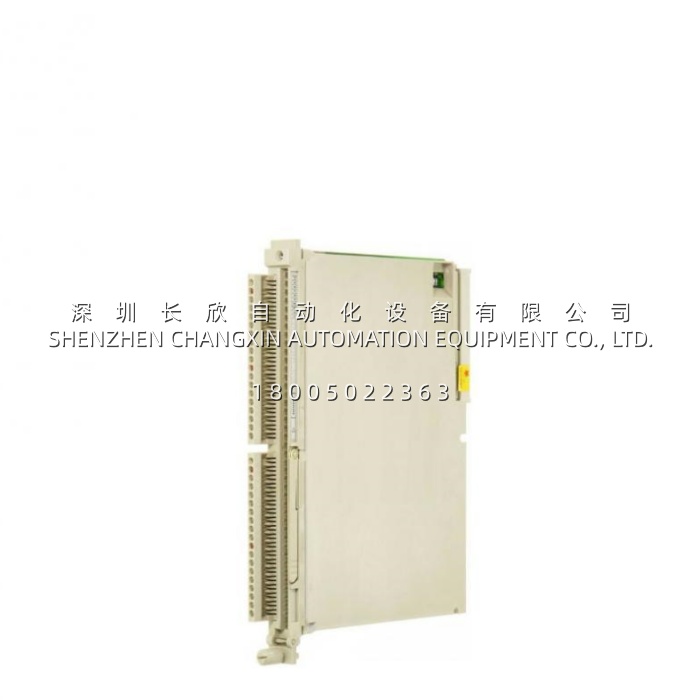

The SIEMENS 6ES5451-4UA12 is a high-density digital output module from the SIMATIC S5 451-4 series, specifically engineered with a floating (galvanically isolated) output architecture for robust industrial control applications. As part of the compact U-form (Kompaktbauweise U) design, the SIEMENS 6ES5451-4UA12 provides 32 channels of 24V DC transistor-switched outputs, each capable of delivering up to 0.5A to field actuators such as solenoid valves, relays, and indicator lamps . This module is compatible with a wide range of S5 platforms, including the S5-90U, S5-95U, S5-100U, S5-115U, S5-135U, and S5-155U, as well as ET 100U and ET 200U distributed I/O systems .

The defining characteristic of the SIEMENS 6ES5451-4UA12 is its floating output design, which provides galvanic isolation between the output circuits and the PLC backplane, as well as between output groups . This critical feature significantly enhances system immunity to electrical noise, eliminates ground loop issues, and protects the controller from voltage spikes that commonly occur when switching inductive loads . The SIEMENS 6ES5451-4UA12 is designed with high-quality transistor switching technology, offering sub-millisecond switching delays that ensure precise and timely control of actuators in real-time applications . As the SIMATIC S5 product family has reached end-of-life status, the SIEMENS 6ES5451-4UA12 remains an essential preservation component for facilities worldwide that continue to rely on these proven control systems for critical production and process operations.
