Description

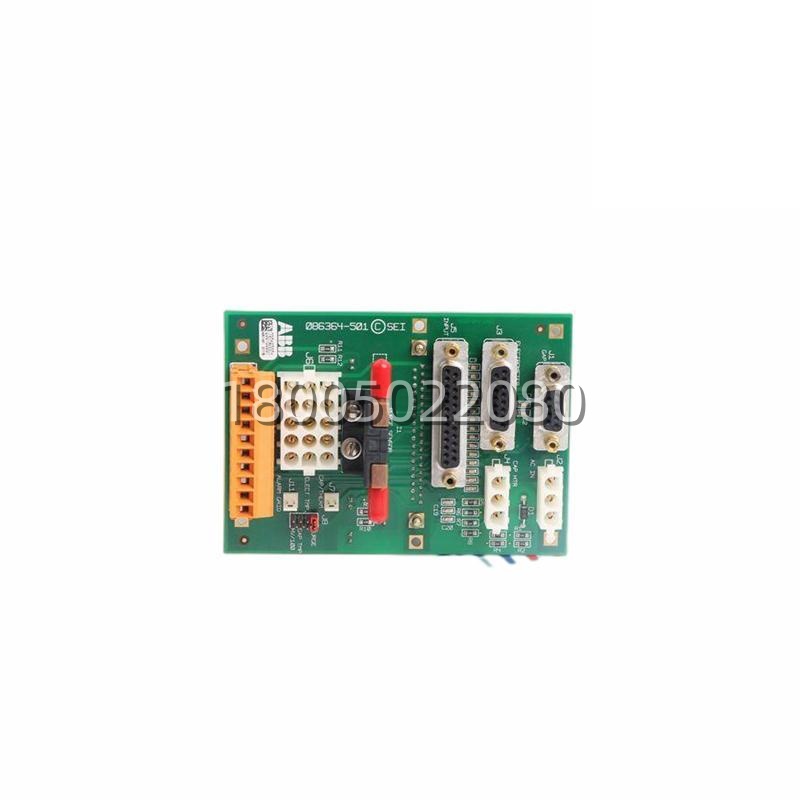

The ABB 086364-001 is a high-precision Printed Wire Assembly (PWA) sensor module, specifically engineered for ABB’s Electronic Control System (ECS) and advanced measurement platforms. Serving as a critical interface between physical sensor heads (such as X-ray, Isotope, Laser, or Inductive probes) and the central process controller, this module performs vital signal conditioning, amplification, and digitization tasks. Widely used in continuous processing industries like steel rolling, aluminum foil production, and paper manufacturing, the 086364-001 ensures that minute variations in thickness, tension, or position are captured with high fidelity, enabling real-time automatic control adjustments that maintain product quality within tight tolerances.

Application Scenarios

Imagine a high-speed cold rolling mill producing automotive-grade steel strips. The line relies on a series of C-frame thickness gauges positioned before and after the mill stand to feed data into the Automatic Gauge Control (AGC) system. Recently, operators have noticed erratic thickness deviations and frequent “hunting” of the hydraulic roll gap cylinders, leading to off-spec coils and increased scrap rates. Diagnostics reveal that the original sensor interface modules are suffering from component aging, causing signal drift and an inability to filter out high-frequency electrical noise generated by the main drive motors.

In this critical situation, replacing the faulty units with the ABB 086364-001 sensor module offers an immediate restoration of control stability. The 086364-001 features advanced low-noise amplification and dynamic filtering capabilities that isolate the weak sensor signals from the harsh electromagnetic environment of the mill. Upon installation, the 086364-001 provides a clean, stable feedback signal to the AGC system, allowing it to make precise, smooth adjustments to the roll gaps. By deploying the 086364-001. the mill eliminates product variance, reduces scrap by over 20%, and prevents costly mechanical wear on the hydraulic actuators caused by erratic control signals, ensuring consistent production of high-value steel.
