Description

Main Features and Advantages

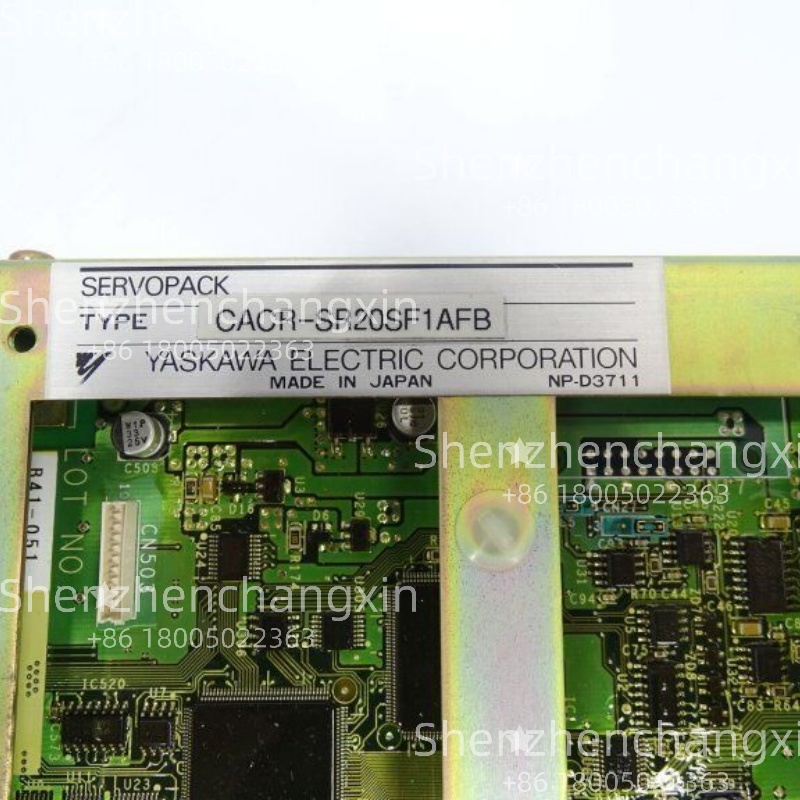

Enhanced Power and Torque Handling:With a rated power of 2.2kW and maximum overload current of 25.5A,the YASKAWA ELECTRIC CACR-SR20SF1AFB delivers superior torque capacity compared to its predecessors,making it ideal for applications involving heavy load manipulation,such as lifting large industrial components or operating high-force machinery.

Adaptive Control Technology:Equipped with advanced vector control and adaptive PID,this servo drive dynamically adjusts to load variations,ensuring precise speed and position control even under fluctuating conditions.This adaptability is critical for applications like precision welding of large structures and high-speed machining of heavy workpieces.

High-Speed Communication:Featuring Ethernet/IP as standard,the YASKAWA ELECTRIC CACR-SR20SF1AFB enables fast data transmission for real-time monitoring and control,facilitating seamless integration with modern industrial networks.This enhances system responsiveness and allows for efficient remote diagnostics and programming.

Extended Environmental Range:Designed to operate in temperatures from-10°C to 60°C,this servo drive withstands extreme industrial conditions,including cold storage facilities and high-heat manufacturing environments.Its robust construction resists humidity,vibration,and electromagnetic interference,ensuring reliable performance in harsh settings.

Comprehensive Protection Suite:The YASKAWA ELECTRIC CACR-SR20SF1AFB includes enhanced protection features such as phase loss detection and advanced thermal monitoring,preventing damage to the drive and connected motors.These safeguards minimize downtime and reduce maintenance costs in critical operations.

Application Field

In automotive manufacturing,the YASKAWA ELECTRIC CACR-SR20SF1AFB powers large robotic arms used in assembling heavy components like truck chassis and bus frames.Its high torque capacity and adaptive control enable precise manipulation of heavy loads,ensuring consistent assembly quality in high-volume production lines.

In logistics and material handling,this servo drive controls heavy-duty AGVs and conveyor systems transporting large cargo,such as shipping containers and industrial equipment.Its extended temperature range and robust design ensure reliable operation in ports,warehouses,and outdoor logistics hubs.

In metal fabrication,the YASKAWA ELECTRIC CACR-SR20SF1AFB regulates the motion of large CNC machining centers and plasma cutters,delivering the torque and precision needed to process thick metal sheets and structural components with tight tolerances,meeting aerospace and construction industry standards.

In packaging for heavy industries,such as bulk chemical and construction material packaging,the servo drive controls large filling and sealing machines.Its high-speed response ensures efficient operation,maintaining accuracy even with high-viscosity materials and heavy packaging formats.

Related Products

YASKAWA ELECTRIC CACR-SR25SF1AFB:A higher-power variant with a rated power of 3.0kW,suitable for extreme heavy-duty applications.

YASKAWA SGMGV-20ADC6C:A 2.2kW high-torque servo motor perfectly paired with the YASKAWA ELECTRIC CACR-SR20SF1AFB for optimized performance.

YASKAWA ELECTRIC JUSP-NS600:A advanced programming tool for configuring the YASKAWA ELECTRIC CACR-SR20SF1AFB,enabling detailed parameter tuning and system diagnostics.

YASKAWA ELECTRIC CACR-SR15SF1AFB:A 1.8kW model,ideal for applications requiring high torque with moderate power demands.

YASKAWA SGDM-20DN:A motion controller that coordinates multi-axis systems using the YASKAWA ELECTRIC CACR-SR20SF1AFB,enabling complex motion sequences in robotic cells.

YASKAWA ELECTRIC CIMR-VB4A0015BAA:A high-capacity VFD that complements the servo drive in hybrid systems requiring both servo and general-purpose motor control.

Installation and Maintenance

Pre-installation preparation:Before installing the YASKAWA ELECTRIC CACR-SR20SF1AFB,ensure the mounting surface is robust,properly grounded,and capable of supporting the drive’s weight.Verify the three-phase power supply matches 200-240V AC±10%and that wiring is sized for 8.5A continuous current.Confirm compatibility with the selected servo motor and use shielded cables for all connections to prevent electromagnetic interference.

Maintenance recommendations:Inspect connections quarterly for tightness,especially power terminals,to avoid overheating.Clean cooling vents monthly to maintain thermal efficiency.Use YASKAWA’s diagnostic software to perform bi-monthly checks of drive parameters and motor performance.Calibrate annually using certified equipment to ensure accuracy.Monitor fault codes via the integrated display and refer to the user manual for troubleshooting.Store spare units in temperature-controlled environments to preserve performance.

Product Guarantee

The YASKAWA ELECTRIC CACR-SR20SF1AFB is backed by YASKAWA’s industry-leading warranty and quality assurance.Each unit undergoes rigorous testing,including high-load cycling,thermal stress tests,and EMC validation,to meet international standards.It comes with a 24-month warranty covering defects in materials and workmanship under normal operating conditions.YASKAWA’s global technical support provides expert assistance with installation,configuration,and troubleshooting,ensuring optimal performance.Additionally,training programs and documentation are available to maximize the drive’s capabilities,ensuring long-term reliability in heavy-duty motion control applications.
