Description

Product Overview

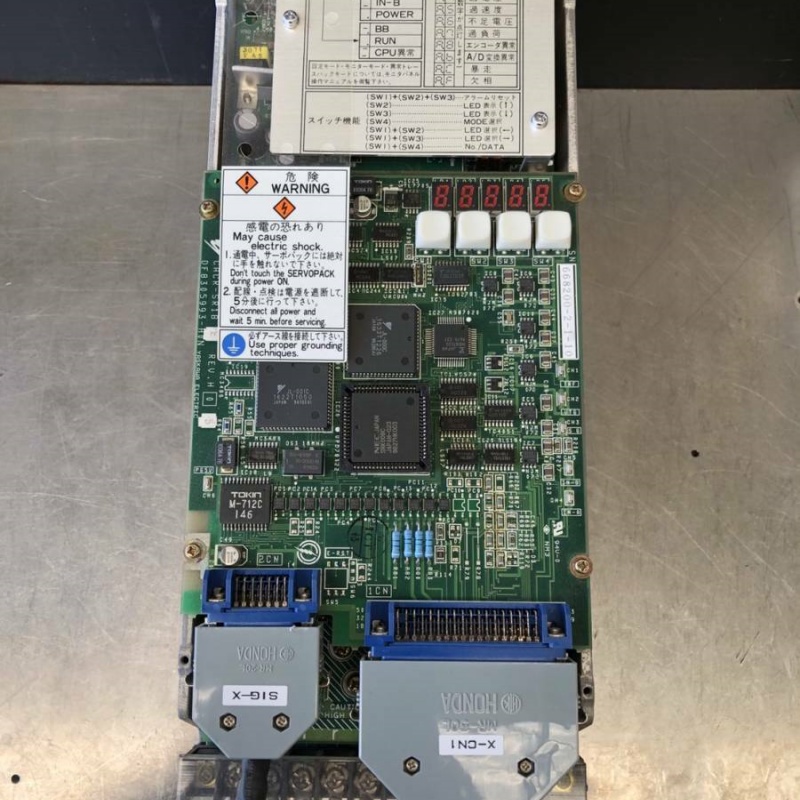

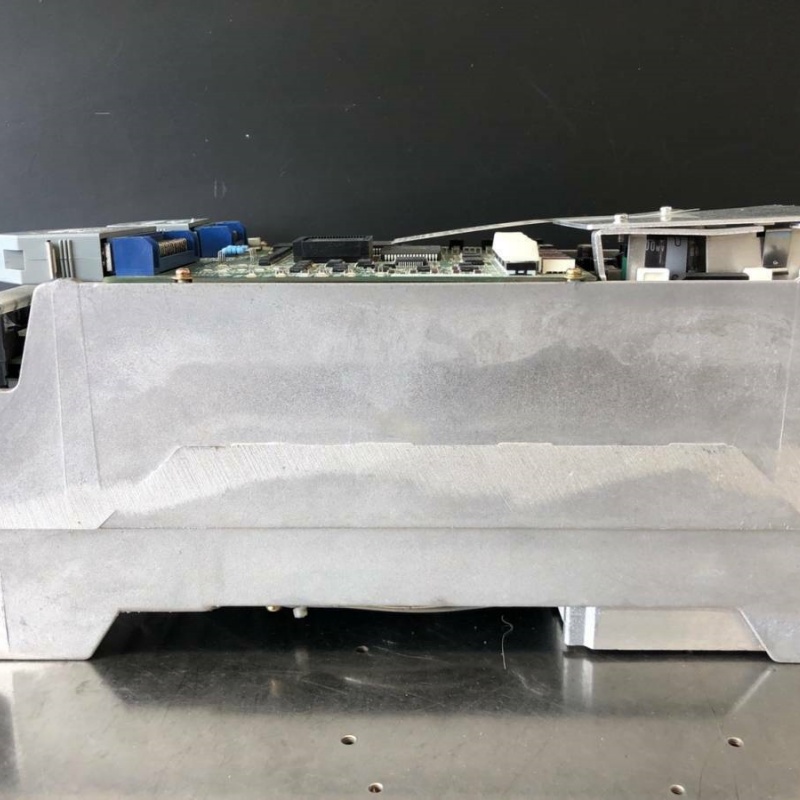

The Yaskawa CACR-SR20BY1SM is a high-performance servo pack designed for industrial automation applications that require precision control and reliability.As part of Yaskawa Electric’s renowned Servo family,the CACR-SR20BY1SM offers advanced features that are ideal for controlling motors in high-precision applications such as robotics,CNC machinery,and packaging systems.This servo pack provides exceptional power efficiency and is equipped with Yaskawa’s state-of-the-art control technology,ensuring optimal performance in demanding environments.

The Yaskawa CACR-SR20BY1SM features a robust design that integrates seamlessly into automated systems.With its precision feedback system and high torque capacity,this servo pack provides smooth and accurate motion control,making it an essential component for systems where reliability and speed are critical.Whether used in light to heavy-duty industrial applications,the CACR-SR20BY1SM provides a versatile solution that helps optimize manufacturing processes,increase productivity,and reduce system downtime.

Yaskawa’s focus on energy efficiency and sustainability is evident in the CACR-SR20BY1SM,which operates with minimal energy consumption while still delivering high power output.The advanced servo control features of this product ensure that automation systems achieve the highest levels of performance and efficiency,while reducing the operational costs associated with power usage.

Technical Specifications

Parameter Name Parameter Value

Product Model Yaskawa CACR-SR20BY1SM

Manufacturer Yaskawa Electric

Product Type Servo Pack

Output Power 1.5 kW

Voltage 200V AC

Motor Type Synchronous Motor

Feedback Type Encoder

Communication Protocol Sigma-7 Drive Protocol

Operating Temperature-10°C to+40°C

Dimensions(WxHxD)225mm x 250mm x 130mm

Weight 3.5 kg

Protection Class IP20(indoor use)

Main Features and Advantages

The Yaskawa CACR-SR20BY1SM servo pack offers multiple advantages that make it an exceptional choice for precision automation:

High-Performance Motion Control:Equipped with Yaskawa’s advanced Sigma-7 Drive Protocol,the CACR-SR20BY1SM provides ultra-precise control for various motion applications,ensuring smooth,high-velocity performance with minimal vibration and noise.

Energy Efficiency:The CACR-SR20BY1SM delivers exceptional power efficiency,minimizing energy consumption while providing the necessary torque and speed for demanding industrial applications.This energy-saving feature not only reduces operational costs but also helps to meet sustainability goals in manufacturing.

Durable and Reliable:Built to withstand the rigors of industrial environments,the CACR-SR20BY1SM features a robust IP20-rated housing,making it resistant to dust and debris while ensuring long-term performance.Its high-quality components and reliable feedback systems ensure that the module performs consistently even under heavy loads.

Wide Application Range:The Yaskawa CACR-SR20BY1SM is versatile and can be used in various applications,from robotics to CNC machines.Its ability to handle a wide range of motor types and its flexibility in system integration make it ideal for numerous industries,including automotive,manufacturing,and packaging.

Compact and Easy Integration:The CACR-SR20BY1SM features a compact design,making it easy to integrate into existing systems where space is limited.Its ease of use and simplified wiring help reduce setup time and improve overall system reliability.

Application Field

The Yaskawa CACR-SR20BY1SM is ideal for a variety of industrial applications that require precision motion control,including:

Robotics:In robotic systems,the CACR-SR20BY1SM ensures precise control over robotic arms,enabling accurate and reliable motion for assembly,welding,and material handling tasks.Its ability to manage high torque and speed makes it indispensable for robotic automation in industries like automotive and electronics.

CNC Machining:For CNC machines,the Yaskawa CACR-SR20BY1SM provides high-precision control over spindle motors and actuators,ensuring optimal performance and high-quality machining.It supports smooth motion during complex operations,reducing wear and tear on equipment and ensuring longer machine life.

Packaging Systems:In automated packaging lines,the CACR-SR20BY1SM controls the motors responsible for moving products through conveyors and other packaging equipment.Its high accuracy and responsiveness are critical for maintaining the speed and precision required in packaging processes.

Textile and Printing:In textile and printing applications,where speed and accuracy are crucial,the CACR-SR20BY1SM ensures that motors perform with minimal error,enhancing production quality and reducing downtime.

Related Products

Yaskawa CACR-SR30BY1SM:A more powerful version of the CACR-SR20BY1SM,offering higher output power and better torque handling for larger industrial machines.

Yaskawa SGDV-1R5A21A:A compatible servo drive unit that works seamlessly with the CACR-SR20BY1SM,providing enhanced control and precision in motion applications.

Yaskawa SGDB-09AP:A more compact and cost-effective alternative for smaller servo systems,ideal for lightweight applications requiring less power.

Yaskawa SGDV-2R8A01A:A higher output power version,suitable for heavier-duty applications that require more torque and speed.

YaskawaΣ-7 Sigma-7 Servo Motor:A highly compatible motor series that works flawlessly with the CACR-SR20BY1SM to achieve superior motion performance in industrial systems.

Installation and Maintenance

Pre-installation preparation:Before installing the Yaskawa CACR-SR20BY1SM,ensure that the installation area is clean and free of dust and debris.The module should be mounted in a location that offers adequate ventilation and protection from environmental factors,especially moisture.Make sure that the power supply matches the 200V AC requirement and that the Sigma-7 Drive Protocol is supported by the system’s PLC or controller.

Maintenance recommendations:Regularly inspect the CACR-SR20BY1SM for any signs of wear or damage,especially around the wiring and connectors.Periodic cleaning of the unit and ensuring that the environment remains free of harmful contaminants can extend the lifespan of the product.Additionally,verify the operational parameters of the system to ensure that the servo pack is functioning within the desired specifications,adjusting feedback settings as needed for optimal motion control.

Product Guarantee

Yaskawa Electric offers comprehensive quality assurance and after-sales support for the CACR-SR20BY1SM servo pack.Every product is rigorously tested to ensure it meets the highest industrial standards for reliability and performance.Yaskawa provides dedicated technical support and service,ensuring that clients receive timely assistance for installation,troubleshooting,and system optimization.With Yaskawa CACR-SR20BY1SM,customers can be confident in achieving peak performance and enhanced efficiency in their automation systems.
