Description

Product Overview

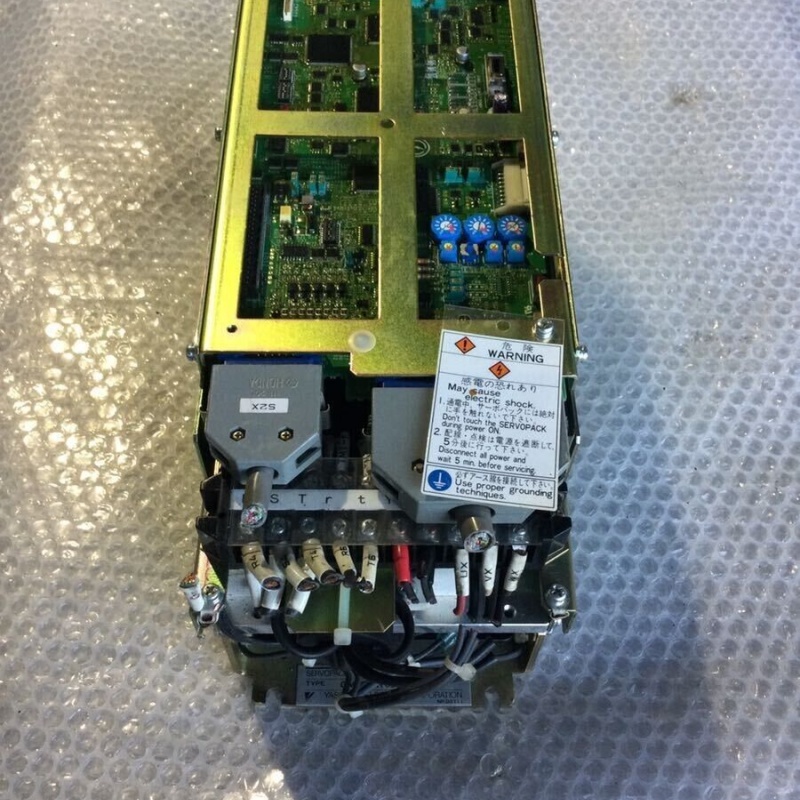

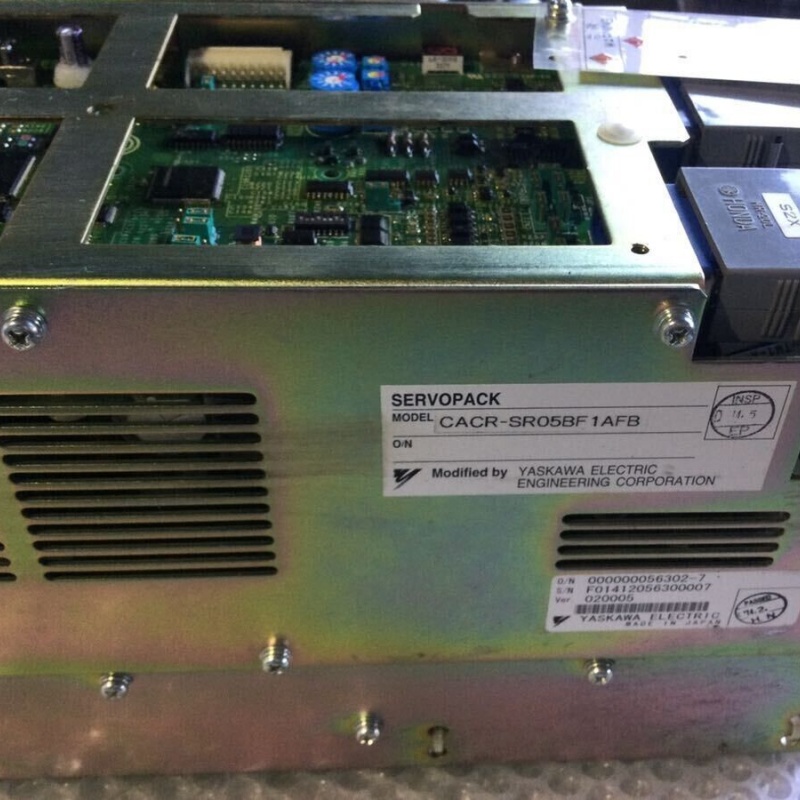

The YASKAWA ELECTRIC SERVOPACK CACR-SR05BF1AFB is a high-performance AC servo drive designed for precision motion control in industrial automation and CNC applications.As part of the YaskawaΣ-V series,this axis drive delivers accurate positioning,smooth operation,and fast dynamic response,making it ideal for use in multi-axis machining centers,robotic arms,packaging systems,and semiconductor handling equipment.

The CACR-SR05BF1AFB supports a wide range of feedback types including incremental encoders,resolvers,and absolute encoders,allowing seamless integration with various motor configurations.It offers multiple control modes such as pulse train position control,analog speed/torque control,and optional Modbus RTU communication,providing flexibility for different application requirements.

Designed with reliability in mind,the CACR-SR05BF1AFB features robust thermal management,overcurrent protection,and an intuitive configuration interface through Yaskawa’s DriveWorksEZ software suite.This ensures ease of setup,diagnostics,and maintenance throughout its lifecycle.Whether used in high-speed cutting,precision assembly,or synchronized motion control,the CACR-SR05BF1AFB serves as a critical component in maintaining process efficiency and product quality.

Technical Specifications

Product Model|CACR-SR05BF1AFB

Manufacturer|Yaskawa Electric Corporation

Product Type|AC Servo Drive/Axis Control Module

Series/Platform|YaskawaΣ-V Series Servo System

Rated Input Voltage|200–230 V AC

Output Power|0.5 kW

Control Mode|Pulse Train Position Control,Analog Speed/Torque Control

Feedback Interface|Encoder,Resolver,Absolute Encoder Support

Communication Interface|Optional:Modbus RTU

Operating Temperature|0°C to+55°C

Mounting Type|DIN Rail or Panel Mount

Protection Features|Overcurrent,Overvoltage,Undervoltage,Overheat Detection

Cooling Method|Forced Air Cooling

Certifications|CE,UL,RoHS

Main Features and Advantages

Precision Motion Control:The CACR-SR05BF1AFB provides micro-level accuracy in positioning and speed regulation,essential for high-precision manufacturing tasks such as laser cutting,PCB drilling,and medical device assembly.Its advanced control algorithms ensure minimal tracking error and stable performance under varying load conditions.

Flexible Feedback Compatibility:Supporting encoder,resolver,and absolute position feedback,the CACR-SR05BF1AFB can be integrated with a broad spectrum of servo motors from Yaskawa and third-party manufacturers.This adaptability makes it suitable for both new installations and retrofitting projects.

Multiple Control Options:With support for pulse train input,analog command signals,and optional Modbus RTU communication,the CACR-SR05BF1AFB offers versatile connectivity to PLCs,CNC controllers,and other automation platforms.This allows engineers to choose the most appropriate control method based on system architecture and performance needs.

Built-in Safety and Protection:The CACR-SR05BF1AFB includes comprehensive safety functions such as overcurrent,undervoltage,overtemperature,and short-circuit protection.These features help prevent hardware damage and enhance system uptime by minimizing unexpected failures.

User-Friendly Configuration:Using Yaskawa’s DriveWorksEZ software,users can easily set up and tune the CACR-SR05BF1AFB for optimal performance.The intuitive interface simplifies parameter adjustment,fault diagnosis,and firmware updates,reducing commissioning time and maintenance complexity.

Compact and Efficient Design:Despite its powerful capabilities,the CACR-SR05BF1AFB maintains a compact footprint,allowing installation in space-limited control cabinets.Its efficient cooling system ensures reliable operation even in demanding industrial environments.

Application Areas

The CACR-SR05BF1AFB is widely used in CNC machine tools,where it controls individual axes with high responsiveness and stability.In the electronics manufacturing sector,it powers pick-and-place machines,wire bonders,and chip sorters that require precise motion and repeatable cycles.

In the packaging industry,the CACR-SR05BF1AFB drives conveyor belts,label applicators,and filling machines with synchronized motion,ensuring consistent product handling and throughput.It is also employed in printing presses,where it manages registration and tension control with sub-millimeter accuracy.

For robotic automation,the CACR-SR05BF1AFB supports articulated arm movements,gripper positioning,and end-effector control in collaborative robots and automated assembly lines.Additionally,it plays a key role in medical devices,enabling micro-positioning in diagnostic instruments and surgical robotics.

Due to its versatility and high-performance characteristics,the CACR-SR05BF1AFB is a preferred choice for engineers seeking reliable and scalable motion control solutions across a variety of industrial sectors.

Related Products

Yaskawa SGDV-05BE01A:A comparable model within theΣ-V series,offering similar power rating but with standard terminal block instead of connector-based wiring compared to the CACR-SR05BF1AFB.

Yaskawa CACR-SR10BB:Higher power version of the CACR-SR05BF1AFB,suitable for larger motor sizes and more demanding motion applications.

Yaskawa MP2000iec Controller:Works in tandem with the CACR-SR05BF1AFB to provide centralized multi-axis motion control in complex automation systems.

Yaskawa SGMCS Servo Motor:Frequently paired with the CACR-SR05BF1AFB for high-torque,direct-drive applications requiring rapid acceleration and deceleration.

Yaskawa DriveWorksEZ Software:Used to configure,monitor,and optimize the CACR-SR05BF1AFB via a user-friendly graphical interface.

Yaskawa CACR-MR05BF:An earlier generation model that shares physical compatibility with the CACR-SR05BF1AFB,often used as a retrofit option.

Yaskawa CIMR-VFAC21:AC drive alternative for non-servo applications,sometimes used alongside the CACR-SR05BF1AFB in hybrid motion-control systems.

Installation and Maintenance

Pre-installation preparation:Before installing the CACR-SR05BF1AFB,ensure that the power supply voltage matches the rated input of 200–230 V AC.Verify that the control cabinet maintains an ambient temperature between 0°C and+55°C and has adequate ventilation to support forced air cooling.Confirm that all motor and encoder cables are compatible with the CACR-SR05BF1AFB specifications and that proper grounding is implemented.

Maintenance recommendations:Regularly inspect the CACR-SR05BF1AFB for dust accumulation and clean the heat sink fins if necessary to maintain thermal efficiency.Monitor the LED indicators to detect early signs of faults such as overtemperature or communication errors.Use diagnostic tools like DriveWorksEZ to perform periodic checks on motor current,encoder signal integrity,and overall system health.Update firmware as needed to ensure compatibility with evolving control strategies and enhance performance.

Product Guarantee

We offer a full product guarantee for every CACR-SR05BF1AFB unit we supply,ensuring it meets original manufacturer specifications and operates reliably in industrial environments.Each unit undergoes comprehensive functional testing before shipment to verify performance,safety,and compatibility.We provide technical support for configuration,troubleshooting,and firmware upgrades to assist with seamless integration into your automation system.Our global logistics network ensures fast delivery and responsive after-sales service,giving you confidence in the long-term reliability and performance of the CACR-SR05BF1AFB.
