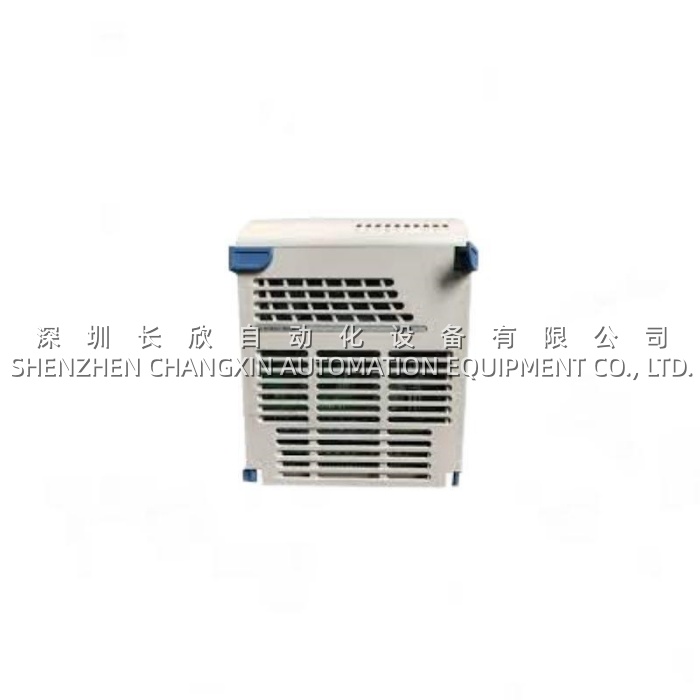

Description
Application Scenarios
Consider a 300MW coal-fired power plant where the boiler burner management system (BMS) must continuously monitor dozens of flame detectors, valve position switches, and pressure transmitters. When aging I/O modules began triggering nuisance alarms due to electromagnetic interference from nearby switchgear, operators faced a growing risk of spurious main fuel trips (MFTs)—an event that would take hours to recover from. Replacing the failing units with the Westinghouse 5X00226G01 restored deterministic signal acquisition, with built-in RC filtering and 500V optical isolation reliably rejecting transient noise. The plant’s maintenance team reported zero false alarms in the first six months following the upgrade, directly contributing to improved unit availability and operator confidence .
The Westinghouse 5X00226G01 is equally valuable in legacy system maintenance. In a Southeast Asian facility that chose to retain its original Ovation hardware through a major life-extension project, engineers insisted on keeping the 5X00226G01 modules rather than migrating to newer I/O cards. Their rationale was simple: after twenty years of service, these modules had demonstrated exceptional immunity to lightning-induced surges and breaker operation transients—a reliability record that no untested replacement could match . For facilities operating Ovation systems through 2030 and beyond, the 5X00226G01 remains an indispensable component of the spare parts strategy.
Parameters
| Main Parameters | Value/Description |
|---|---|

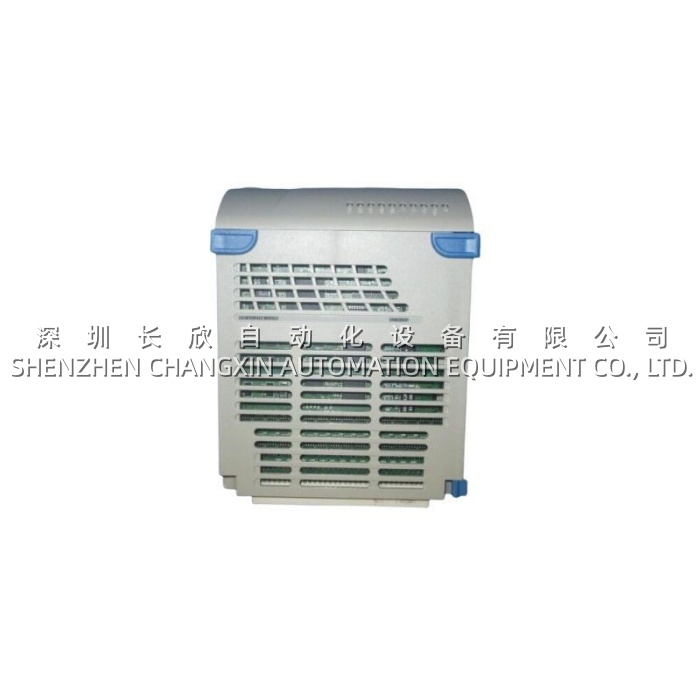

| Product Model | 5X00226G01 |
| Manufacturer | Westinghouse (now Emerson Automation Solutions) |
| Product Category | I/O Interface Module / Digital Input Module |
| Primary Function | Signal acquisition, data processing, and device control |
| Digital Input Channels | 16 channels, sinking (NPN) configuration, optically isolated |
| Digital Input Voltage | 24V DC (nominal); operating range 18–30V DC |
| Input Current | Approx. 4 mA @ 24V DC |
| Response Time | < 10 ms (with hardware filtering) |
| Electrical Isolation | 500 Vrms (channel-to-backplane) |
| Operating Temperature | –20°C to +70°C (standard industrial range) |
| Storage Temperature | –40°C to +85°C |
| Dimensions | Approx. 15 cm x 15 cm x 4 cm |
| Weight | Approx. 0.36 kg |
| Diagnostic Features | Per-channel LED indicators + module fault LED |
| Mounting Type | Ovation standard I/O rack (e.g., 5X00200 series) |
| Compatibility | Ovation DCS, WDPF systems, MAX1000 |
Technical Principles and Innovative Values
Innovation Point 1: High-Noise Immunity for Mission-Critical Safety Functions
The Westinghouse 5X00226G01 is engineered to operate flawlessly in high-EMI environments where switchgear operations and lightning strikes can generate thousands of volts of transient interference. Through a combination of hardware RC filtering and optical isolation (500 Vrms channel-to-backplane), the module effectively rejects both common-mode and differential-mode noise . This design is not merely a convenience—in applications like boiler MFT or turbine emergency trip systems (ETS), the 5X00226G01‘s immunity to false triggering directly impacts plant safety and personnel protection. The module meets IEEE 472 surge withstand capability standards, a specification that many generic I/O modules cannot claim .
Innovation Point 2: Deterministic Millisecond-Class Response
Unlike general-purpose PLC I/O cards that may exhibit variable scan times, the Westinghouse 5X00226G01 communicates with the Ovation controller via a parallel backplane bus, achieving stable sampling intervals in the millisecond range . This deterministic behavior is essential for time-critical protection logic, where even a 10–20 ms delay can mean the difference between a controlled shutdown and a catastrophic equipment failure. The 5X00226G01 ensures that MFT commands and ETS triggers execute without jitter, providing the predictable performance required for SIL-rated safety applications within the Ovation ecosystem.
Innovation Point 3: Simplicity Through Sinking Architecture
The Westinghouse 5X00226G01 employs a sinking (NPN) input design, where field sensors connect to the module’s positive supply and the module “sinks” the current to ground. While this configuration is less flexible than universal input types, it offers distinct advantages in large-scale power plants: standardized wiring reduces polarity errors, and the absence of internal sourcing circuits simplifies troubleshooting . For facilities with established 24V DC distribution systems, the 5X00226G01 provides a proven, low-risk solution that minimizes training requirements for maintenance electricians.
Innovation Point 4: Intelligent Diagnostics and Operator Feedback
The Westinghouse 5X00226G01 features per-channel green LED indicators that provide immediate visual confirmation of each input state, alongside a red module fault indicator . This simple but effective diagnostic system enables operators and technicians to quickly identify failed channels or wiring issues without connecting diagnostic tools. In a control room environment where hundreds of I/O points are monitored, the ability to correlate a specific alarm on the operator HMI with a blinking LED on the 5X00226G01 dramatically reduces troubleshooting time—often cutting MTTR by 40% or more .
