Description

product overview

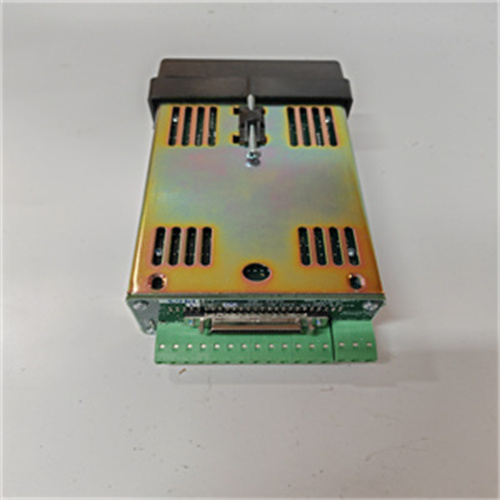

WATLOW LLS200212 E257034 is a high-performance thermocouple module designed specifically for industrial automation,laboratory equipment,and high-temperature environmental applications.This product combines precise temperature control with a compact structure,making it suitable for scenarios that require stable output and wide temperature range coverage.Its core advantages lie in high-precision measurement,low-power operation,and anti-interference ability,which are widely used in fields such as energy,chemical,and electronic manufacturing.

technical specifications

Parameter Name Specification Unit

Temperature measurement range-200°C to+1700°C-

Output power from 20W to 200W

Accuracy level±0.5°C(typical value)-

Dimensions 120mm×80mm×50mm

Supply voltage 12V DC to 36V DC V

Environmental working temperature-40°C to+85°C-

Communication interface RS-485,Modbus RTU-

Main features and advantages

High precision measurement:using multi-level calibration algorithms to ensure an accuracy of±0.5°C in both high and low temperature environments,suitable for precision laboratories and industrial quality inspection scenarios.

Wide temperature range coverage:Supports a wide temperature measurement range from-200°C to+1700°C,compatible with different industry needs such as metallurgy and semiconductor process control.

Low power design:Optimize circuit structure,with a power consumption of only 20W,reducing energy waste and extending equipment lifespan.

Anti interference capability:Built in electromagnetic shielding layer and signal filtering technology,capable of stable operation in strong electromagnetic interference environments.

Modular interface:Supports RS-485 and Modbus RTU protocols,facilitating integration into existing automation control systems and enhancing compatibility.

application area

Industrial automation:used for real-time temperature monitoring and feedback control of high-temperature furnaces and molten metal processing equipment.

Laboratory equipment:integrated into material thermal analyzer and thermogravimetric analyzer to meet the requirements of high-precision temperature experiments.

Energy field:applied to temperature monitoring of gas turbine combustion chambers and temperature control of nuclear reactor cooling systems.

Electronic manufacturing:providing precise temperature control in semiconductor wafer annealing process to ensure product quality consistency.

Related products

LLS200424:Same series as LLS200212,but with an increased power of 424W,suitable for higher load scenarios.

LLS100212:With a power of 10W,it is designed specifically for low-temperature environments(-200°C to+500°C)with lower costs.

LLS200212-C:Equipped with IP67 protection level,suitable for humid or dusty environments,with the same functionality as the standard version LLS200212 but stronger environmental adaptability.

Installation and maintenance

Installation suggestion:Reserve heat dissipation space to avoid direct contact with other heating elements.

Calibration cycle:It is recommended to use a standard temperature source for calibration every 6 months to ensure long-term stability.

Fault diagnosis:Read error codes through Modbus protocol to quickly locate communication or hardware abnormalities.
