Description

Application Scenarios:

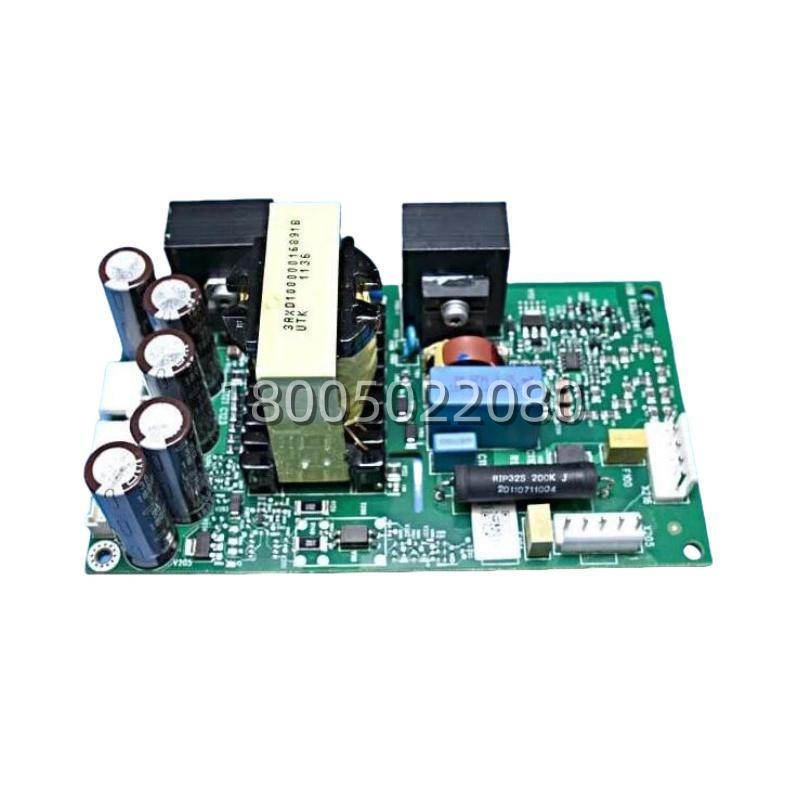

In a large HVAC system for a commercial high-rise, multiple fan and pump drives are essential for climate control. A critical chilled water pump driven by an ACS600 drive suddenly fails, causing a loss of cooling to several building floors. The service technician diagnoses a failure in the inverter section. The ABB ZPOW-591 Inverter Power Board is identified as the faulty component. This board houses the Insulated-Gate Bipolar Transistor (IGBT) power modules and their associated gate driver circuitry. A failure here, perhaps due to a voltage spike or thermal overstress, prevents the drive from generating the proper AC waveform for the motor. Replacing the entire drive is costly and time-consuming. Swapping in a new, genuine ABB ZPOW-591 board restores the inverter’s ability to synthesize the AC output, bringing the pump back online quickly. This scenario highlights the board’s role as the essential “muscle” of the drive, and its availability as a spare part is crucial for minimizing downtime and repair costs in critical infrastructure.

Parameter:

Main Parameter	Value / Description
Product Model	ZPOW-591
Manufacturer	ABB
Product Category	Inverter Power Stage / Power Board
Compatible Drive Series	Designed for ABB ACS600 series variable frequency drives.
Function	Main Inverter Stage. Converts DC bus voltage to variable AC output.
Power Components	Contains IGBTs (Insulated-Gate Bipolar Transistors) and associated gate drivers.
Current Rating	Specific to the drive frame size (e.g., for ACS601, ACS604 models of a given amp rating).
DC Bus Connection	Interface for the internal DC link voltage from the drive’s rectifier/brake unit.
Motor Output Terminals	Provides the U, V, W phase connections to the motor.
Thermal Management	Designed to be mounted onto the drive’s heatsink for efficient cooling of IGBTs.
Integrated Protection	Includes or interfaces with circuitry for short-circuit, overcurrent, and overtemperature protection.
Interface	Connects to the drive’s control board (e.g., a board like the ZCUI-01) for control signals.

Technical Principles and Innovative Values:

The ABB ZPOW-591 is the execution engine of the drive’s control algorithms, translating digital commands into physical motor power.

Innovation Point 1: Optimized IGBT Integration & Thermal Design: The board’s core innovation lies in its integrated power stage. It incorporates high-power IGBT modules and their dedicated, matched gate driver circuits on a single, robust board. The physical layout is meticulously designed for minimal parasitic inductance, which reduces voltage spikes during high-speed switching. This, combined with its design for direct mounting to a large heatsink, ensures efficient heat dissipation, maximizing the IGBTs’ lifespan and the drive’s overall reliability under heavy load cycling.
Innovation Point 2: Built-in Protection and Signal Isolation: The ZPOW-591 board incorporates critical protective features at the hardware level. The gate driver circuits typically include desaturation detection, a fast-acting method to shut down the IGBTs instantaneously in the event of a short circuit at the motor output. Furthermore, the board provides high-grade galvanic isolation between the low-voltage control signals from the main processor and the high-power switching circuits. This isolation is vital for protecting the sensitive control electronics from high-voltage transients, enhancing the overall ruggedness of the drive.
Innovation Point 3: Service-Oriented Modular Design: ABB’s design philosophy for the ACS600 series emphasizes serviceability. The ZPOW-591 board is constructed as a field-replaceable unit (FRU). In the event of a power stage failure, a technician can replace the ZPOW-591 board without needing to replace the entire drive chassis, control boards, or interface panels. This modularity drastically reduces mean time to repair (MTTR), lowers spare parts inventory costs (as only the failed module is replaced), and extends the operational life of the overall drive investment.
