Description

Product Overview

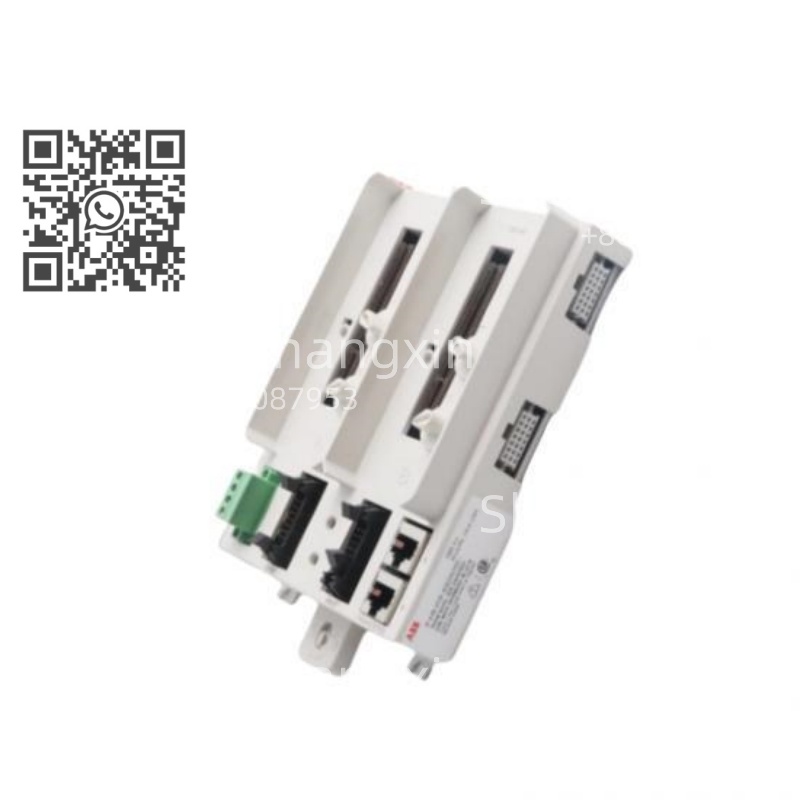

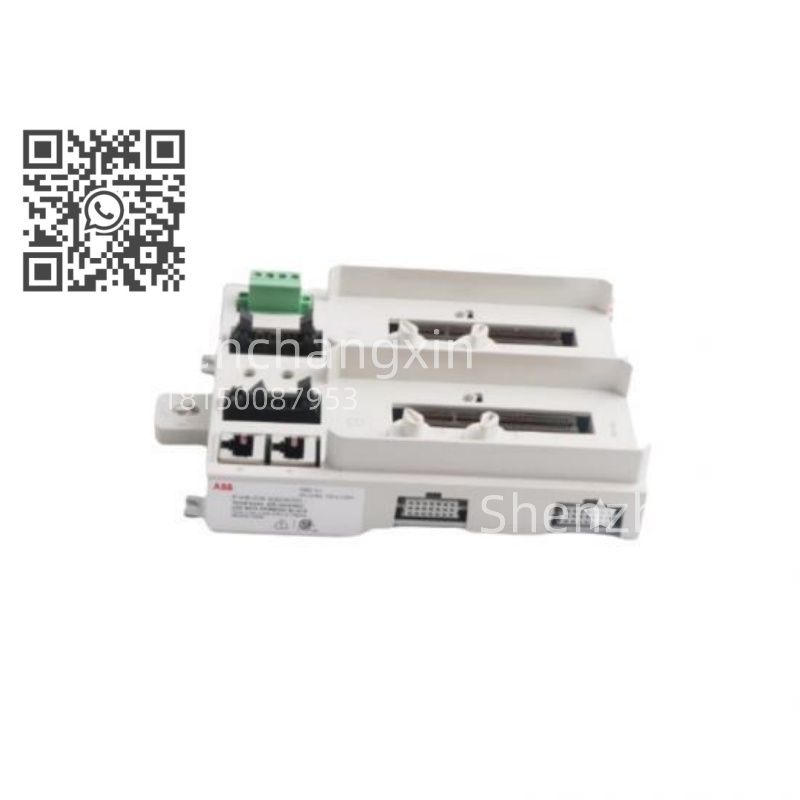

The ABB SPCJ4D34 is a compact and reliable digital output module designed for seamless integration into industrial automation systems,particularly as part of ABB’s AC500 programmable logic controller(PLC)family.This module serves as a critical interface between the control system and field devices,converting digital control signals into actionable outputs to operate valves,motors,solenoids,and other industrial actuators.Whether deployed in manufacturing lines,building automation,or process control environments,the ABB SPCJ4D34 delivers consistent performance in demanding operational conditions.

Featuring 8 relay outputs,the ABB SPCJ4D34 provides flexible control capabilities,supporting a wide range of load types and voltages.Its design emphasizes durability and ease of integration,with a compact form factor that optimizes space in control cabinets.What distinguishes the ABB SPCJ4D34 is its combination of robust relay technology,straightforward configuration,and compatibility with ABB’s automation ecosystem,making it a go-to choice for engineers seeking reliable digital output solutions.

Technical Specifications

Parameter Name

Parameter Value

Product Model

ABB SPCJ4D34

Manufacturer

ABB

Product Type

Digital Output Module(Relay)

Number of Output Channels

Output Type

Electromechanical relays

Maximum Switching Voltage

250V AC/30V DC

Maximum Switching Current

5A per channel

Control Voltage

24V DC±10%

Power Consumption

Max 3W

Operating Temperature

0°C to 60°C(32°F to 140°F)

Storage Temperature

-25°C to 70°C(-13°F to 158°F)

Dimensions

100mm x 80mm x 60mm(3.9″x 3.1″x 2.4″)

Weight

Approximately 0.25kg(0.55lbs)

Mounting

DIN rail(35mm)

Protection Class

IP20

Compatibility

ABB AC500 PLC series

Certifications

CE,UL,CSA

Main Features and Advantages

Versatile output capabilities:The ABB SPCJ4D34 features 8 independent relay outputs,each capable of switching up to 5A at voltages ranging from 30V DC to 250V AC.This versatility allows it to control diverse industrial devices,from low-voltage DC solenoids to high-voltage AC motors,eliminating the need for multiple specialized modules.

Robust relay design:Equipped with high-quality electromechanical relays,the ABB SPCJ4D34 delivers reliable switching performance with a long mechanical lifespan(up to 10 million operations).This durability ensures consistent operation in high-cycle applications like packaging machinery or material handling systems.

Compact and efficient:With its space-saving dimensions(100mm x 80mm x 60mm),the ABB SPCJ4D34 fits easily into crowded control cabinets,maximizing the use of available space.Its low power consumption(max 3W)reduces energy usage,making it suitable for energy-conscious installations.

Seamless integration:Designed specifically for ABB’s AC500 PLC series,the ABB SPCJ4D34 integrates effortlessly with the controller,simplifying system setup and reducing commissioning time.It communicates seamlessly with the PLC via the backplane,ensuring fast and reliable data exchange for real-time control.

Plug-and-play configuration:The module supports easy configuration through ABB’s Automation Builder software,allowing engineers to quickly set up output parameters and monitor channel status.This user-friendly approach minimizes training requirements and speeds up system deployment.

Diagnostic features:The ABB SPCJ4D34 includes built-in status indicators for each output channel,providing visual confirmation of relay operation.This simplifies troubleshooting,allowing maintenance teams to quickly identify issues like blown fuses or failed actuators.

Application Field

In manufacturing automation,the ABB SPCJ4D34 controls conveyor systems,robotic grippers,and assembly line actuators,providing precise on/off control for sequential production processes.Its ability to handle both AC and DC loads makes it ideal for mixed-technology production lines,reducing the number of modules required.

Building automation systems utilize the ABB SPCJ4D34 to manage lighting,HVAC dampers,and security locks.Its compact size and low power consumption make it suitable for installation in wall-mounted control panels,while its reliable relays ensure consistent operation of critical building services.

Food and beverage processing plants rely on the ABB SPCJ4D34 to control valves,pumps,and mixing motors.Its compliance with industrial certifications ensures it meets the hygiene and reliability standards required in food-safe environments,where equipment downtime can disrupt production schedules.

Water treatment facilities use the ABB SPCJ4D34 to operate valves and pumps in filtration and distribution systems.Its robust design withstands the harsh conditions of treatment plants,including temperature fluctuations and exposure to moisture,ensuring uninterrupted operation of water processing equipment.

Related Products

ABB SPCI4D34:A digital input module that complements the ABB SPCJ4D34 in AC500 systems,providing 8 digital inputs for monitoring sensors and switches.

ABB PM564-T:An AC500 PLC controller that pairs with the ABB SPCJ4D34 to form a complete control solution,offering powerful processing capabilities for complex automation tasks.

ABB SPDD16D3:A 16-channel digital output module with higher channel density than the ABB SPCJ4D34,suitable for applications requiring more outputs.

ABB SPCD34:A digital I/O combination module that works with the ABB SPCJ4D34 to provide mixed input/output capabilities in space-constrained installations.

ABB PS513-300:A power supply unit that provides stable 24V DC power to the ABB SPCJ4D34 and other AC500 components.

ABB TB511:A terminal block module that simplifies wiring connections between the ABB SPCJ4D34 and field devices,reducing installation time.

ABB AC500-eCo:A compact PLC series compatible with the ABB SPCJ4D34,ideal for small to medium-sized automation projects.

Installation and Maintenance

Pre-installation preparation:Before installing the ABB SPCJ4D34,ensure the DIN rail is securely mounted and properly grounded.Verify that the control voltage(24V DC)matches the power supply and that the supply is protected by a 1A fuse or circuit breaker.Check the wiring specifications for field devices,ensuring conductors are rated for the expected current(up to 5A per channel).Review the system layout to confirm compatibility with the AC500 PLC and other modules in the rack.

Maintenance recommendations:Periodically inspect the ABB SPCJ4D34 for loose connections,especially in vibration-prone environments,and tighten terminals as needed.Monitor the status LEDs to verify proper operation—illuminated LEDs indicate active outputs.Clean dust from the module using compressed air to prevent overheating.When replacing relays(if applicable),use only ABB-approved components to maintain performance and safety.For troubleshooting,use the Automation Builder software to check for communication errors between the PLC and ABB SPCJ4D34,and verify output signals with a multimeter if issues arise.

Product Guarantee

The ABB SPCJ4D34 is backed by a 2-year warranty covering manufacturing defects and ensuring compliance with published specifications.Our technical support team provides expert assistance for installation,configuration,and troubleshooting,helping to minimize downtime and ensure optimal performance.Each module undergoes rigorous testing,including voltage stress tests and environmental screening,to validate its reliability.We stand behind the quality of the ABB SPCJ4D34 and offer prompt replacement for covered issues,with priority support for critical applications.Our commitment to excellence ensures this digital output module delivers consistent,long-term performance in industrial automation systems.
