Description
Application Scenarios
A municipal water-treatment plant running an S7-300–based dosing control system had originally specified transistor-output DO modules for the chemical-pump contactor rack, which meant every 230 V AC contractor coil needed a 24 V DC interposing relay inside the panel—128 contractors across four dosing lines translated into two extra relay-terminal rows, crowded wiring, and a recurring failure point when panel temperature climbed above 45 °C in summer. During a phased MCC modernization, the integrator swapped the transistor DOs for 6ES7322-1HF01-0AA0 modules, whose relay contacts drive 230 V AC coils directly from the module with no interposing stage. Because the 6ES7322-1HF01-0AA0 groups its 8 outputs as 2 × 4 with 1500 V AC–tested opto-isolation, the PLC’s 5 V backplane stayed clean even with contactor flyback riding the same rack. Cable runs from rack to MCC are up to 300 m shielded, well within the module’s 1000 m spec. The retrofit shaved roughly 30% off cabinet footprint for that section, removed 64 interposing relays from the BOM, and the maintenance lead reported “zero coil-induced nuisance trips in the six months since cutover.” It’s exactly the kind of unglamorous win this module delivers—direct, dry-contact switching of AC loads from an S7-300 backplane.
Parameter

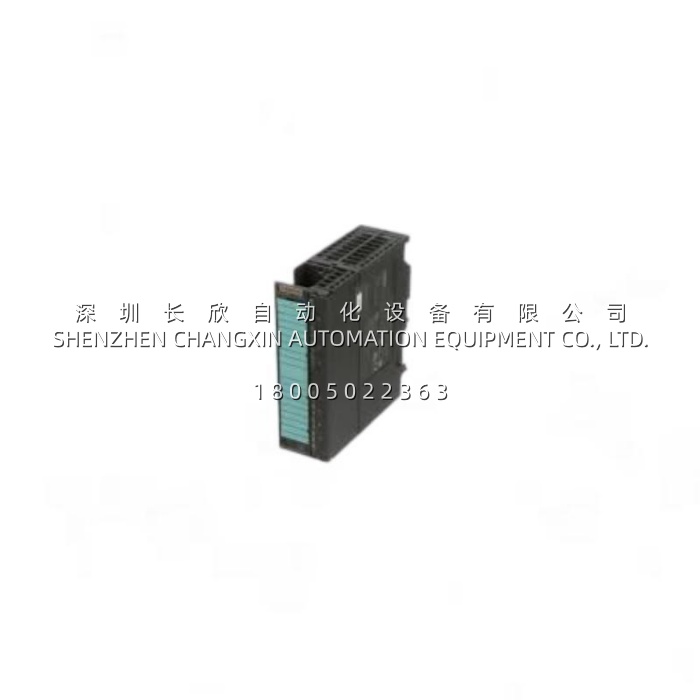

| Main Parameters | Value / Description |
|---|---|
| Product Model | 6ES7322-1HF01-0AA0 |
| Manufacturer | Siemens (SIEMENS AG) |
| Product Category | Digital Output Module (SM 322, S7-300 / ET200M) |
| Outputs | 8 DO, Relay (NO dry contact) |
| Rated Load Voltage | 24 V DC / 230 V AC |
| Output Current per Channel | 2 A (max); min. load 5 mA |
| Grouping / Isolation | 2 groups × 4 ch; group-to-group & backplane opto-isolated, tested 1500 V AC |
| Relay Coil Supply | 24 V DC, 110 mA (from L+) |
| Backplane Bus Current (5 V) | max. 40 mA |
| Typical Power Loss | 3.2 W |
| Switching Frequency | 2 Hz (resistive / lamp), 0.5 Hz (inductive), 10 Hz (mechanical) |
| Mechanical / Electrical Life | 10⁷ mechanical ops; ≈300 k (24 V DC / 2 A), 100 k (230 V AC / 2 A) |
| Cable Length | Shielded max. 1000 m, unshielded max. 600 m |
| Front Connector | 20-pin (ordered separately, e.g. 6ES7392-1BJ00) |
| Dimensions (W×H×D) | 40 × 125 × 120 mm (single slot, 3HE S7-300 rack) |
| Weight | approx. 190 g |
💡 Key annotation: This is a relay-output module, not transistor. It won’t do high-speed pulse (stepper/servo). If your application needs kHz-level switching, look at the transistor SM322 variants instead; the 6ES7322-1HF01-0AA0 is built for contactor/valve/solenoid/indicator duty at ≤2 Hz.
Technical Principles and Innovative Values
- Innovation Point 1 — Dry-Contact Relay Outputs That “Eat Anything”. The 6ES7322-1HF01-0AA0 uses passive NO relay contacts, meaning each channel can switch 24 V DC or 230 V AC loads without caring about sinking/sourcing type. In panels that mix 24 V DC solenoid valves and 230 V AC indicator beacons, one module type covers both—no separate transistor-DC and triac-AC modules, no interposing relays. That’s why panel builders love it for retrofit jobs where field-load variety was an afterthought in the original BOM.
- Innovation Point 2 — Groupwise Opto-Isolation with 1500 V AC Proof Test. Two groups of 4 channels sit behind independent optocouplers, and the entire output side is galvanically separated from the S7-300 backplane. The isolation is rated and tested at 1500 V AC—meaning a contactor-coil arc or a 230 V AC short-to-ground on one group won’t couple noise into the CPU or adjacent AI/AO modules. In VFD-heavy cabinets (where transistor DOs sometimes false-trigger from dv/dt), the 6ES7322-1HF01-0AA0 is often the safer choice purely for isolation headroom.
- Innovation Point 3 — ET200M Distributed I/O & Hot-Swap Ready. Beyond local S7-300 racks, the 6ES7322-1HF01-0AA0 seats in ET200M remote stations behind IM153 interface modules. With the proper active backplane (ET200M “H” or standard with IM153-2 HF), the module supports hot swapping—pull a faulty unit, seat the replacement, and the rack re-initializes without killing the whole station. For batch plants where a single DO rack serves 40+ valves, that’s the difference between a 5-minute swap and a 2-hour line restart.
- Innovation Point 4 — Per-Channel Status LED + 20-Pin Front Connector Ecosystem. Each of the 8 outputs has a green LED for “1” state, giving panel technicians instant visual without a PG. The 20-pin front connector (shared across the SM321/322/331/332 S7-300 family) means spare connectors, pre-wired ferrules, and labeling stock stay uniform across an entire S7-300 cabinet—small detail, big lifecycle saving.
- Innovation Point 5 — Honest Trade-Off Design. Siemens didn’t try to make this module something it isn’t. No wire-break diagnostics, no short-circuit detection, no fuse-blown flag—by stripping those, the 6ES7322-1HF01-0AA0 stays simple, cheap, and fast enough on the backplane that it doesn’t drag scan time. If you need diagnostics (load-voltage missing, wire break), Siemens offers the -1HF10 or -1HH01 variants with diagnostic coverage; the base -1HF01 is the “just switch it” workhorse.
