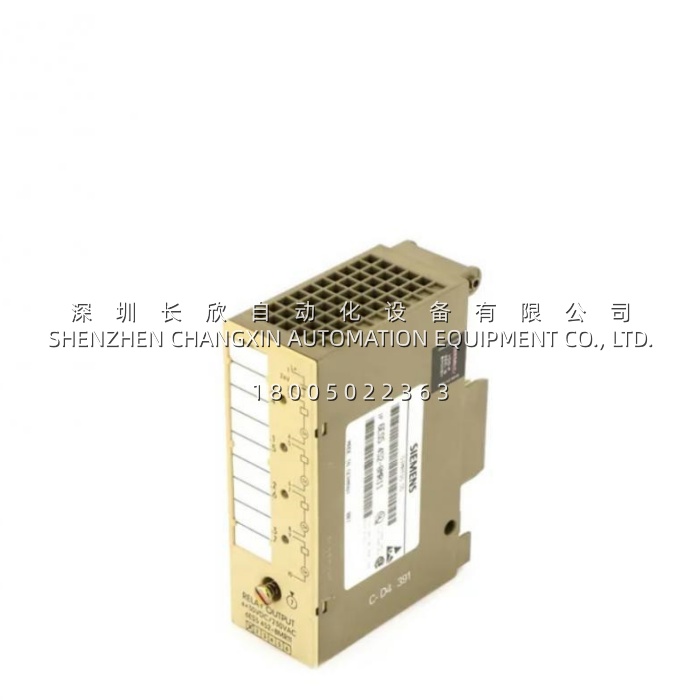

SIEMENS 6ES5452-8MR11 SIMATIC S5 Digital Output Module – 4 Relay Contacts 30V DC / 230V AC, Compact S5-90U/100U Spare

Product Overview

The 6ES5452-8MR11 is a digital output module from the Siemens SIMATIC S5 452 subseries, configured as a 4-channel relay output (4RO) variant with floating galvanic isolation between the S5 backplane logic and the field load side. Each channel provides an SPDT (single-pole double-throw) conversion contact—common (C), normally open (NO), and normally closed (NC)—giving the module 12 field terminals total (3 per relay) via the S5 front connector. Rated for 30 V DC / 230 V AC load switching, the 6ES5452-8MR11 is positioned for applications where the S5 CPU needs to drive AC coils, small contactors, indicator beacons, solenoid valves, or other loads that exceed the current/voltage envelope of a semiconductor DO, or where electrical isolation between logic and load is mandatory.The 6ES5452-8MR11 is explicitly targeted at the compact end of the S5 family: S5-90U, S5-95U, S5-100U local CPUs, as well as the distributed ET 100U and ET 200U stations that hang off S5-115U/135U/155U via Profibus IM interfaces. Its mechanical footprint matches the shorter S5 module form factor used in 90U/100U racks (which have fewer slots and tighter width budgets than a 115U/155U central rack), making it a natural DO choice when a compact CPU rack needs relay isolation without consuming the longer-format modules. Siemens has placed the 6ES5452-8MR11 into “End Product Lifecycle” status with no designated replacement—a common fate across much of the S5 450/451/452 relay-output subfamily—so the module today lives almost entirely in MRO, spare-stocking, and legacy-line extension contexts.Within the S5 452 series, the -8MR11 suffix codes the key traits: “8” = version for S5-90U/95U/100U/ET100U/ET200U, “M” = relay contact output, “R” = floating/isolated, “11” = standard S5 front-connector interface. The 6ES5452-8MR11 shares its electrical DNA with the more densely populated 6ES5451-8MR11 (8 relays in the same footprint), but trades channel count for backplane current savings—useful in 90U/100U racks where the CPU’s 5 V backplane budget is tight and 4 relays are enough for the local panel’s actuator set.

Category: FUJI

Contact Us WhatsApp / Wechat：+8618150087953
Phone：+86 18150087953
Email：sales@cxplcmro.com

Description

Technical Specifications

Parameter Name	Parameter Value
Product Model	6ES5452-8MR11
Manufacturer	Siemens
Product Type	Digital Output Module, Relay Contact (SIMATIC S5, 452 Series)
Number of Outputs	4 (SPDT / conversion contact per channel)
Output Voltage Rating	30 V DC / 230 V AC
Resistive Load Current	2.5 A @ 30 V DC, 5 A @ 250 V AC
Inductive Load Current	0.5 A @ 30 V DC, 1.5 A @ 250 V AC
Relay Type	Siemens V23127-D 0006-A402
Switching Frequency	≤ 10 Hz (resistive), derate for inductive
Galvanic Isolation	Yes – optocoupler + relay coil/frame isolation, floating design
Fault Indication	Red LED (no-load / missing load voltage indication)
Compatible Platforms	SIMATIC S5-90U, S5-95U, S5-100U, ET 100U, ET 200U
Ambient Temperature	0 … +60 °C horizontal mounting; 0 … +40 °C vertical
Net Weight	~0.23 kg (230 g)
Lifecycle Status	End Product Lifecycle – discontinued, no replacement designated
