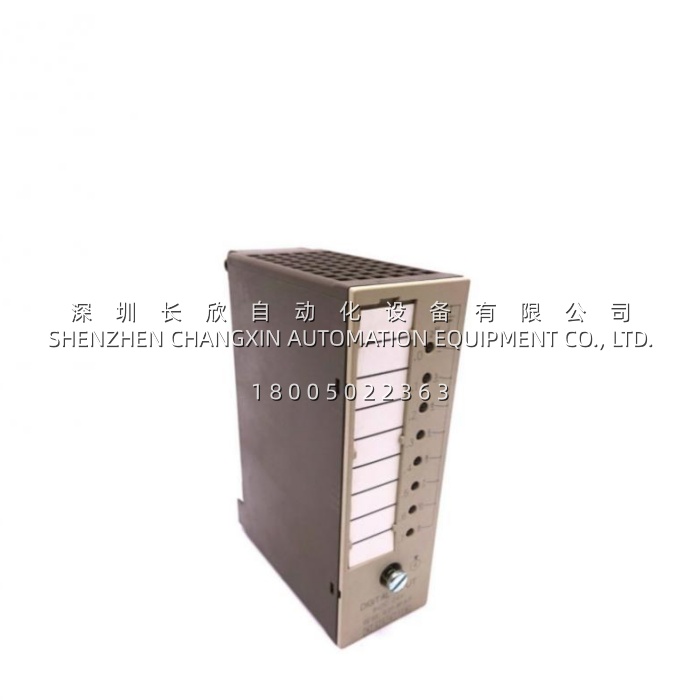

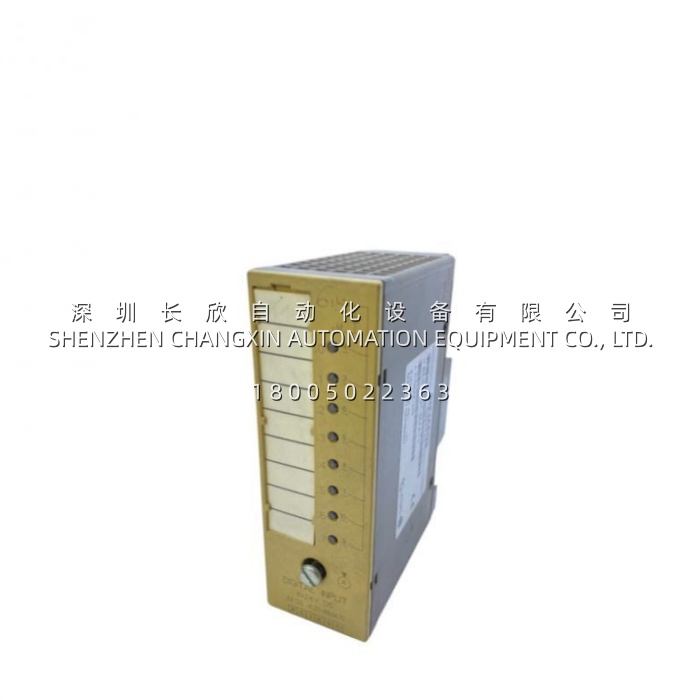

Siemens 6ES5431-8MA11 SIMATIC S5 8-Channel Floating Digital Input Module, 24V DC, Isolated

Product Overview

The 6ES5431-8MA11 is a galvanically isolated 8-channel digital input module belonging to Siemens’ legendary SIMATIC S5 series, engineered specifically for the S5-90U, S5-95U, S5-100U compact PLC platforms as well as the ET 100U and ET 200U distributed I/O stations. Designed to convert field-side switch status signals — from proximity switches, limit switches, pushbuttons, float switches, and selector switches — into logic-level states that the S5 CPU can process, the 6ES5431-8MA11 forms a critical signal-acquisition layer in countless legacy automation installations that remain in active production worldwide.Positioned within the S5-430/431 input module family, the 6ES5431-8MA11 differentiates itself through its floating (galvanically isolated) channel design, providing 1500 V AC isolation between input circuits and the system backplane. This isolation, combined with built-in transient and surge protection compliant with IEEE 472-1974 and ANSI C37.90A, makes the module especially well-suited to electrically noisy industrial environments such as motor control centres, heavy machinery cells, and process skids where ground potential differences and switching transients are common. Although Siemens placed the product on a discontinuation path (PLM status PM410, effective October 1, 2004, deleted without direct replacement), the 6ES5431-8MA11 remains in steady demand as a maintenance spare for plant operators who choose to extend the life of proven S5 installations rather than incur the cost and downtime of a full platform migration.Each input channel on the 6ES5431-8MA11 draws approximately 8.7 mA at 24 V DC for a logic “1” state, with the entire module consuming roughly 32 mA from the rack backplane bus and dissipating around 2 W. Front-panel LED indicators give technicians immediate visual confirmation of each channel’s status, streamlining commissioning and fault diagnosis on the shop floor. For automation engineers managing mixed S5 fleets, the 6ES5431-8MA11 represents a compact, thoroughly proven I/O building block whose mechanical footprint (111 × 139 × 55 mm packaged) and electrical behaviour are fully documented in Siemens S5 hardware manuals, ensuring straightforward integration into existing rack configurations.

Category: FUJI

Contact Us WhatsApp / Wechat：+8618150087953
Phone：+86 18150087953
Email：sales@cxplcmro.com

Description

Technical Specifications

Parameter	Value
Product Model	6ES5431-8MA11
Manufacturer	Siemens (SIEMENS AG)
Product Type	Digital Input Module (Isolated / Floating)
Series / Platform	SIMATIC S5 — compatible with S5-90U / 95U / 100U, ET 100U, ET 200U
Input Channels	8 (galvanically isolated, floating)
Rated Input Voltage	24 V DC
“1” Signal Input Current	~8.7 mA @ 24 V DC
Isolation Voltage	1500 V AC (channel-to-system, floating design)
Backplane Current Consumption	~32 mA (supplied via S5 rack bus)
Power Dissipation	~2 W
Operating Temperature	0 °C to +60 °C
Storage Temperature	–40 °C to +70 °C
Protection Standards	IEEE 472-1974, ANSI C37.90A (transient / surge)
Packaged Dimensions (L×W×H)	111 mm × 139 mm × 55 mm
Weight	0.20 kg
PLC Lifecycle Status	PM410 — Product cancelled (Oct 1, 2004), spare-part only, no official replacement
Commodity / EAN	HS 85389091 / EAN 4025515053576

Main Features and Advantages

Floating galvanic isolation for harsh electrical environments.The standout design element of the 6ES5431-8MA11 is its floating input architecture. Each input circuit is galvanically separated from the S5 backplane and from other channels, rated at 1500 V AC isolation. In plants where drive starters, large contactors, and welded-ground structures create ground-loop risks, this isolation prevents fault currents from propagating into the PLC rack — a frequent cause of spurious trips in non-isolated I/O designs.Transient and surge immunity built in.Beyond basic isolation, the 6ES5431-8MA11 incorporates protective circuitry that meets IEEE 472-1974 and ANSI C37.90A, the classic utility-grade standards for withstanding switchgear-induced transients. For maintenance engineers supporting older process lines or extrusion plants where contactor chatter and inductive kickbacks are routine, this compliance translates directly into fewer unexplained module failures.Field-side diagnostics via LED indicators.Each of the eight inputs has a dedicated front-panel LED, visible without removing the module from the rack. During troubleshooting on a live S5-90U or ET 200U station, an operator can confirm whether a limit switch or proximity sensor is actually delivering 24 V DC to the terminal, or whether the fault lies further upstream — cutting diagnostic time from hours to minutes.Backward compatibility across the compact S5 family.The 6ES5431-8MA11 slots directly into the local I/O racks of S5-90U, S5-95U, and S5-100U CPUs, and also operates as a remote I/O module behind an IM 318 / IM 338 interface in ET 100U and ET 200U configurations. This flexibility means a single spare SKU can serve multiple machine types across a plant that still runs a mixed S5 fleet, simplifying storeroom inventory.Low backplane load, predictable thermal profile.Drawing only ~32 mA from the S5 rack bus and dissipating ~2 W, the 6ES5431-8MA11 places minimal thermal stress on adjacent modules — important in dense S5-100U racks where power supplies and output modules already run warm. The conservative power envelope also means the module performs reliably at the upper end of its 0–60 °C operating band without derating.For asset managers extending S5 lifespans, the 6ES5431-8MA11 delivers a rare combination in the obsolescence market: fully characterised behaviour, plug-compatible with multiple S5 rack types, and a defensive electrical design that still exceeds what many modern low-cost I/O modules offer in terms of galvanic isolation and surge withstand.
