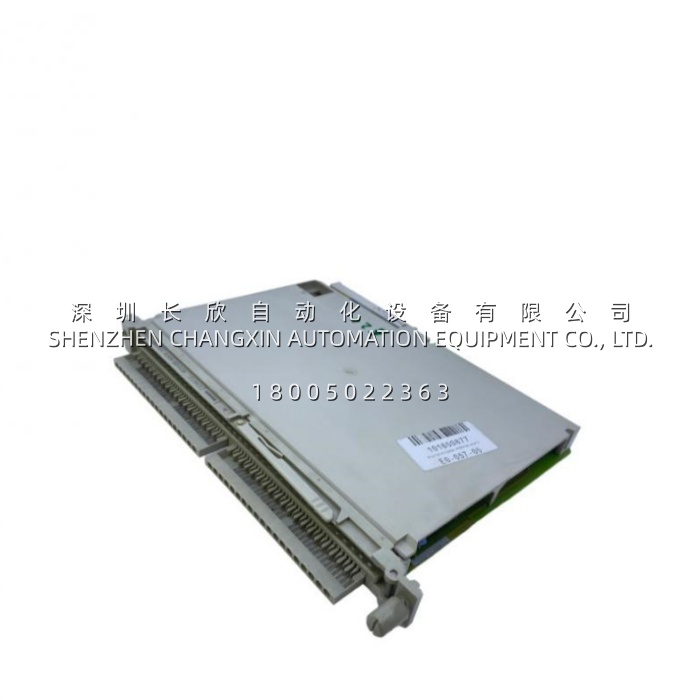

Siemens 6ES5430-4UA13 SIMATIC S5 Digital Input Module – 32-Channel 24V DC Isolated

Description

Application Scenarios

In a large automotive manufacturing plant, a body shop welding line with over 200 sensors required reliable digital signal acquisition to monitor conveyor positions, robot arm states, and safety interlocks. The control system, built on the Siemens S5-135U platform, needed a high-density input solution that could consolidate multiple field signals while maintaining electrical isolation. The engineering team deployed the Siemens 6ES5430-4UA13 to capture 32 discrete signals in a single module, reducing rack space requirements and simplifying wiring. The module’s galvanic isolation prevented electrical noise from welding equipment from corrupting backplane communications, ensuring uninterrupted production throughput. Post-implementation, the facility reported a 25% reduction in sensor-related downtime and simplified troubleshooting through the module’s LED status indicators.

For a chemical processing facility managing a legacy S5-155U control system for batch reactor operations, the 6ES5430-4UA13 proved essential when expanding monitoring to include additional valve position switches, pump status contacts, and level sensors. The module’s robust 24V DC compatibility with standard industrial sensors eliminated the need for external signal conditioners. Its ability to handle input cable lengths up to 1000 meters with shielded wiring allowed distributed sensor placement across the sprawling plant. The module’s floating design ensured reliable operation in the electrically noisy environment of motor control centers and variable frequency drives.
