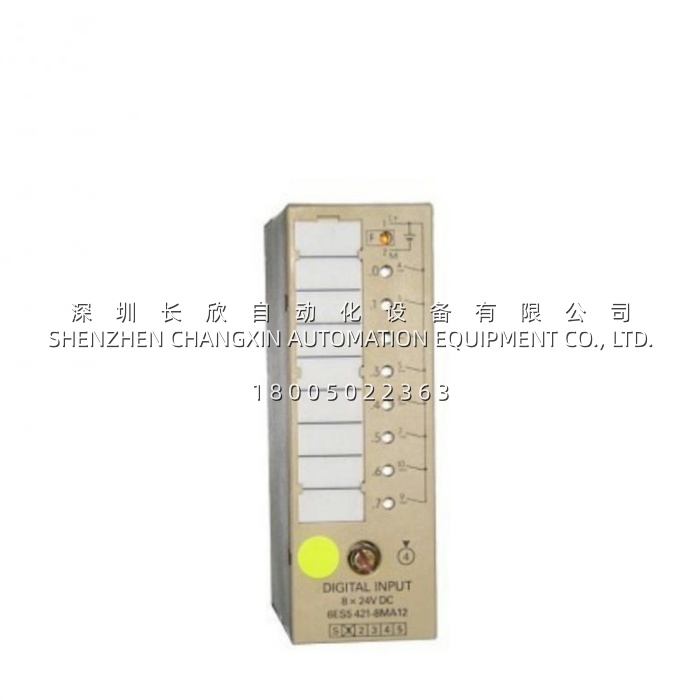

Application ScenariosA bottled-water filling hall in Southeast Asia still runs its depalletizer and conveyor interlock logic on an S5-100U (CPU 92-3UA11) rack mounted above the line electrician’s desk. The original DI population was split across two 6ES5421-8MA11 modules installed back in 1997—one handling 16 dry-contact signals (E-stop mushroom buttons, guard-door limit switches, photo-eye latches) and the other backing up spare points for future extensions that never came. After 22 years, one of the 8MA11s began showing intermittent LED flicker on Channel 9 during the humid monsoon weeks; the terminal contact resistance had drifted just enough that a 7 mA “1” signal from a dust-covered limit switch occasionally read as “0,” causing two nuisance line holds in a single month. The plant swapped the suspect unit for a 6ES5421-8MA12—identical addressing, no STEP 5 change, same 15–30 V DC envelope, but with later-batch terminal plating that resists the oxidation the old 8MA11 had succumbed to. Three monsoons later, zero flicker events. The pain point the 6ES5421-8MA12 solved wasn’t “more features”—it was “drop-in reliability on a 24 V non-isolated DI where the rack only has so many slots.”h2
Parameter
| Main Parameters | Value/Description |
|---|---|
| Product Model | 6ES5421-8MA12 |
| Manufacturer | Siemens (SIMATIC S5 series) |
| Product Category | Digital Input Module, 16-channel |
| Input Voltage | 24 V DC nominal (15…30 V DC operating range) |
| Input Current | “1” signal 7…10 mA / “0” signal ≤ 1 mA |
| Response Time | ≤ 10 ms (0→1 and 1→0) |
| Isolation | Non-isolated (no channel-to-channel galvanic separation; module-to-backplane weak isolation only) |
| Status Indication | 16 × per-channel LEDs (on = “1”) |
| Compatible Racks | S5-90U, S5-95U/F, S5-100U, ET100U, ET200U |
| Power Dissipation | approx. 2.5 W; backplane bus current ≤ 40 mA |
| Operating Temp. | 0 °C … +60 °C (storage –25 °C … +70 °C) |
| Protection / Mount | IP20, S5 rack-mountable, approx. 0.32 kg |
h2 Technical Principles and Innovative Values
- Innovation Point 1: Small-Frame Density Without Isolation Overhead. The 6ES5421-8MA12 packs 16 × 24 V DC sink inputs into a single S5 slim module—no channel-to-channel opto-isolation, which keeps the part count low and the backplane power draw at ≤ 40 mA. In S5-90U / 100U racks where slot count is precious, this density matters; if your field side already shares a common 0 V (typical for PNP sensor clusters on a machine), the non-isolated architecture is not a compromise, it’s the right fit.

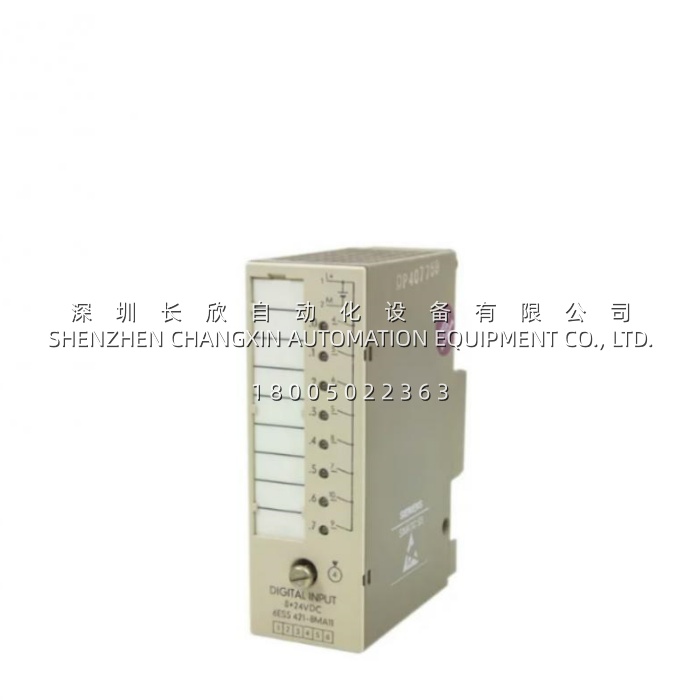

- Innovation Point 2: 8MA12 as the Later-Batch Drop-In for 8MA11. Electrically and logically, the 6ES5421-8MA12 and 8MA11 are 100 % interchangeable—same I/O address decoding, same 7–10 mA sinking profile, same terminal footprint. The 8MA12 is simply the later production run with more stable component sourcing and improved terminal anti-oxidation plating. For stores teams managing “like-for-like” S5 spares, stocking 8MA12 covers both itself and any 8MA11 call-out.
- Innovation Point 3: Per-Channel LED + ≤10 ms for Discrete Event Capture. Each of the 16 inputs has its own front-panel LED, visible without pulling the rack out of the cabinet. At ≤ 10 ms response, the 6ES5421-8MA12 comfortably catches button presses, guard-door trips, and photocell transitions on packaging and conveying lines where the S5-100U CPU scan is typically 5–15 ms—meaning the DI latency never becomes the bottleneck.
