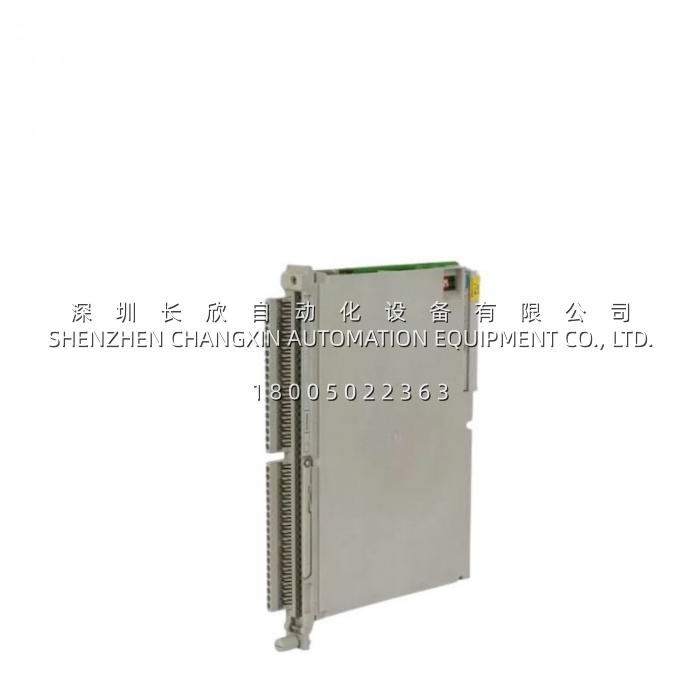

SIEMENS 6ES5420-4UA12 SIMATIC S5 Digital Input Module with 32 Channels 24V DC

Product Overview

The SIEMENS 6ES5420-4UA12 is a high-density digital input module from the SIMATIC S5 family, designed to interface field devices such as sensors, switches, and pushbuttons with programmable logic controller (PLC) systems. This module provides 32 non-floating digital input channels, each operating at a nominal 24V DC voltage, making it suitable for a wide range of industrial sensing and monitoring applications. The SIEMENS 6ES5420-4UA12 is specifically designed for use with SIMATIC S5-115U, S5-135U, S5-150U, and S5-155U controllers, serving as an essential signal conditioning component that adapts external digital signals to the internal logic level of the automation system .

As part of the SIMATIC S5 digital input module series, the SIEMENS 6ES5420-4UA12 represents a significant evolution from its predecessor, the 6ES5420-4UA11. Key enhancements include the introduction of a jumper-configurable enable input (F+/F-), allowing the module to be accessed via the S5 backplane bus even when the enabling input signal is absent . This feature provides greater flexibility in system configuration and simplifies integration by eliminating the mandatory connection of an enabling signal to each module. The SIEMENS 6ES5420-4UA12 is designed as a spare part for maintaining and repairing existing SIMATIC S5 installations rather than for new system deployments . Its compact version design saves valuable control cabinet space, while the non-floating (non-isolated) input configuration simplifies wiring and reduces overall system costs in applications where galvanic isolation between inputs is not a primary requirement.

Category: FUJI

Contact Us WhatsApp / Wechat：+8618150087953
Phone：+86 18150087953
Email：sales@cxplcmro.com

Description

Technical Specifications

Parameter Name	Value
Product Model	SIEMENS 6ES5420-4UA12
Manufacturer	Siemens
Product Type	Digital Input Module
Platform	SIMATIC S5
Number of Inputs	32 channels
Input Voltage	24V DC
Input Type	Non-floating (non-isolated)
Input Current	8.5 mA (typical)
Form Factor	Compact version
Compatibility	S5-115U, S5-135U, S5-150U, S5-155U
Enable Input	Configurable via jumper (F+/F-)
Status Indicators	LED per input channel
Operating Temperature	-25°C to +60°C
Connection Type	Spring-loaded terminal block
Dimensions	Approx. 254 x 20 x 195 mm
Weight	Approx. 0.4 – 0.49 kg
Certifications	CE, UL, CSA

Main Features and Advantages

High-Density 32-Channel Input Configuration: The SIEMENS 6ES5420-4UA12 offers 32 digital input channels, enabling connection of a large number of field devices within a single module footprint. This high-density design reduces the overall number of modules required in a control cabinet, saving valuable panel space and minimizing system complexity. Each channel of the SIEMENS 6ES5420-4UA12 is equipped with an LED status indicator, providing immediate visual feedback on the state of each input to simplify troubleshooting and maintenance activities .

Jumper-Configurable Enable Input: A distinguishing feature of the SIEMENS 6ES5420-4UA12 is the jumper-controlled enable input capability located near the address switch. When the enable jumper is removed, the SIEMENS 6ES5420-4UA12 can be accessed via the S5 backplane bus regardless of whether the enabling input F+/F- carries a signal, making it no longer mandatory to connect an enabling signal to every module . This enhancement provides greater flexibility in system design and simplifies field wiring requirements, reducing installation time and material costs.

Non-Floating Design for Simplified Wiring: The SIEMENS 6ES5420-4UA12 features non-floating (non-isolated) input architecture where all 32 inputs share a common ground reference. This design approach simplifies cabling, reduces component costs, and streamlines installation, making the SIEMENS 6ES5420-4UA12 particularly well-suited for applications where galvanic isolation between inputs is not required . The module’s spring-loaded terminal block connection system enables fast and secure wiring, further facilitating efficient installation and maintenance.

Robust Industrial-Grade Construction: Built to withstand demanding industrial environments, the SIEMENS 6ES5420-4UA12 operates reliably across an extended temperature range of -25°C to +60°C . The module meets rigorous international safety standards including CE, UL, and CSA certifications , ensuring compliance with global regulatory requirements. As a direct replacement for the 6ES5420-4UA11, the SIEMENS 6ES5420-4UA12 is 100% compatible and provides an enhanced feature set while maintaining full interoperability with existing SIMATIC S5 systems .
