Description
Application Scenarios
In a large automotive assembly plant, dozens of conveyor systems, robotic workstations, and material handling units generate hundreds of digital signals that must be reliably captured by the central PLC. The engineering team chose the Siemens 6ES5420-3BA11 to consolidate these signals, leveraging its 32-channel capacity to reduce the number of modules required and simplify system architecture. The module’s 24V DC compatibility with standard industrial sensors eliminated the need for external signal conditioners, significantly streamlining installation while the LED status indicators provided immediate visual feedback for rapid troubleshooting during production start-ups .
For a wastewater treatment facility operating a legacy S5-135U control system, the 6ES5420-3BA11 proved essential when expanding monitoring capabilities to include additional level switches and flow sensors. The module’s robust industrial-grade design ensured reliable operation in the facility’s harsh, moisture-laden environment, while its pluggable terminal connections simplified maintenance and sensor replacement without disrupting the entire control rack .
Parameters
| Main Parameters | Value / Description |
|---|---|

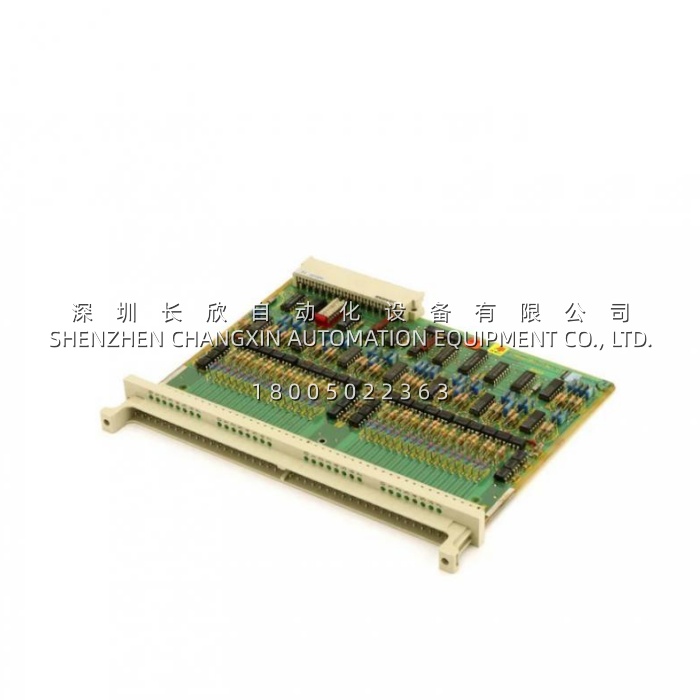

| Product Model | Siemens 6ES5420-3BA11 |
| Manufacturer | Siemens (SIMATIC S5 Series) |
| Product Category | Digital Input Module (Compact Version) |
| Number of Inputs | 32 channels |
| Input Voltage | 24 V DC |
| Isolation Type | Non-isolated (channel-to-bus) |
| Compatible Series | SIMATIC S5-130/150, S5-135U, S5-155U |
| Form Factor | Compact Version |
| Operating Temperature | 0 °C to +60 °C |
| Weight | Approx. 0.4 kg (0.88 lbs) |
| Dimensions (approx.) | 130 mm x 125 mm x 80 mm |
| Supply Voltage | 24V DC (from PLC backplane bus) |
Technical Principles and Innovative Values
- High Channel Density: The Siemens 6ES5420-3BA11 offers 32 input channels in a compact module footprint, maximizing I/O capacity per rack slot. This density is particularly valuable in space-constrained control cabinets, reducing the total number of modules and power supplies required for large-scale automation systems.
- Non-Isolated Architecture: Unlike optically isolated modules, the 6ES5420-3BA11 employs a non-isolated design with a common reference potential for all 32 inputs. This architecture reduces component complexity and cost while maintaining reliable performance in applications where electrical isolation is not a critical safety requirement .
- 24V DC Industrial Compatibility: Standardized at 24V DC, the Siemens 6ES5420-3BA11 directly interfaces with a vast ecosystem of industrial sensors, switches, and actuators without requiring voltage level conversion . This universal voltage standard ensures broad compatibility across diverse automation applications.
- Rapid Response with LED Diagnostics: The module delivers millisecond-level response times essential for real-time control applications . Each input channel features dedicated LED status indicators, enabling field technicians to instantly verify signal presence and quickly identify wiring or sensor faults without test equipment .
