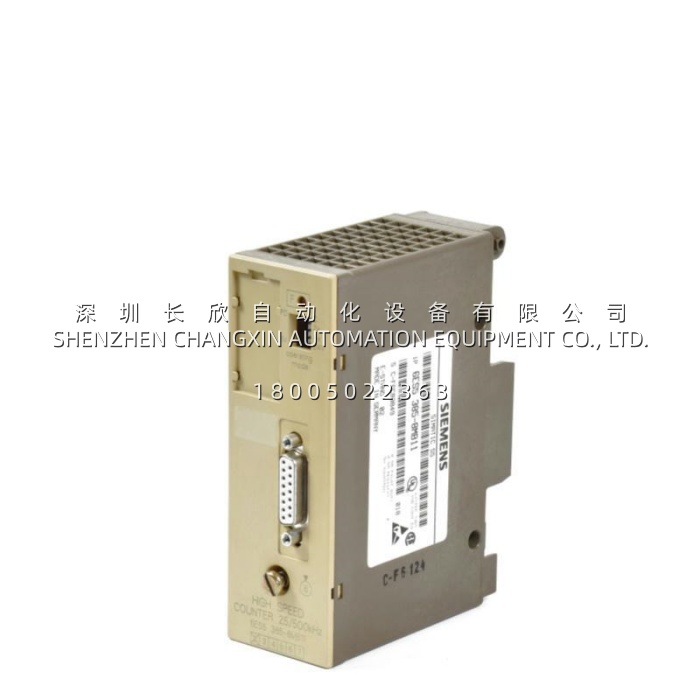

Siemens 6ES5385-8MB11: 500 kHz High-Speed Counter Module for SIMATIC S5-100U

Description

Application ScenariosA corrugated cardboard converting line in Northern Italy had been running a S5-100U (CPU 92-3UA11) to coordinate the feeder, slotter, and stacker sections. The original design used standard 24 V digital inputs to capture the main drive encoder pulses for cut-length synchronization—but at line speeds above 180 m/min, the S5 scan cycle (roughly 10 ms) started missing pulses, leading to “short-cut” and “long-cut” rejects that averaged €4,200/week in wasted board. The integrator replaced the generic DI approach with a 6ES5385-8MB11​ plugged into the 100U expansion slot, wired to the existing 5 V differential encoder via the 15-pin D-sub. Suddenly the counter ran at the encoder’s native 320 kHz without loading the CPU scan at all; the two onboard setpoint outputs (Q0/Q1) triggered knife actuation directly from the hardware comparator, shaving 6 ms of jitter out of the cut window. The plant’s chief electrician put it succinctly: “The 6ES5385-8MB11​ did in hardware what we were trying to fake in STEP 5.”The pain point it solved was classic S5-era: when your process outruns the PLC scan, you don’t rewrite ladder—you offload the pulse train to a counter submodule.h2

Parameter

• Innovation Point 1: Hardware-Level Counting Independent of CPU Scan.​ The 6ES5385-8MB11​ captures edges in a dedicated front-end ASIC, not in the S5 scan cycle. A 5 V RS-422 differential input can lock onto 500 kHz encoder streams (equivalent to a 10,000 ppr encoder at 3,000 rpm) while the CPU 92 continues executing ladder at its own pace. The current count and diagnostic byte are fetched by the STEP 5 program over the I/O bus only when needed, keeping bus traffic minimal.
• Innovation Point 2: Dual Mode — Position Decoder (PD) or Counter (C).​ Via the rotary DIP switch on the module face, the 6ES5385-8MB11​ can be flipped from pure up/down counting into a position-decoder mode that understands A/B/Z quadrature and reference pulses. Two setpoint comparators (SP1, SP2) drive the onboard DO terminals directly—meaning “reach position → fire output” happens in silicon, not in ladder logic, eliminating scan-induced timing drift.
• Innovation Point 3: 5 V Decoder Power Sourced from L+ Internally.​ The 6ES5385-8MB11​ includes an internal voltage transformer that derives the 5 V encoder supply from the 24 V L+ rail (max. 300 mA for the decoder), so you don’t need a separate 5 V PSU on the panel for RS-422 encoders. That simplifies wiring on retrofits where the original panel only had 24 V distributed.

h2 Application Cases and Industry ValueIn a plastic film biaxial stretching line (South China), the S5-100U controlled draw-roll speed matching across six zones. The original design used a 6ES5385-8MB11​ on Zone 3 to count the tachometer pulses from a 2,500 ppr incremental encoder on the chill-roll shaft at ~280 kHz. When the line was upgraded from 280 m/min to 380 m/min, the engineering team checked whether the submodule would become the bottleneck—it didn’t. The 6ES5385-8MB11​ still had ~44 % headroom at 500 kHz, and the two setpoint outputs continued to trigger the nip-load relief valve at ±0.12% positional tolerance. Over a 5-year window the plant reported zero counter-related drift incidents; the only maintenance action was reseating the 15-pin D-sub once after a vibratory motor mount loosened (the red short-circuit LED caught a stray ground before anything fried).For asset managers, the value proposition is straightforward: the S5-100U itself may be “obsolete,” but the 6ES5385-8MB11​ keeps high-speed positioning applications alive without a full DCS migration—at roughly 3% of the cost of replacing the whole bay.
