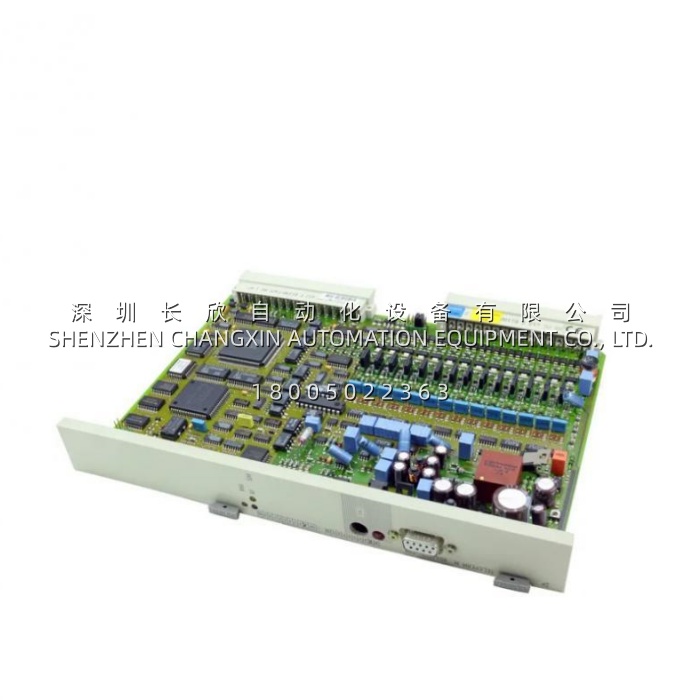

Siemens 6DS1722-8RR Analog Module

Product Overview

The Siemens 6DS1722-8RR is a high-performance 8-channel analog input module designed for the Siemens Teleperm M and Teleperm ME distributed control systems (DCS). This module serves as the primary interface between field instrumentation and the process controller, converting analog process signals—such as temperature, pressure, flow rate, and level measurements—into precise binary values for central processing unit evaluation. The Siemens 6DS1722-8RR is a critical sensing component that ensures accurate, reliable data acquisition in continuous process control applications.

Installed in the automation station (AS) rack of the Teleperm M system, the Siemens 6DS1722-8RR acquires signals from up to eight transducers simultaneously. The binary values generated by the module are stored in a transfer memory, from which the central unit retrieves them for further processing and control logic execution . The module supports a comprehensive range of input signal ranges, including 0…20 mA, 4…20 mA, 0…+1 V, and 0…+10 V, providing exceptional flexibility for diverse field instrument types . The Siemens 6DS1722-8RR also supplies power for two-wire and four-wire transducers, and supports HART-capable devices without affecting measured signal integrity .

The Siemens 6DS1722-8RR has been widely deployed in legacy process control installations worldwide. Although the Teleperm M platform has been superseded by newer architectures like PCS 7, the Siemens 6DS1722-8RR remains an essential spare part for countless power generation facilities, chemical plants, and oil refineries that continue to rely on their tried-and-tested Teleperm M systems . The module’s robust, industrial-grade circuitry is engineered for continuous, long-term operation in demanding environments where component failure could result in costly downtime .

Category: FUJI

Contact Us WhatsApp / Wechat：+8618150087953
Phone：+86 18150087953
Email：sales@cxplcmro.com

Description

Technical Specifications

Parameter Name	Parameter Value
Product Model	6DS1722-8RR
Manufacturer	Siemens
Product Type	Analog Input Module
System Platform	Teleperm M / Teleperm ME
Input Channels	8 analog channels
Input Signal Ranges	0…20 mA, 4…20 mA, 0…+1 V, 0…+10 V
Input Voltage Range	±10V
Input Current Range	0/4-20mA
A/D Resolution	12-bit or 14-bit (variant-dependent)
Conversion Time	< 10 ms per channel
Sampling Rate	Up to 1 kHz per channel
Transducer Power Supply	Supports 2-wire and 4-wire transducers
HART Support	Yes (pass-through)
Isolation	Input-side to system-side: 500V AC test voltage; inputs not isolated from each other
Power Supply	24V DC (20.4V – 28.8V range)
Power Consumption	Approx. 4.0W (excluding load)
Operating Temperature	0°C to +60°C
Storage Temperature	-20°C to +70°C
Relative Humidity	5% to 95% (non-condensing)
Protection Class	IP20
Mounting Type	Proprietary Teleperm M subrack / backplane slot
Dimensions	120 mm x 100 mm x 75 mm (approx.)
Weight	0.46 kg (approx.)
Product Status	Discontinued (legacy spare)

Main Features and Advantages

Precision Signal Acquisition and Conversion: The Siemens 6DS1722-8RR is engineered with high-quality A/D conversion circuitry delivering accurate signal linearity across all eight channels. The module handles both current and voltage input signals, including 0…20 mA, 4…20 mA, 0…+1 V, and 0…+10 V ranges, making the Siemens 6DS1722-8RR compatible with a wide variety of industrial field instruments . The internal digital filtering and linearization algorithms ensure clean, stable data for the central processor, which is particularly critical for temperature and pressure regulation loops requiring rapid response times .

Superior Noise Immunity and Robust Construction: Industrial environments are notorious for electromagnetic interference from variable frequency drives and heavy motors, but the Siemens 6DS1722-8RR rises to this challenge with robust circuit design and optoelectronic isolation. The inputs are isolated from the system ground with 500V AC test voltage, effectively eliminating ground loop interference and protecting the control system from high-voltage transients . The module’s conformal-coated PCB and industrial-grade components ensure reliable operation even under high temperature and humidity conditions, contributing to the legendary durability of Teleperm M system components .

Versatile Field Instrument Integration: A standout feature of the Siemens 6DS1722-8RR is its ability to supply power for both two-wire and four-wire transducers directly through the module . This eliminates the need for external power supplies for many field devices, simplifying cabinet wiring and reducing installation costs. Additionally, the Siemens 6DS1722-8RR supports HART-capable transducers on a pass-through basis, allowing digital communication with smart instruments without compromising the analog measurement signal . This flexibility makes the Siemens 6DS1722-8RR an invaluable asset for system modernization projects where HART devices are gradually introduced into legacy infrastructure.

Comprehensive Diagnostics and Fault Indication: The Siemens 6DS1722-8RR features front-panel LED indicators that provide clear, real-time diagnostic feedback on module health, channel status, and system communication . Built-in wire break detection (open-circuit detection) immediately reports sensor failures to the central unit, preventing erroneous control decisions based on corrupted data . Maintenance engineers can quickly identify and isolate channel faults, significantly reducing troubleshooting time and improving overall system availability.
