Application Scenarios

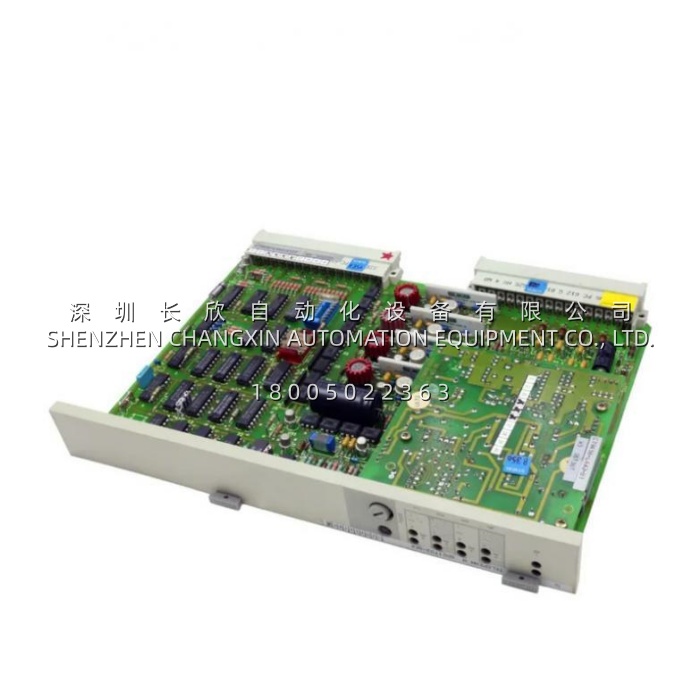

In a 500 MW coal-fired power plant in Eastern Europe, the boiler wall temperature monitoring system relied on a Teleperm M rack installed in the late 1990s. After 25 years of service, two of the original temperature input modules began showing intermittent cold-junction drift, triggering unnecessary alarm cascades during peak load. The engineering team needed a drop-in replacement that would not require re-cabling or reconfiguring the entire AS 230 automation station. By installing the 6DS1703-8AB, they restored full 14-channel thermocouple coverage across the superheater zones without a single line of logic change—the module’s Teleperm M backplane protocol is fully backward-compatible. The key pain point solved here was “obsolescence risk”: with Teleperm M long discontinued, the 6DS1703-8AB acts as a lifeline that lets plants extend asset life by another 10–15 years instead of committing to a multi-million-euro DCS migration. Every time a new 6DS1703-8AB is slotted into these aging racks, it quietly keeps turbines, reactors, and distillation columns running safely.
Parameter
| Main Parameters | Value/Description |
|---|---|
| Product Model | 6DS1703-8AB |
| Manufacturer | Siemens AG |
| Product Category | Measuring Point Extension Module (Temperature) |
| System Family | Siemens Teleperm M |
| Input Channels | 14 measurement points |
| Sensor Support | Thermocouples (TC) and/or Pt100 resistance thermometers |
| Communication Protocol | Profibus DP / Teleperm M backplane bus |
| Operating Voltage | 12 V DC (backplane powered) |
| Operating Temperature | -20 °C to +60 °C |
| Weight | 0.320 kg |
| Dimensions (H×W×D) | approx. 140 × 110 × 100 mm |
| Certifications | CE, UL, CSA, IEC |
Technical Principles and Innovative Values
- Innovation Point 1: Dual-Sensor Flexibility per Rack. The 6DS1703-8AB allows mixed loading of thermocouples and Pt100 sensors across its 14 channels without requiring separate daughtercards. This was ahead of its time in the Teleperm M era, letting engineers monitor both high-temp flue-gas TC strings and low-temp lube-oil Pt100 loops from a single module slot.
- Innovation Point 2: Integrated Cold-Junction Compensation Logic. Rather than relying solely on external compensation cables, the 6DS1703-8AB incorporates onboard cold-junction reference tied to the Teleperm M rack ambient, reducing wiring complexity in distributed boiler skids where field junction boxes sit far from the control cabinet.
- Innovation Point 3: Backplane-Optimized Data Packeting. On the Profibus/Teleperm M bus, the 6DS1703-8AB packets all 14 channels into a single cyclic telegram, minimizing bus load compared to newer generic remote-I/O blocks that would burn 14 individual diag words. For legacy AS 230/235 CPUs already near their process-object limit, this efficiency matters.
