Technical Specifications

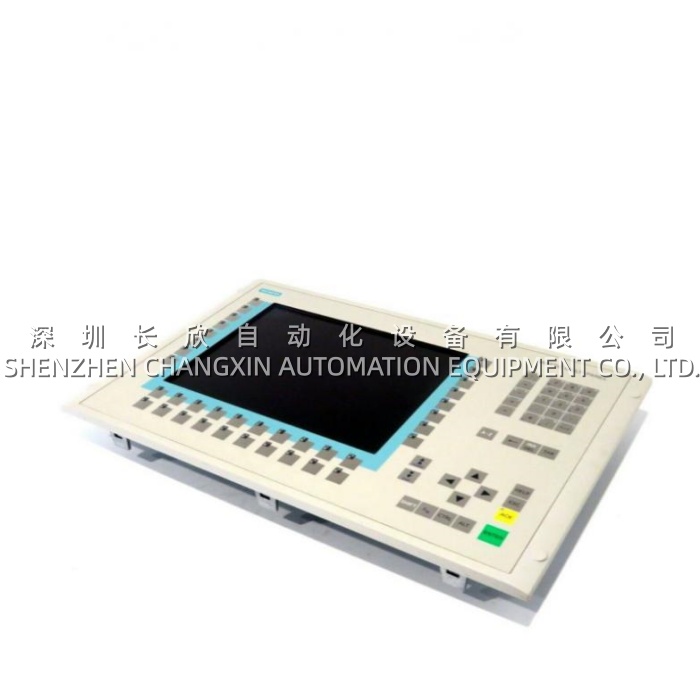

| Parameter Name | Value |
|---|---|
| Product Model | 6AV6542-0DA10-0AX0 (also 6AV6 542-0DA10-0AX0) |
| Manufacturer | SIEMENS |
| Product Type | SIMATIC MP370 Multi Panel (Key-operated) |
| Display Size | 12.1 inches |
| Display Type | TFT Color, 256 colors |
| Display Resolution | 800 x 600 pixels (SVGA) |
| Operating System | Microsoft Windows CE 3.0 |
| Processor | 64-bit RISC |
| User Memory | 6 MB (7 MB usable for project data) |
| Operation Type | Key-operated with onscreen alphanumeric keyboard |
| Function Keys | 36 programmable, with LEDs |
| System Keys | 38 total |
| Supply Voltage | DC 24 V (permissible range: 20.4 to 28.8 V) |
| Rated Current Consumption | 1.15 A |
| Power Consumption | Approx. 28 W |
| Backup Battery | Optional 3.6 V |
| Interfaces | MPI, PROFIBUS DP, Ethernet, USB, RS232, RS422/RS485, TTY |
| Memory Expansion | 1 PC card slot, 1 CF card slot |
| Protection Class (Front) | IP65 |
| Protection Class (Rear) | IP20 |
| Front Panel Dimensions (W x H) | 483 x 310 mm (key version) |
| Cutout Dimensions (W x H x D) | 450 x 290 x 59 mm |
| Weight | Approx. 6.35 kg (14.00 lbs) |
| Configuration Software | ProTool V5.2+SP3 or WinCC flexible Standard (2004+) |
| Product Status | Discontinued (Legacy) |
Main Features and Advantages
Robust Key-Operated Interface for Glove-Friendly Operation: The SIEMENS 6AV6542-0DA10-0AX0 features 36 programmable function keys with integrated LEDs and an alphanumeric keyboard section. This tactile interface is a significant advantage over pure touchscreen panels in industrial environments where operators frequently wear protective gloves . The physical keys provide positive tactile feedback and allow for rapid, reliable operation even in demanding conditions with limited visibility. The 38 system keys, including the function keys, can be freely configured to directly initiate frequently used actions and functions . Up to 16 functions can be assigned to a single key, and these can even be used as PROFIBUS DP input peripherals, providing a powerful interface layer.
Vibrant 12.1-Inch TFT Display with 256 Colors: The SIEMENS 6AV6542-0DA10-0AX0 is equipped with a high-contrast 12.1-inch TFT color display offering 256 simultaneous colors and an SVGA resolution of 800 x 600 pixels . This delivers sharp, detailed graphics for process displays, trends, and alarm messages. The display supports vector graphics, dynamic object positioning, and curve display with scroll and zoom functions for historical data analysis . Up to 8 curves can be displayed simultaneously on a trend chart, and a crosshair marker allows precise reading of current values.
Comprehensive Connectivity and Flexible Architecture: The SIEMENS 6AV6542-0DA10-0AX0 comes standard with a full suite of interfaces, including MPI, PROFIBUS DP, Ethernet, USB, RS232, RS422/RS485, and TTY ports . This ensures seamless integration with a wide range of automation systems, from SIMATIC S5 and S7 controllers to third-party PLCs. The built-in Ethernet interface enables integration into plant-wide networks, supporting data exchange, remote diagnostics, and even web-based access. The inclusion of PC card and CF card slots provides flexible memory expansion options and facilitates data backup, project transfer, and recipe storage .
Powerful Windows CE-Based Platform with High Performance: Powered by a 64-bit RISC processor and running the Windows CE 3.0 operating system, the 6AV6542-0DA10-0AX0 offers exceptional graphics performance and fast response times . The WinAC MP software PLC option can run directly on the 6AV6542-0DA10-0AX0, enabling it to handle both visualization and control tasks simultaneously . The device supports VB scripting for custom functionality, extensive recipe management, and robust alarm and logging capabilities. With up to 5 online languages and 32 configuration languages, the 6AV6542-0DA10-0AX0 is truly a global HMI solution .
