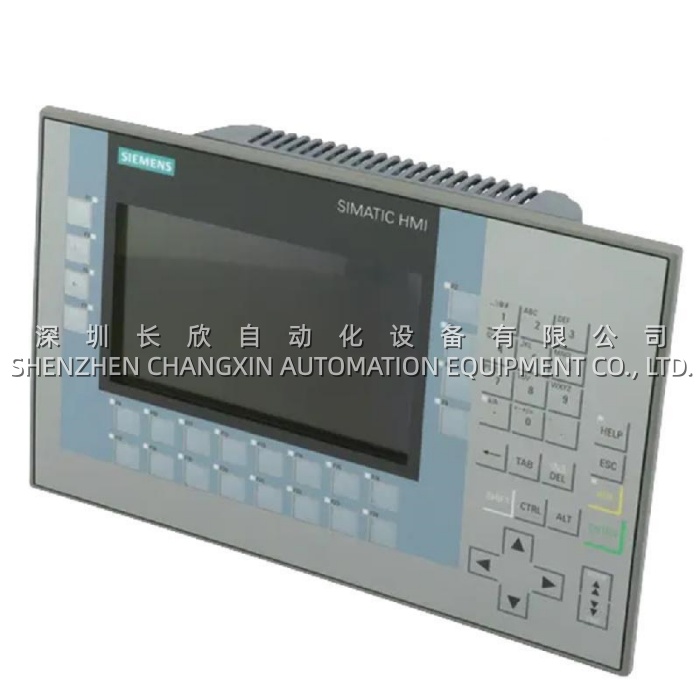

Siemens 6AV2124-1GC01-0AX0 KP700 Comfort Panel with 7″ TFT Display

Description

Application Scenarios

Picture a large bottling plant where operators manage a complex filling line that requires both precise control and rapid visual feedback. The environment is noisy, and operators must be able to interact with the machine efficiently without relying on a touchscreen for every action. The Siemens 6AV2124-1GC01-0AX0 is the perfect solution for this challenge. Its 24 physical function keys allow operators to execute critical machine start/stop sequences, recipe selections, or alarm acknowledgments with a single, reliable press—even while wearing thick gloves. At the same time, the vivid 7-inch display provides real-time performance data, fault diagnostics, and material flow visualizations, empowering the team to maintain peak production efficiency while the integrated PROFINET interface seamlessly connects the panel to the line’s S7-1500 controllers .

The 6AV2124-1GC01-0AX0 is also exceptionally suited for legacy system modernization. Facilities still relying on older units like the TP170B or MP277 can upgrade to this modern Comfort Panel using TIA Portal’s migration tools, bringing their operations up to date with enhanced visualization and connectivity standards . With its extensive protocol support, including EtherNet/IP and Modbus, the Siemens 6AV2124-1GC01-0AX0 ensures seamless integration with a wide array of automation equipment .

Parameters

Technical Principles and Innovative Values

Innovation Point 1: Intuitive Hybrid Operator Interface
The Siemens 6AV2124-1GC01-0AX0 masterfully blends the reliability of physical controls with the flexibility of modern visualization. The 24 programmable function keys provide a direct and tactile interface for critical, repetitive actions, giving operators the confidence of a positive click response, while the high-resolution color display delivers rich, context-sensitive information. This hybrid design significantly enhances operational efficiency and safety, especially in harsh or high-paced industrial environments where a pure touch interface might be less efficient or more prone to errors .

Innovation Point 2: Integrated Connectivity and Communication
The panel is equipped with a built-in PROFINET switch with two ports, allowing for easy “daisy-chaining” of multiple HMI devices or connection to other network nodes without needing an external switch . This simplifies system architecture and reduces hardware costs. Beyond PROFINET, its support for MPI, PROFIBUS DP, EtherNet/IP, and Modbus TCP makes the 6AV2124-1GC01-0AX0 a versatile choice for any industrial network topology .

Innovation Point 3: High-Performance Visualization and Robust Security
Powered by a Windows CE 6.0 operating system and equipped with 12 MB of configuration memory, the Siemens 6AV2124-1GC01-0AX0 can handle complex HMI applications, including advanced alarm management, large recipe data sets, and rich graphical interfaces . The device is engineered with integrated system diagnostics and supports modern security features, ensuring that plant data and control functions are protected from unauthorized access .

Innovation Point 4: Built for Extreme Conditions
The 6AV2124-1GC01-0AX0 is constructed for longevity in demanding industrial settings. Its aluminum front enclosure is certified for use in hazardous areas (ATEX Zone 2/22, IECEx, cULus Class I Division 2), enabling its deployment in environments with potential explosive atmospheres . The front panel’s IP65 rating provides robust protection against dust and high-pressure water jets, making it suitable for washdown applications in food, beverage, and pharmaceutical industries .
