Technical Specifications
| Parameter Name | Parameter Value |
|---|---|

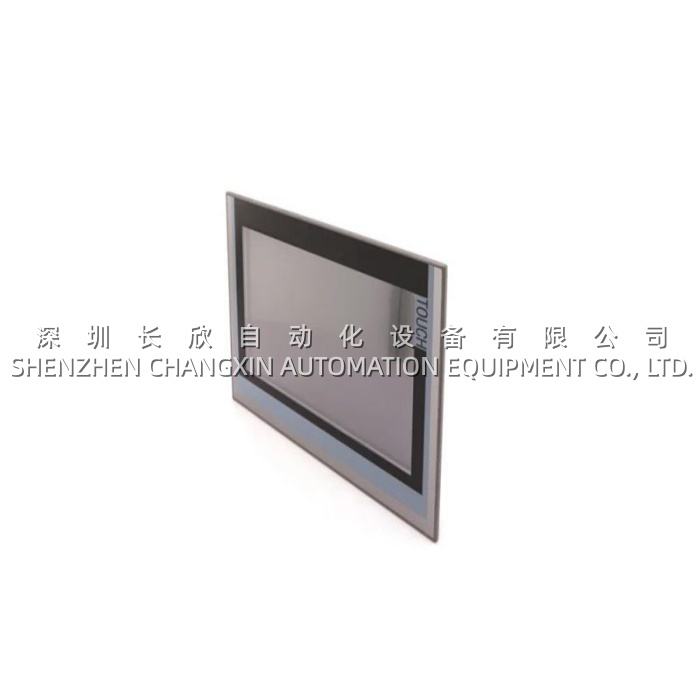

| Product Model | 6AV2124-0QC02-0AX0 |
| Manufacturer | Siemens AG |
| Product Type | Comfort Panel – Touch Operation HMI |
| Product Family | SIMATIC HMI TP1500 Comfort |
| Display Technology | 15.4″ Widescreen TFT (16:9) |
| Screen Resolution | 1280 × 800 pixels |
| Color Depth | 16,777,216 colors (24-bit) |
| Touch Screen | Analog resistive touch, 40 direct touch keys |
| Operating System | Windows CE 6.0 |
| Configuration Memory | 24 MB |
| User Memory | 2 GB (typical for Comfort Panel class) |
| Power Supply | 24 V DC (19.2 – 28.8 V DC range) |
| Power Consumption | 41 W (typical) |
| Rated Current | 1.7 A |
| Inrush Current I²t | 0.5 A²·s |
| PROFINET Interfaces | 2 ports (built-in switch) + 1 independent |
| MPI/PROFIBUS DP Interface | 1 (integrated) |
| RS422/485 Interface | 1 (combined) |
| USB Interfaces | 2 × USB 2.0 |
| SD Card Slot | 2 (for backup, logging, recipes) |
| Processor | X86 architecture |
| Front Panel Protection | IP65 (Type 4 / 4X) |
| Rear Panel Protection | IP20 |
| Ambient Operating Temperature | 0°C to +50°C (up to 55°C with restrictions) |
| Storage Temperature | -20°C to +60°C |
| Relative Humidity | 90% (non-condensing) |
| Backlight MTBF | 80,000 hours @ 25°C |
| Real-Time Clock | Yes, buffered ~6 weeks |
| Configurable From | WinCC Comfort V11 SP2 or higher |
| Physical Dimensions (W×H×D) | 415 × 310 × 75 mm |
| Mounting Cutout | 396 × 291 mm |
| Net Weight | 13.69 lb (6.21 kg) |
| EAN | 4025515081210 |
| Product Lifecycle | PM410 – Product Cancellation (since 01.07.2022) |
| Successor Model | 6AV2124-0QC02-0AX1 |
| Certifications | CE, cULus, RCM, KC |
Main Features and Advantages
The Siemens 6AV2124-0QC02-0AX0 delivers a compelling combination of visual brilliance, communication versatility, and engineering robustness that establishes it as a benchmark in the 15-inch HMI category. At the core of its appeal is the exceptional 15.4-inch widescreen TFT display, where the Siemens 6AV2124-0QC02-0AX0 renders process graphics with 1280×800 pixel resolution and 16.7 million colors. This high-fidelity visualization capability enables operators to monitor complex processes, distinguish subtle alarm states, and interact with detailed P&ID diagrams without eye strain—even during 24/7 continuous operation.Superior touch interaction:The Siemens 6AV2124-0QC02-0AX0 features an analog resistive touchscreen that supports 40 direct touch keys configured as S7 input peripherals. Unlike capacitive screens that struggle with gloved operation, the resistive touch technology of the Siemens 6AV2124-0QC02-0AX0 responds reliably to finger touch, stylus, or industrial gloves. The screen brightness is adjustable from 0–100%, and the LED backlight delivers an impressive 80,000-hour MTBF at 25°C, ensuring years of maintenance-free visual service.Unmatched connectivity:Connectivity is where the Siemens 6AV2124-0QC02-0AX0 truly shines. With 2 PROFINET ports featuring an integrated switch, the module simplifies network topology by allowing daisy-chain Ethernet connections without external switches. The inclusion of MPI/PROFIBUS DP, RS422/485, and 2 USB 2.0 interfaces means the Siemens 6AV2124-0QC02-0AX0 integrates seamlessly with legacy and modern field devices alike. The dual SD card slots enable local data logging, recipe storage, and project backup, transforming the Siemens 6AV2124-0QC02-0AX0 into a self-contained data management hub.Powerful visualization platform:Running Windows CE 6.0 with an X86 processor and 24 MB configuration memory, the Siemens 6AV2124-0QC02-0AX0 handles sophisticated HMI applications with ease. Engineers can develop rich visualization projects in WinCC Comfort V11 SP2 or higher, leveraging advanced features such as alarm management, recipe handling, trend display, user administration, and integrated web server functionality. The Siemens 6AV2124-0QC02-0AX0 also supports Sm@rtServer for remote access, enabling engineers to monitor and diagnose plant floor operations from anywhere in the world.Industrial-grade ruggedness:Built with an aluminum front bezel and IP65 front / IP20 rear protection, the Siemens 6AV2124-0QC02-0AX0 withstands dust, water jets, and the mechanical stresses of industrial environments. Its DC 24 V power supply with 19.2–28.8 V operating range provides tolerance for industrial power fluctuations. The Siemens 6AV2124-0QC02-0AX0 operates reliably from 0°C to +50°C (extendable to 55°C under restricted conditions), making it suitable for both climate-controlled control rooms and harsher factory floor installations.Strategic spare part availability:While the Siemens 6AV2124-0QC02-0AX0 has transitioned to discontinued status, its designation as an official spare part means that genuine OEM units remain available for maintaining existing TP1500 Comfort installations. For facilities with substantial installed bases of the Siemens 6AV2124-0QC02-0AX0, stocking strategic spares represents a cost-effective alternative to immediate platform migration, preserving millions in existing automation investments while planning a future upgrade path to the 6AV2128 Comfort Panel generation.
