Description
Application Scenarios

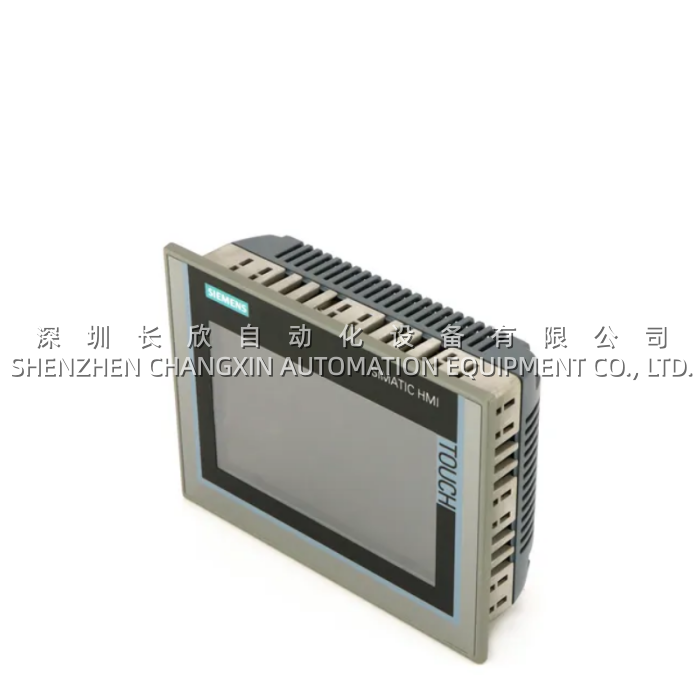

In a high-volume automotive parts manufacturing facility, the Siemens 6AV2124-0GC01-0AX0 serves as the central operator interface for a complex assembly line comprising multiple robotic stations, conveyor systems, and quality inspection cameras. Before deploying this comfort panel, operators relied on a combination of push-button panels and separate PC-based monitoring screens, which created workflow inefficiencies and increased the risk of operator error during shift changes and rapid production adjustments.
After integrating the Siemens 6AV2124-0GC01-0AX0, operators gained a unified, intuitive interface for monitoring real-time production metrics, acknowledging alarms, and adjusting process parameters. The 7-inch widescreen display of the Siemens 6AV2124-0GC01-0AX0 provides crisp, color-coded visualizations of machine status, while its multi-touch capability allows operators to navigate menus and acknowledge alarms swiftly—even while wearing gloves . The maintenance supervisor reported an 80% reduction in operator training time and a 30% improvement in alarm response speed due to the panel’s clear visual hierarchy and responsive touch interface.
Parameters
| Main Parameters | Value/Description |
|---|---|
| Product Model | 6AV2124-0GC01-0AX0 |
| Manufacturer | Siemens AG |
| Product Category | HMI Comfort Panel / Touch Operator Interface |
| Series | SIMATIC TP700 Comfort |
| Display Technology | 7″ Widescreen TFT, 16 million colors |
| Display Resolution | 800 × 480 pixels |
| Operation Type | Resistive analog touch |
| Supply Voltage | 24 V DC (19.2V – 28.8V range) |
| Rated Current | 0.5 A at 24 V DC |
| Power Consumption | 12 W (typical) |
| Configuration Memory | 12 MB (user data) |
| Operating System | Windows CE 6.0 |
| Communication Interfaces | PROFINET, MPI/PROFIBUS-DP, Ethernet, 2×USB 2.0, 2×SD Card slots |
| Dimension (W×H×D) | 214 mm × 158 mm × 53 mm |
| Weight | 1.61 kg – 1.81 kg |
| Front Protection Class | IP65 |
| Rear Protection Class | IP20 |
| Operating Temperature | 0°C to +50°C |
| Backlight MTBF | 80,000 hours (typical) |
| Certifications | CE, cULus, KC, ATEX Zone 2/22, IECEx, GL, ABS |
| Configuration Software | WinCC Comfort V11 or higher |
| Lifecycle Status | Active |
Technical Principles and Innovative Values
Innovation Point 1: High-Fidelity Visualization for Industrial Environments
The Siemens 6AV2124-0GC01-0AX0 leverages a 7-inch widescreen TFT display with 16 million colors and 800×480 resolution to deliver exceptional clarity for complex process visualizations . Its 80,000-hour backlight MTBF and adjustable brightness (0-100%) ensure consistent visibility across varying lighting conditions—from dimly lit control rooms to bright factory floors .
Innovation Point 2: Multi-Protocol Connectivity for Seamless Integration
The Siemens 6AV2124-0GC01-0AX0 features a comprehensive communication suite including PROFINET (with IRT support), MPI/PROFIBUS-DP, and industrial Ethernet . This multi-protocol capability enables direct connection to Siemens S7 series PLCs as well as third-party controllers via MODBUS and EtherNet/IP, significantly reducing integration complexity and engineering effort .
Innovation Point 3: Robust Hardware Design for Demanding Conditions
Engineered with an aluminum front housing and IP65-rated front protection, the Siemens 6AV2124-0GC01-0AX0 withstands dust, water ingress, and vibration common in heavy industrial environments . Its resistive touch technology operates reliably even when operators wear gloves—a critical requirement for safety and hygiene in many manufacturing sectors .
Innovation Point 4: PROFIenergy Energy Management
The Siemens 6AV2124-0GC01-0AX0 supports PROFIenergy, enabling centralized display shutdown during break times to reduce energy consumption . This feature contributes to sustainability goals and operational cost savings without compromising the panel’s readiness for immediate activation.
Innovation Point 5: Integrated System Diagnostics and Data Management
The Siemens 6AV2124-0GC01-0AX0 provides built-in system diagnostics that proactively monitor device health and communication status . Its data archiving capabilities support CSV, TXT, and RDB formats, enabling comprehensive process data logging for quality assurance and regulatory compliance . Multi-user permission management ensures secure access control across different operator roles.
