Description
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|

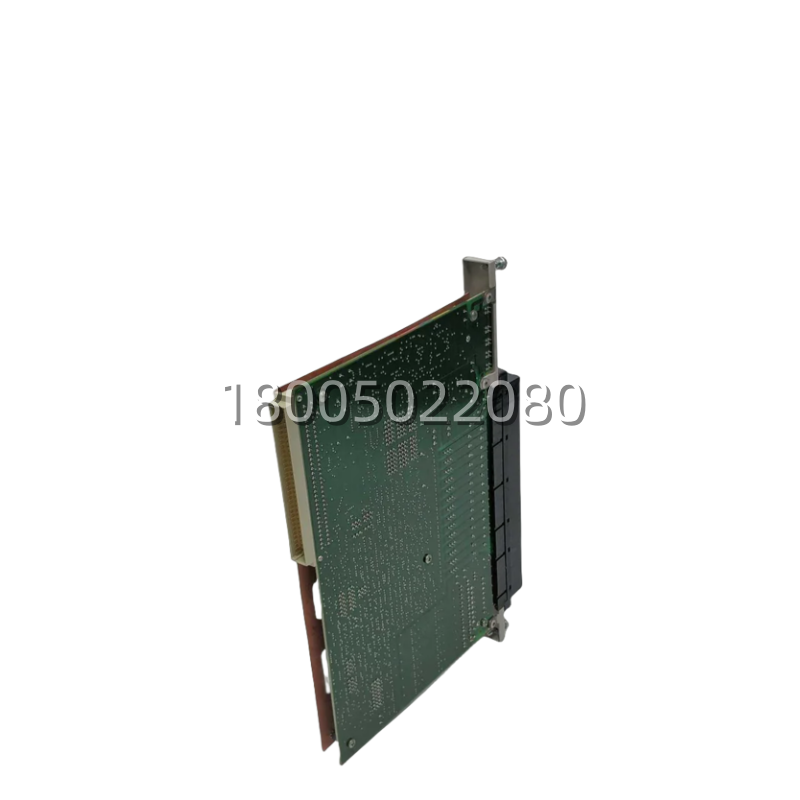

| Product Model | 505-7003 |
| Manufacturer | Siemens (formerly Texas Instruments) |
| Product Type | High-Speed Counter Encoder Module |
| Series | SIMATIC TI 505 |
| Counting Channels | 6 channels total (2 quadrature + 4 up/down) |
| Quadrature Counters | 2 × 24-bit resolution -10 |
| Up/Down Counters | 4 × 16-bit -10 |
| Maximum Count Frequency | 100 kHz -4-10-11 |
| Input Voltage Range | 5-24V DC -10 |
| Output Channels | 8 discrete outputs (transistor, 30V DC, 100mA) -4 |
| Configuration Method | DIP switches and thumbwheel switches (hardware) -4 |
| Operating Temperature | 0°C to +60°C -11 |
| Power Consumption | ~2W from TI 505 backplane (+5V DC) -11-12 |
| Module Width | Single-wide I/O module -1-11 |
| Status Indicators | MOD GOOD (red), RUN (green), 8 output LEDs (red) -1 |
Main Features and Advantages
High-speed counting and encoder processing capability: The SIEMENS 505-7003 excels at processing fast industrial pulse signals up to 100 kHz, significantly outperforming standard discrete input modules. This high-frequency capability makes it ideal for applications such as motor speed measurement via rotary encoders, flow rate monitoring from pulse-generating flow meters, and high-speed part counting on production lines. The module handles both quadrature signals (with A/B phase difference for direction detection) and non-quadrature signals, offering flexibility for various sensor types including incremental encoders, proximity switches, and magnetic pickups.
Hardware-based configuration for deterministic performance: Unlike modern software-configured modules, the SIEMENS 505-7003 employs DIP switches and thumbwheel switches for setting counting modes, preset values, and output behavior. This design choice ensures that the module operates independently of the PLC scan cycle, enabling immediate output response when preset count values are reached. This autonomy is critical for precision cut-to-length applications, where timing cannot tolerate scan cycle delays. The hardware configuration approach also simplifies replacement procedures, as existing switch settings can be documented and replicated on a new SIEMENS 505-7003 module to restore functionality without software reprogramming.
Versatile counter architecture with dual counter types: The SIEMENS 505-7003 provides six counting channels in total, comprising two 24-bit quadrature counters and four 16-bit up/down counters. This architecture allows simultaneous processing of multiple encoder inputs and independent counting tasks within a single module, reducing rack space requirements. The quadrature counters support 1X, 2X, and 4X counting modes for high-resolution position measurement from incremental encoders, while the up/down counters handle straightforward bidirectional counting tasks.
Robust industrial design and diagnostic features: The SIEMENS 505-7003 features ten LED indicators on its faceplate, including eight red LEDs displaying output status, a red MOD GOOD indicator confirming proper power-up and hardware health, and a green RUN indicator showing operational mode. These visual diagnostics enable rapid troubleshooting without requiring additional test equipment. The module’s opto-isolated inputs ensure signal integrity in noisy industrial environments, rejecting electromagnetic interference common in factory settings.
