Description

Application Scenarios

At a municipal water treatment facility, the pump control panel experienced frequent circuit breaker tripping during morning startup sequences when multiple 3kW feed pumps started simultaneously. The direct-on-line starting method caused voltage dips affecting sensitive instrumentation, and the mechanical shock from sudden starts was accelerating coupling wear. After installing the SIEMENS 3RW3014-1BB14 on each pump motor, the starting current dropped from 6x to approximately 3x the full-load current. The facility reduced maintenance costs by 40% and eliminated nuisance tripping issues. This real-world case underscores how the SIEMENS 3RW3014-1BB14 addresses the critical pain point of uncontrolled motor starts that degrade equipment life and destabilize power networks .

For plant engineers managing belt conveyors, centrifugal pumps, or ventilation systems, the SIEMENS 3RW3014-1BB14 provides an economical alternative to star-delta starters or expensive variable frequency drives. Its ability to adjust starting voltage and ramp time enables tailoring to specific load characteristics, preventing the “water hammer” effect in piping systems and reducing belt slip on conveyor drives. The integrated bypass system eliminates power losses during normal running—a feature often overlooked when selecting motor control components .

Parameter

Main Parameters	Value/Description

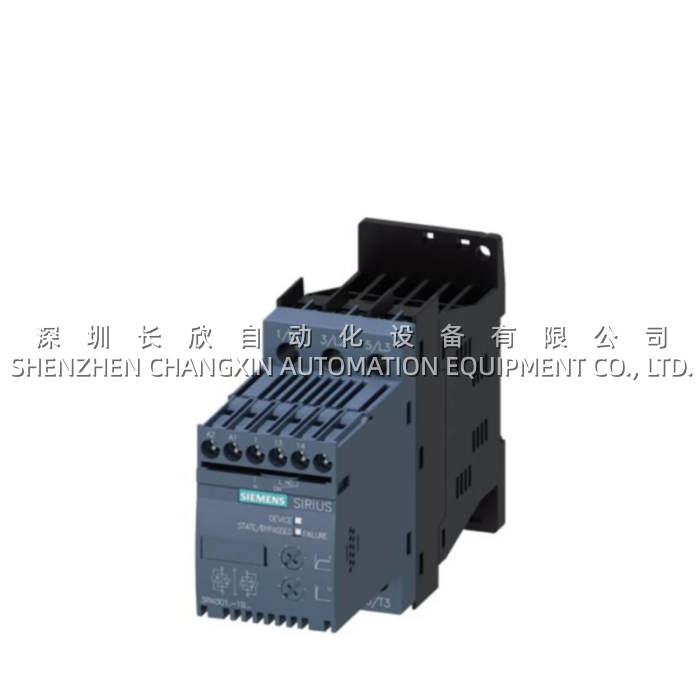

Product Model	SIEMENS 3RW3014-1BB14
Manufacturer	Siemens (SIRIUS product family)
Product Category	Soft Starter (Electronic Motor Controller)
Frame Size	S00 – compact footprint for 45mm width panels
Operational Current (Ie)	6.5A at 40°C; 6.0A at 50°C; 5.5A at 60°C – ambient derating factor applies
Motor Power (400V)	3.0 kW at 40°C (standard circuit)
Motor Power (230V)	1.5 kW at 40°C (standard circuit)
Main Circuit Voltage	200 … 480V AC, 50/60Hz – covers global industrial standards
Control Supply Voltage	110 … 230V AC/DC – flexible for AC or DC control circuits
Start/Stop Ramp Time	0 … 20 seconds – adjustable via potentiometer
Starting Voltage	40 … 100% – selectable to match load requirements
Dimensions (W x H x D)	45 x 95 x 150 mm – saves panel space
Ambient Temperature	-25°C to +60°C – industrial-grade environmental tolerance
Protection Class (Front)	IP20 – finger-safe for vertical contact
Terminal Type	Screw terminals (control and main circuit) – reliable field wiring
Integrated Bypass	Yes – built-in system eliminates external bypass contactors

Technical Principles and Innovative Values

Innovation Point 1: Two-Phase Thyristor Control with Bypass Technology

The SIEMENS 3RW3014-1BB14 uses phase-angle control on two phases to regulate voltage applied to the motor during startup. This approach effectively reduces inrush current while maintaining cost-efficiency. What sets this device apart is its integrated bypass contactor system—after the motor reaches full speed, the thyristors are bypassed by mechanical contacts . This eliminates semiconductor power losses (only 0.5W typical) and extends device lifespan compared to continuously conducting solid-state starters . As Siemens documentation notes, “A bypass contact system is already integrated in the 3RW30 soft starter and therefore does not have to be ordered separately” .

Innovation Point 2: Compact S00 Frame Design

With a width of only 45mm, the SIEMENS 3RW3014-1BB14 achieves exceptional power density. Competitor devices in the 3kW class often require 60-70mm width, allowing engineers to fit more starters in the same cabinet footprint . The SIRIUS 3RW30 series is recognized as “small, inexpensive and can be easily combined with the SIRIUS contactors, power switches and overload relays” .

Innovation Point 3: Dual AC/DC Control Supply Flexibility

The control supply accepts both AC (110-230V, 50/60Hz) and DC (110-230V) inputs without configuration changes . This eliminates the need for separate control transformers in mixed-voltage systems and simplifies global deployment.

Innovation Point 4: Adjustable Parameters for Application Tuning

Unlike fixed-function starters, the SIEMENS 3RW3014-1BB14 provides potentiometer adjustments for starting voltage (40-100%) and ramp time (0-20 seconds) . This enables optimization for specific load types—pumps benefit from longer ramp times to prevent water hammer, while conveyors require higher starting voltages for breakaway torque.

Innovation Point 5: Integrated Auxiliary Contact and Diagnostics

The device includes one normally open auxiliary contact and a red LED for fault signaling . The manual reset capability allows operators to acknowledge faults locally, reducing downtime.
