Description
Technical Specifications

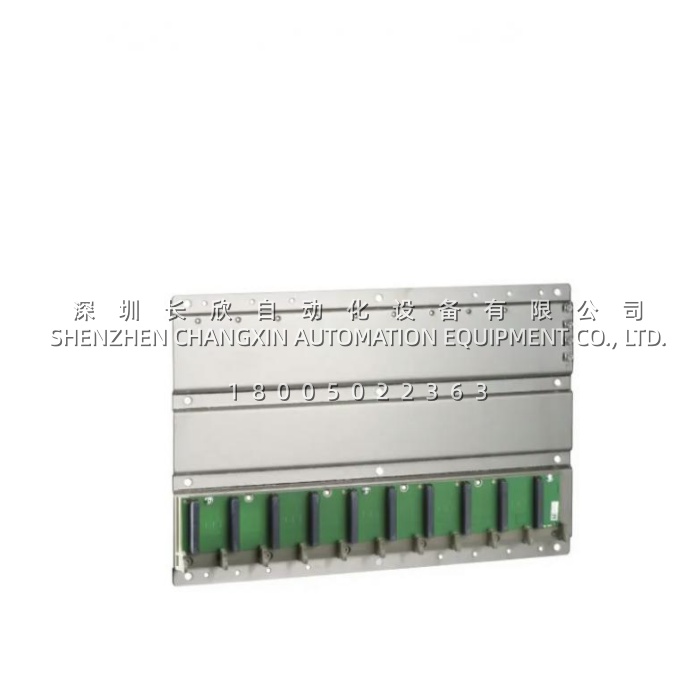

| Parameter Name | Value |
|---|---|
| Product Model | Schneider 140XBP01000 |
| Manufacturer | Schneider Electric |
| Product Type | Rack Backplane / PLC Mounting Chassis |
| Series | Modicon Quantum Automation Platform |
| Number of Free Slots | 10 (No Reserved Slots) |
| Compatible Modules | Quantum Series CPU, Power Supply, I/O, Communication Modules |
| Mounting Support | Mounting Plate / Panel Mount |
| Fixing Mode | Screw Mounting (6-13mm screw length recommended) |
| Rail Mounting | Possible |
| Width | 428 mm |
| Height | 290 mm |
| Depth | 19 mm |
| Net Weight | Approx. 1.0 kg |
| Input Voltage Type | AC/DC (Supplied by installed power supply module) |
| Protection Rating | IP20 (Cabinet Mounting Required) |
| Integrated Power Supply | Yes (Power distribution bus integrated) |
| Green Premium Certified | Yes (REACH SVHC-free, Mercury-free, RoHS compliant) |
| Warranty | 18 Months |
| Package Dimensions | 53.5 x 29.5 x 4.7 cm |
Main Features and Advantages
10-Slot Capacity with No Reserved Positions: The Schneider 140XBP01000 offers 10 freely configurable slots without any reserved positions, providing maximum flexibility for system design. This design allows engineers to install CPU, power supply, I/O, and communication modules in any slot arrangement that best suits heat dissipation and signal routing requirements. For optimal thermal management, it is recommended to position the power supply module in the far left slot.
Robust Mechanical Construction for Demanding Environments: The 140XBP01000 features a strong metal frame engineered for longevity in harsh industrial environments. Tapped holes on the chassis enable quick and secure connection of each module, while the included earthing terminal ensures proper grounding for electrical safety. All specified mounting holes must be used to meet vibration and shock resistance specifications, guaranteeing reliable operation in demanding applications.
Passive Backplane Design with Integrated Power Distribution: As a passive backplane, the Schneider 140XBP01000 contains no active components that could become failure points, contributing to exceptional system reliability. The integrated power distribution bus delivers the necessary operating voltage to all installed modules from the power supply unit, simplifying wiring and reducing installation complexity. This design ensures consistent power delivery across all slots while maintaining signal integrity for high-speed communication between modules.
Seamless Module Identification and Interoperability: The Schneider 140XBP01000 enables automatic slot identification for installed modules without requiring manual switch settings. This plug-and-play capability significantly simplifies system configuration and module replacement procedures. The backplane supports the full Modicon Quantum ecosystem, including powerful processors that optimize cycle times while integrating communication functions, diagnostics, and memory flexibility.
