Description

Application Scenarios

In a large water treatment plant, operators faced frequent maintenance issues with relay-based output cards that suffered from contact wear due to the continuous cycling of valve actuators and pump starters. The plant upgraded its control system with the Schneider 140DDO35300 to handle the dense array of DC loads. The module’s 32 outputs, organized into 4 groups, allowed engineers to distribute loads efficiently: Group 1 controlled chemical dosing valves, Group 2 managed filter backwash sequences, Group 3 operated indicator panels, and Group 4 handled miscellaneous alarms and status lights. The solid-state design eliminated the need for routine contact replacement, and the ≤1ms response time ensured precise timing for critical process steps, significantly reducing downtime and maintenance costs .

The 140DDO35300 also provides a practical solution for legacy Quantum system upgrades. In a metal processing facility, engineers used the module to replace aging output cards, leveraging the existing Quantum backplane and wiring infrastructure. The plug-and-play compatibility with Schneider Electric’s EcoStruxure Control Expert software allowed for rapid integration, minimizing production interruption during the upgrade .

Parameters

Main Parameters	Value/Description

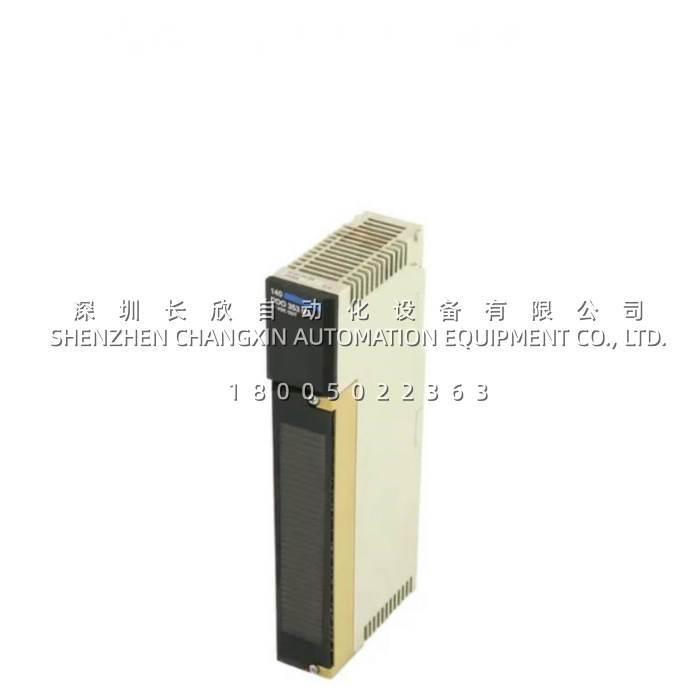

Product Model	140DDO35300
Manufacturer	Schneider Electric
Product Category	Discrete Output Module (DC)
Output Channels	32 channels (4 groups × 8 channels)
Output Logic	Positive (Source), common terminal connected to 0V
Output Voltage	24V DC (operating range 19.2…30V)
Per-Channel Current	0.5A continuous, 5A surge for 0.5ms
Group Load Capacity	4A per group
Module Load Capacity	16A total module load
Response Time	≤1ms (0→1 and 1→0)
Voltage Drop	<0.4V at 0.5A
Leakage Current	≤0.4mA at 30V
Protection	Internal 5A fuse per group, blown fuse detection
Isolation	1780Vrms (channel to bus); 500Vrms (group to group)
Bus Current	330mA
Power Dissipation	1.75W + (0.4V × total load current)
Status Indicators	32 green LEDs (channel ON), green Active LED (bus communication), red F LED (external fault)
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Weight	≈0.45kg
Certifications	UL 508, CSA C22.2 No 142, FM Class 1 Division 2, ABS, DNV, GL, RMRS, GOST, C-tick

Technical Principles and Innovative Values

Innovation Point 1: Electrically Isolated Channel Groups.
The 140DDO35300 divides its 32 outputs into 4 independent groups, each with 500Vrms isolation between groups and 1780Vrms between the channels and the system bus . This architecture allows engineers to connect each group to different field power supplies (e.g., separate 24V circuits for different equipment sections) without common-ground constraints, simplifying wiring and enhancing system reliability by limiting fault propagation .

Innovation Point 2: Solid-State Transistor Outputs for High-Speed Operation.
Unlike electromechanical relay outputs, the 140DDO35300 uses transistor switching with a response time of ≤1ms for both turn-on and turn-off transitions . This eliminates mechanical wear and contact bounce, making the module ideal for applications requiring frequent switching—such as PWM control for proportional valves or high-speed indexing sequences. The absence of moving parts dramatically extends the module’s operational life compared to relay-based alternatives .

Innovation Point 3: Comprehensive Protection and Diagnostics.
The 140DDO35300 incorporates 5A fuses on each output group, accompanied by blown fuse detection circuitry . When a fuse opens or field power is lost, the red F LED on the front panel illuminates, allowing technicians to quickly isolate the fault without manual point-by-point checks . Individual green LED indicators for each of the 32 channels show the output state at a glance, simplifying field commissioning and troubleshooting. Additionally, the module supports hot-swap capability on Quantum racks, enabling replacement without system shutdown
