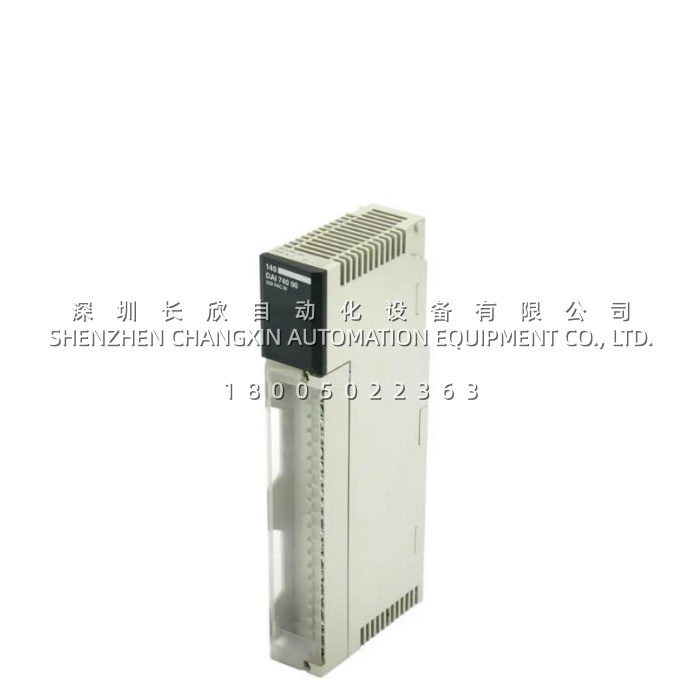

Description
Application Scenarios
In a large automotive manufacturing plant, the stamping press line relied on numerous 230V AC proximity sensors and limit switches to monitor tool positions and safety interlocks. The existing input modules frequently suffered from electrical noise and channel failures, causing unexpected press stoppages and production delays. The engineering team upgraded to the Schneider 140DAI74000 , leveraging its 16 individually isolated AC input channels to eliminate crosstalk and false triggers. The module’s guaranteed ON-state voltage threshold (165-264 VAC at 60 Hz) ensured reliable detection even during voltage dips, while the 2.6 mA maximum leakage current prevented false ON signals from capacitive coupling in long cable runs . The Schneider 140DAI74000 reduced nuisance trips by 85%, significantly improving press uptime and operator safety.
In a wastewater treatment facility, the control system needed to monitor the status of numerous pump contactors and level switches operating on 230V AC control circuits. The facility deployed the Schneider 140DAI74000 in its Quantum PLC rack, taking advantage of the module’s 16 channels arranged in two groups of eight for simplified wiring and troubleshooting. The module’s LED status indicators provided immediate visual feedback on each channel, allowing operators to quickly identify failed sensors or wiring issues . The Schneider 140DAI74000 ‘s compatibility with EcoStruxure Control Expert software enabled seamless configuration and real-time monitoring, reducing maintenance response time by over 50%.
Key Technical Parameters
| Main Parameters | Value / Description |
|---|---|
| Product Model | 140DAI74000 |
| Manufacturer | Schneider Electric |
| Product Category | VAC Discrete Input Module |
| Platform | Modicon Quantum Automation Platform |
| Number of Inputs | 16 channels (2 groups of 8) |
| Discrete Input Voltage | 230 V AC |
| Voltage State 1 Guaranteed | 165-264 VAC @ 57-63 Hz; 175-264 VAC @ 47-53 Hz |
| Voltage State 0 Guaranteed | 0-40 VAC @ 47-63 Hz |
| Input Current | 11.5 mA @ 57-63 Hz; 9.7 mA @ 47-53 Hz |
| Network Frequency | 47-63 Hz |
| Response Time (OFF-ON) | 4.9 ms min / 0.75 line cycle max |
| Response Time (ON-OFF) | 7.3 ms min / 12.3 ms max |
| Isolation (Channel to Bus) | 1780 Vrms for 1 minute |
| Absolute Maximum Input | 264 V continuous; 300 V for 10s; 400 V for 1 cycle |
| Bus Current Requirement | 180 mA |
| Maximum Power Dissipation | 5.5 W |
| Addressing Requirement | 1 input word |
| Local Signalling | Active (green), Fault (red), 16 channel status LEDs (green) |
| Terminal Block | 140 XTS 002 00 (sold separately) |
| Standards | UL 508, CSA C22.2 No 142 |
| Certifications | FM Class 1 Division 2, cUL, CE |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -40 to 85°C |
| Relative Humidity | 95% without condensation |
| Operating Altitude | ≤5000 m |
| Net Weight | 0.35 kg (0.77 lb) |
Technical Principles and Innovation
The Schneider 140DAI74000 embodies Schneider Electric’s engineering philosophy for robust, reliable AC signal acquisition in industrial environments. Its core innovations include:
- Innovation Point 1: High AC Voltage Input with Wide Tolerance. The Schneider 140DAI74000 is designed to accept standard 230 VAC industrial control signals, making it ideal for direct connection to relays, contactors, and AC-powered sensors without requiring external level conversion. The module’s guaranteed ON-state voltage thresholds (165-264 VAC) and OFF-state limits (0-40 VAC) provide excellent noise immunity, ensuring reliable state detection even in electrically noisy environments where voltage fluctuations are common . The module tolerates absolute maximum inputs up to 400 VAC for one cycle, protecting against transient spikes from inductive loads such as motor contactors.
- Innovation Point 2: Comprehensive Channel Isolation and Safety. Each channel on the Schneider 140DAI74000 is galvanically isolated from the backplane bus and from other channels, with an isolation rating of 1780 Vrms for one minute . This design prevents a fault on one channel from propagating to the PLC backplane or affecting neighboring channels, a critical safety feature in applications where high-voltage wiring may be exposed to short circuits or ground faults. The module is certified for FM Class 1 Division 2 hazardous locations, allowing installation in environments with flammable gases or dust .
- Innovation Point 3: Optimized Response Time for AC Signals. Unlike DC input modules that have fixed response times, the Schneider 140DAI74000 ‘s response time is synchronized with the AC line cycle, ranging from 4.9 ms to a maximum of 0.75 line cycles (approximately 12.5 ms at 60 Hz) for OFF-ON transitions, and 7.3 ms to 12.3 ms for ON-OFF transitions . This design ensures that the module properly filters out contact bounce and AC line noise while still providing sufficiently fast response for most industrial control applications, such as motor start/stop monitoring and level control.
- Innovation Point 4: Integrated LED Diagnostics. The Schneider 140DAI74000 features a comprehensive LED indicator array: a green “Active” LED for bus communication, a red “Fault” LED for error detection, and 16 green LEDs—one for each channel—that illuminate when the input is in the ON state . This visual diagnostic system enables technicians to verify channel status and identify wiring faults at a glance, significantly reducing troubleshooting time during commissioning and maintenance.
