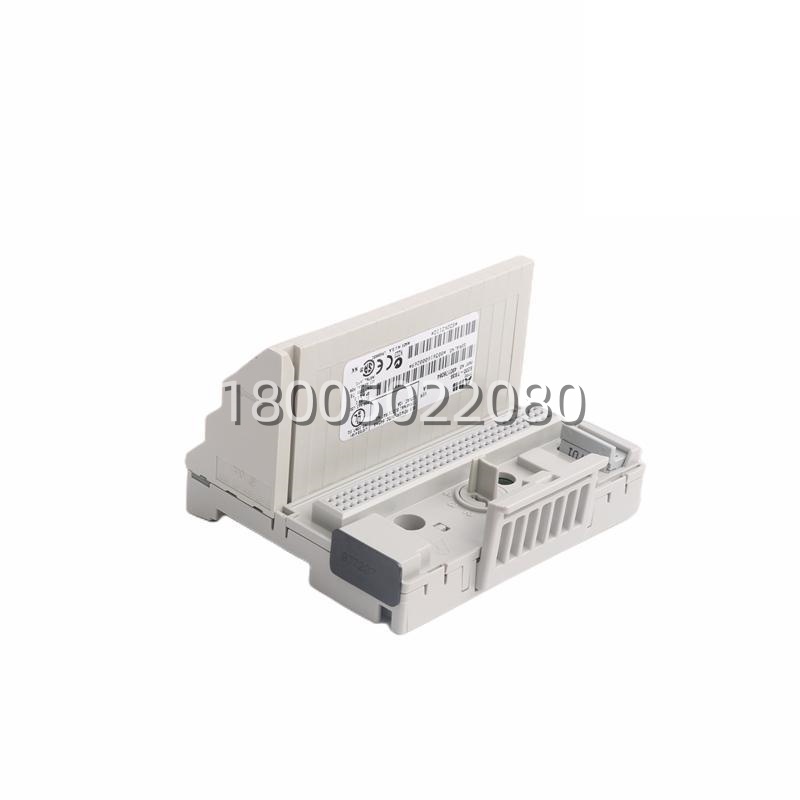

S200-TB3S: ABB’s Advanced Terminal Unit for I/O Systems

The ABB S200-TB3S (S200TB3S) is a sophisticated terminal unit from ABB’s S200 product family, designed for advanced signal conditioning and interface applications in industrial automation. It serves as a smart termination point that provides electrical isolation, signal conversion, and diagnostic capabilities for connecting field devices to PLC/DCS I/O systems. This unit bridges the gap between sensitive control electronics and the harsh industrial environment.

Category: FUJI

Contact Us WhatsApp / Wechat：+8618150087953
Phone：+86 18150087953
Email：sales@cxplcmro.com

Description

Application Scenarios:

In a pharmaceutical cleanroom’s environmental control system, multiple platinum resistance thermometers (PT100 sensors) monitor critical process temperatures. The raw, low-voltage signals from these sensors are susceptible to electrical noise over long cable runs and cannot be directly connected to the PLC’s analog input card. The ABB S200-TB3S terminal unit provides the perfect interface solution. Installed in a DIN-rail mounted terminal block enclosure near the PLC rack, each S200-TB3S channel connects to a PT100 sensor. The unit provides precise signal conditioning: it supplies a stable excitation current to the sensor, linearizes the resistance-to-temperature curve, filters out electrical noise, and converts the signal to a robust, industry-standard 4-20mA output. This clean, isolated 4-20mA signal is then safely wired to the PLC. The S200-TB3S effectively solves the problems of signal degradation, ground loops, and sensor power supply, ensuring the PLC receives accurate, reliable temperature data for maintaining strict environmental compliance.

Parameter:

Main Parameters	Value/Description
Product Model	S200-TB3S (also seen as S200TB3S)
Manufacturer	ABB (Previously under the “Busch” or “Entrelec” portfolio)
Product Category	Intelligent Terminal Unit / Signal Conditioner / Interface Module
Function	Signal conditioning, isolation, and conversion (e.g., RTD/TC to mA/V).
Input Types Supported	Depends on configuration: RTD (Pt100, Ni100), Thermocouple (J, K, etc.), mA, V.
Output Types	Typically 0/4-20mA, 0-10V, or other standard analog signals.
Isolation Rating	High galvanic isolation (e.g., 1.5kV) between field side and system side. [Critical for safety and noise immunity]
Power Supply	24 VDC (typical) for the conditioner electronics.
Accuracy	High accuracy (e.g., ±0.1% of span) for precise measurement.
Diagnostics	Channel fault indication via LED; possible open-circuit/short-circuit detection.
Mounting	DIN-rail mounting (35mm), compact design for high-density installations.
Connection	Spring-cage or screw-clamp terminals for reliable wiring.
