Description

Application Scenarios:

In an industrial plant’s main medium-voltage substation, an S&C Saftbreaker unit provides both overcurrent protection and automatic source transfer. During a scheduled maintenance shutdown, an electrician is tasked with testing the protective relay functions. This requires injecting secondary current into the relay and verifying trip outputs. All field wiring—from the three-phase current transformers (CTs), the voltage sensing transformers (VTs), the control switch for manual open/close, and the status contacts for “breaker open/close”—converges at a central point. The ABB Saft 163 IOC Saft Connection Board is this nexus. It provides the labeled, screw-type terminal blocks where all these external wires land. When a CT circuit needs to be isolated for testing, the technician safely disconnects it at the 163 IOC board. If a new remote alarm contact needs to be added, it is wired to an available terminal on this same board. Its failure or poor connection integrity can lead to inaccurate measurements, loss of control, or failed protection, making it a lynchpin for system reliability and safety.

Parameter:

Main Parameter	Value / Description

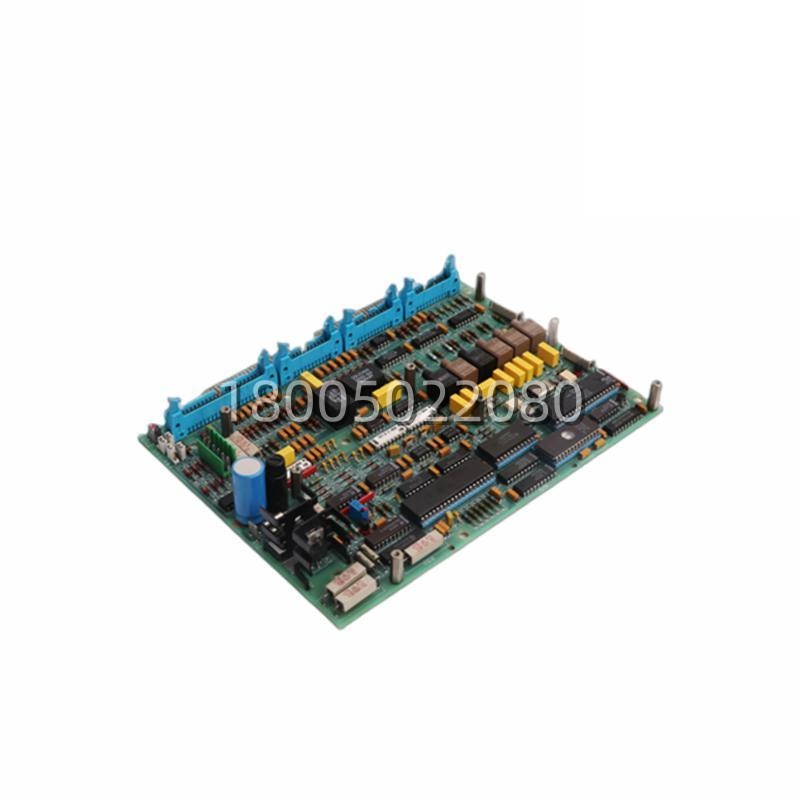

Product Model	163 IOC (commonly Saft 163 IOC or Saft163IOC)
Manufacturer	ABB (for S&C Saftbreaker legacy equipment)
Product Category	Switchgear I/O Interface / Terminal Connection Board
Compatible Equipment	S&C Saftbreaker series circuit reclosers, sectionalizers, and transfer switches.
Primary Function	Centralized wiring termination and interface between field devices and the main control logic.
Terminal Type	Robust screw-type terminal blocks, rated for control-level voltages and currents.
Input Connections	Terminals for Current Transformer (CT) secondaries, Voltage Transformer (VT) secondaries, and DC control power.
Output/Control Connections	Terminals for trip/close coil outputs, motor charge circuit, and auxiliary relay controls.
Signal Conditioning	May include components like test switches, shorting blocks for CT circuits, or fusing for voltage inputs.
Status & Alarm Connections	Terminals for breaker auxiliary contacts (52a, 52b), gas/pressure alarms, and other status signals.
Form Factor	A printed circuit board (PCB) with mounted terminal blocks, designed to install in the Saftbreaker’s control compartment.
Interface	Connects via wire harnesses or direct wiring to the main control logic board (e.g., 315F500).

Technical Principles and Innovative Values:

The ABB Saft 163 IOC board brings order, safety, and serviceability to the complex wiring of intelligent switchgear.

Innovation Point 1: Centralized, Safe Wiring Termination with Built-in Test Access: The primary innovation of the 163 IOC is the consolidation of dozens of critical wiring connections onto a single, organized board. Each terminal is clearly labeled according to standard electrical drawings (e.g., X1-1, X1-2 for CT circuits). More importantly, the board often incorporates safety features like built-in shorting blocks for CT secondary circuits. This allows a technician to safely short a CT circuit right at the boardbefore disconnecting it for test, preventing the dangerous high voltages that can appear on an open-circuited CT secondary. This design enforces safe work practices and simplifies maintenance procedures.
