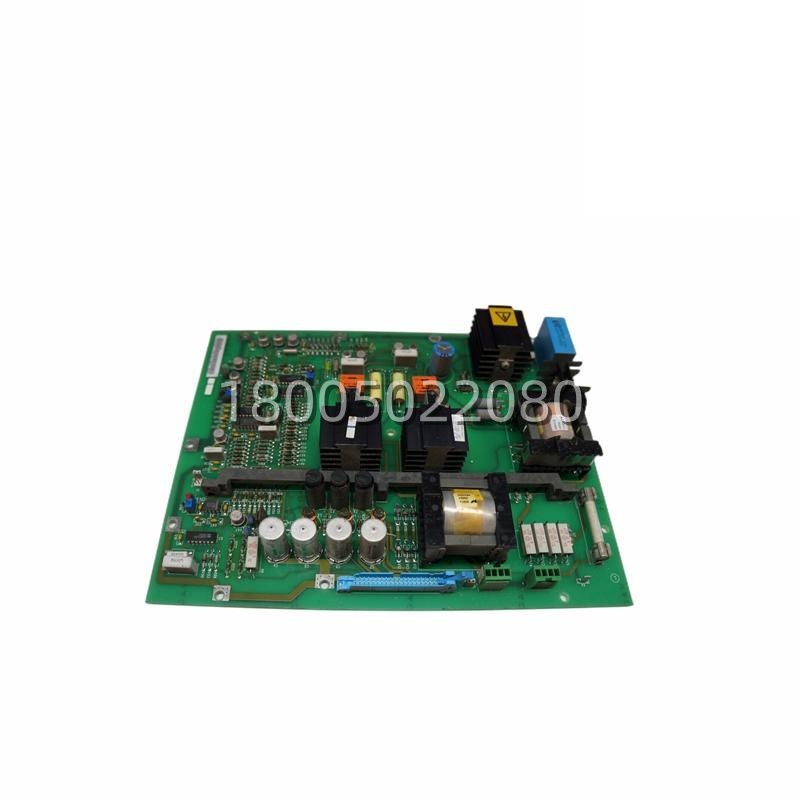

Reliable Power Distribution: ABB SAFT111POW Power Supply Unit

The ABB SAFT 111 POW (SAFT111POW) is a critical DC/DC power supply module designed for ABB’s industrial automation and control systems. It functions as a dedicated, isolated power conversion unit, typically used to provide stable, low-voltage DC power to I/O modules, communication interfaces, or other electronic subsystems within a control rack or cabinet. It ensures these sensitive components operate with clean, reliable power independent of fluctuations in the main supply.

Category: FUJI

Contact Us WhatsApp / Wechat：+8618150087953
Phone：+86 18150087953
Email：sales@cxplcmro.com

Description

Application Scenarios:

In a chemical plant’s distributed control system (DCS), a remote I/O station responsible for critical safety interlocks suddenly reports communication failures. Technicians find that the local ABB I/O modules in the remote cabinet are dead, though the main AC supply is present. The issue is traced to the cabinet’s internal DC power bus, which is supplied by the ABB SAFT 111 POW module. This module takes the incoming 24VDC or 110/220VAC supply and converts it to the precisely regulated, isolated +24VDC or other voltages required by the S800 or Advant I/O modules. A failure of the SAFT 111 POW collapses the entire local DC power rail, taking all I/O channels offline. Replacing the faulty power module with a new SAFT111POW restores clean, stable power to every I/O card, instantly bringing the remote station back online. This swift resolution restores safety interlocking and process monitoring, preventing a potential process shutdown or unsafe condition, directly addressing the critical vulnerability of a single point of power failure in a distributed control node.

Parameter:

Main Parameters	Value/Description
Product Model	SAFT 111 POW (SAFT111POW)
Manufacturer	ABB
Product Category	DC/DC or AC/DC Power Supply Module (for control systems)
Typical Input Voltage	24 VDC, 110/120 VAC, or 220/240 VAC (specific variant dependent).
Output Voltage	Typically +24 VDC (regulated and isolated) for I/O systems.
Output Power/Capacity	20W to 100W range (specific to variant; defines how many modules it can support).
Isolation Rating	Reinforced isolation between input and output (e.g., 2-4 kVAC). [Critical for safety and noise immunity]
Regulation & Ripple	Tight voltage regulation (<1%) and low ripple for sensitive electronics.
Protection Features	Overload, short-circuit, and overvoltage protection on output.
Mounting/Form Factor	Designed for mounting on a sub-rack or DIN rail within an ABB system rack/cabinet.
Status Indication	LED indicator for “Power Good” / output status.
Primary Application	Provides isolated, clean DC power for ABB I/O modules, communication adapters, and other rack-mounted electronics.
