Description
Application Scenarios:In a municipal water treatment plant, aging pump motors were experiencing frequent failures due to the high torque and water hammer effects caused by direct-on-line starting. The plant engineers replaced the traditional starters with the ABB PSTX-142-600-70 soft starters. The implementation resulted in a smooth ramp-up of the 75 kW pumps, eliminating the destructive water hammer and reducing the inrush current by over 60%. This not only protected the pump impellers and pipes from mechanical shock but also significantly lowered the maintenance costs and prevented unexpected downtime, showcasing the PSTX-142-600-70‘s critical role in infrastructure reliability.
Parameter:
| Main Parameters | Value/Description |
|---|---|

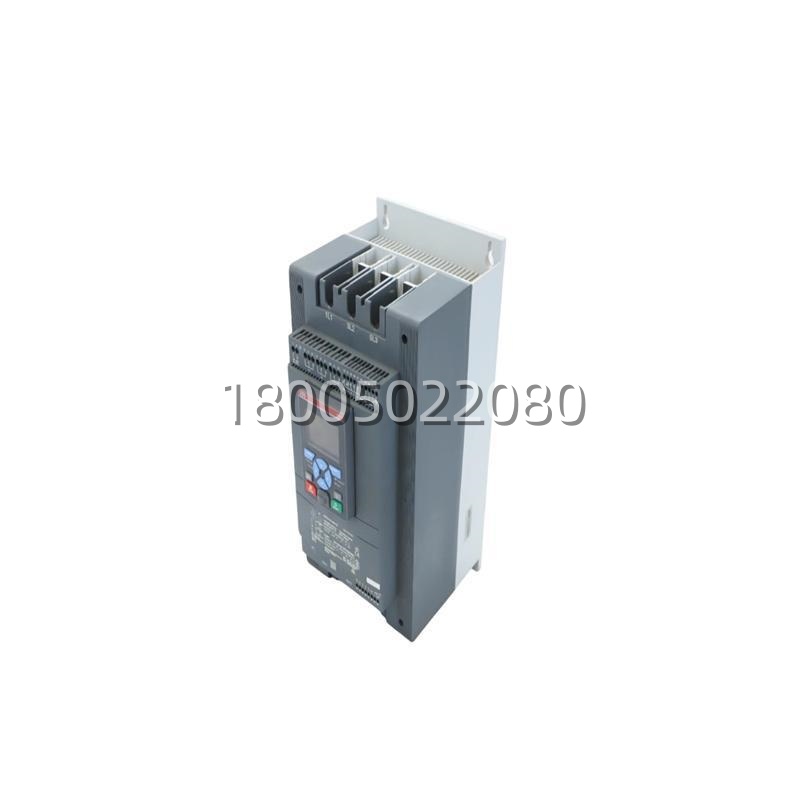

| Product Model | PSTX-142-600-70 (1SFA898110R7000) |
| Manufacturer | ABB |
| Product Category | Electronic Soft Starter |
| Rated Operational Current (Ie) | 142 A (In-line connection) |
| Rated Voltage | 208–600 V AC, 50/60 Hz |
| Control Supply Voltage (Us) | 100–250 V AC |
| Max Motor Power (400V) | 75 kW (In-line) / 132 kW (Inside Delta) |
| Start Capacity | 4 x Ie for 10 seconds |
| Ramp Time | 1–120 seconds (adjustable) |
| Initial Voltage | 10–99% (adjustable) |
| Communication | Built-in Modbus RTU, Optional ANYBUS (Profinet, Ethernet/IP) |
| Ambient Temperature | -25 °C to +60 °C |
| Dimensions (HxWxD) | 377 x 199 x 238 mm |
Technical Principles and Innovative Values:The ABB PSTX-142-600-70 utilizes advanced thyristor technology to control the voltage applied to the motor during start and stop sequences, providing a stepless and controlled torque transition.
- Innovation Point 1: Built-in Bypass Contactor. Unlike basic soft starters, the PSTX-142-600-70 features an integrated bypass contactor. Once the motor reaches full speed, the bypass engages, shunting the current around the thyristors. This eliminates heat generation in the power electronics during continuous run, improving energy efficiency and allowing for a more compact enclosure design.
- Innovation Point 2: Dual Ramp Control Algorithms. The device offers both voltage ramp and torque ramp control strategies. The torque control mode is particularly effective for high-inertia loads like fans and centrifuges, providing a linear acceleration curve that prevents mechanical resonance and belt slippage on conveyors.
- Innovation Point 3: Industrial IoT Readiness. With its built-in Modbus RTU interface and support for optional ANYBUS modules (enabling Profinet, Ethernet/IP, etc.), the PSTX-142-600-70 seamlessly integrates into modern DCS and SCADA systems. This allows for remote monitoring of motor current, temperature, and fault diagnostics, facilitating predictive maintenance.
Application Cases and Industry Value:
- Case 1: Mining Conveyor System Retrofit: A mining operation in Australia was facing persistent breakdowns of its 1.5 km overland conveyor belt due to the violent jerking during startup. After installing the ABB PSTX-142-600-70, the belt acceleration was tuned to a 30-second ramp. This eliminated the belt slippage and spillage, reducing wear on the idlers and drive pulley. The mine reported a 40% reduction in conveyor maintenance costs and a 20% increase in belt life.
- Case 2: HVAC Fan Upgrade in Commercial Building: A large commercial complex in Europe upgraded its 90 kW ventilation fans with PSTX-142-600-70 soft starters. The previous star-delta starters were causing loud mechanical bangs and pressure surges in the ductwork. The soft starters provided a smooth, stepless start that eliminated the noise complaints and reduced the peak demand charges from the utility, achieving a payback period of less than 18 months.
