Product Description

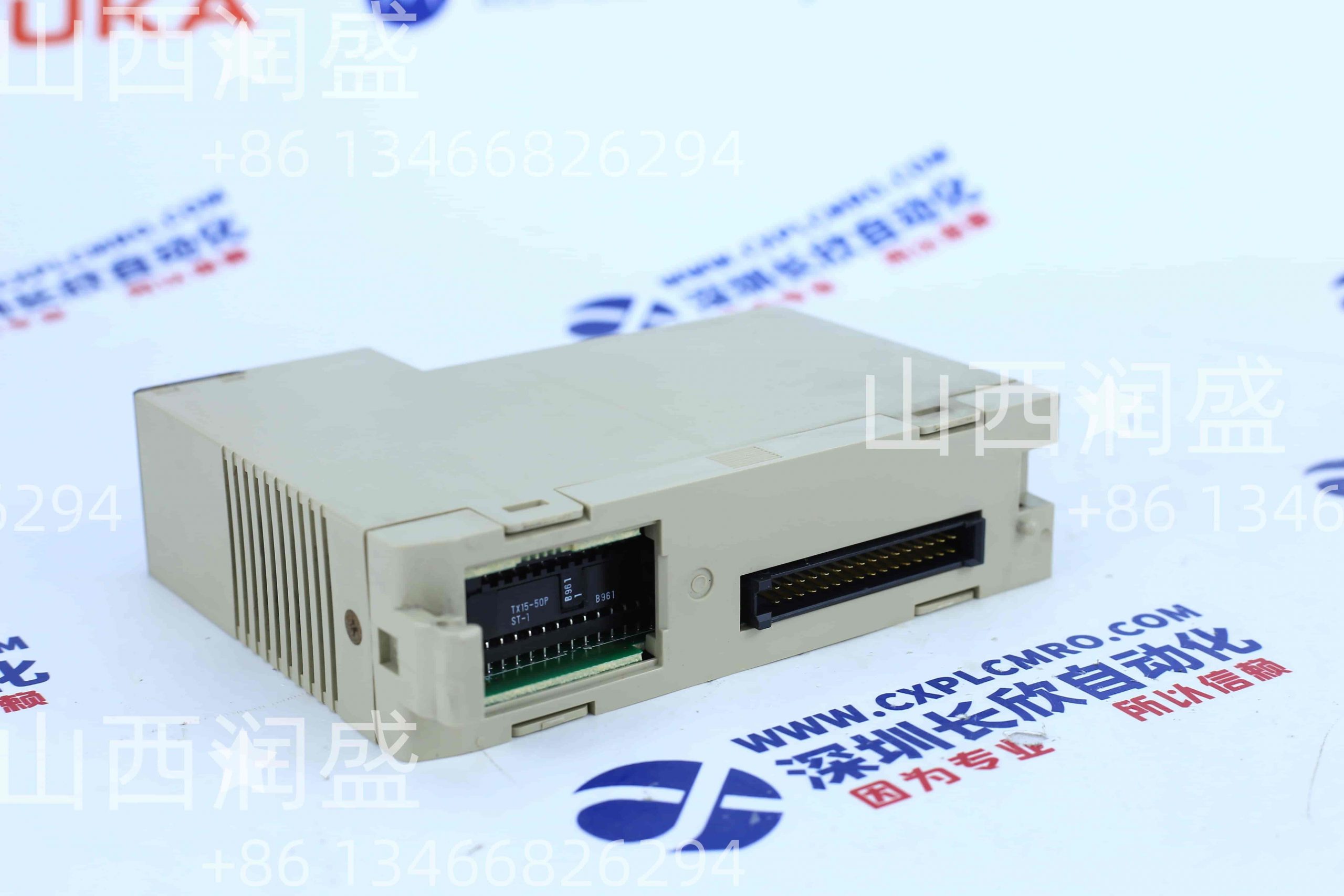

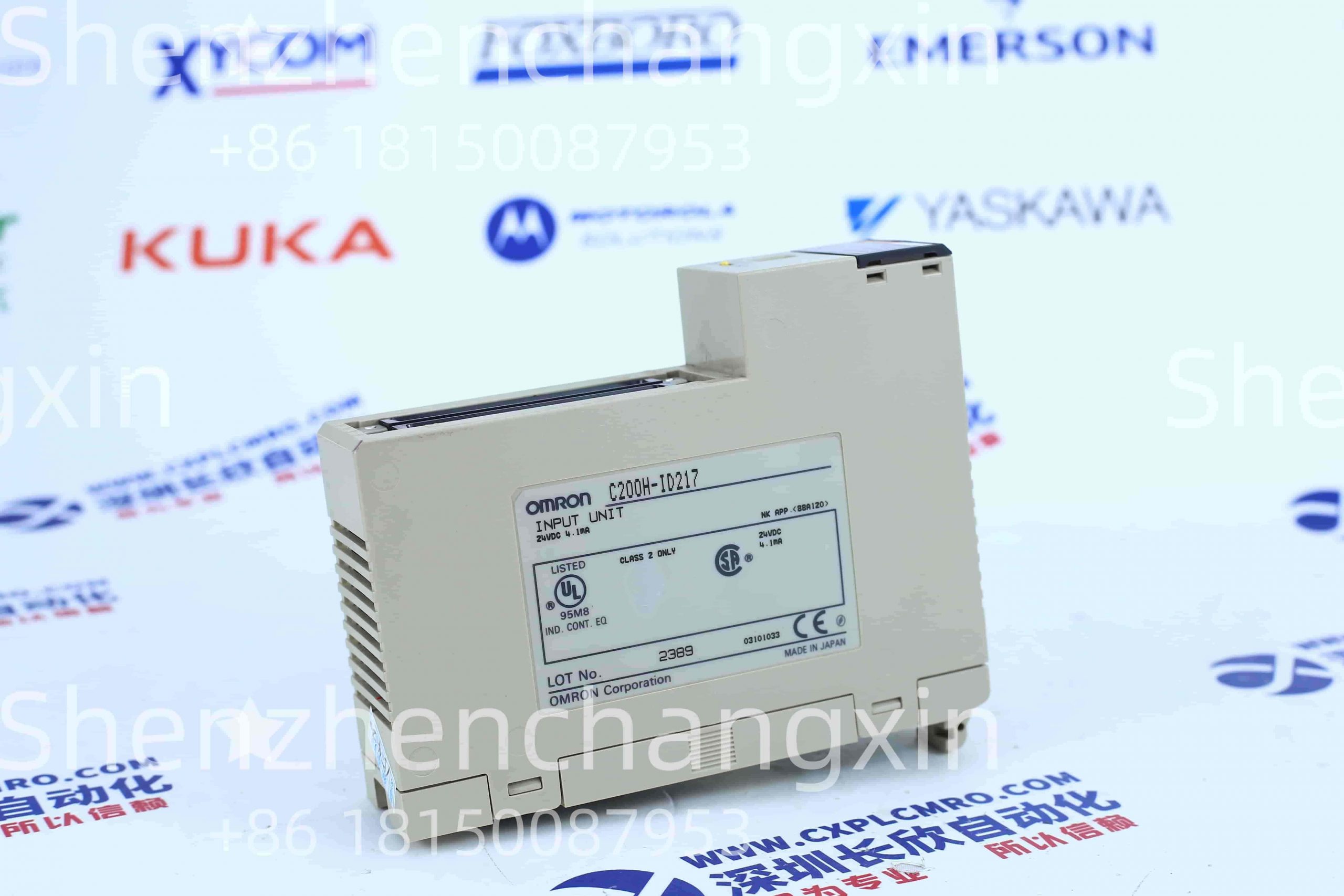

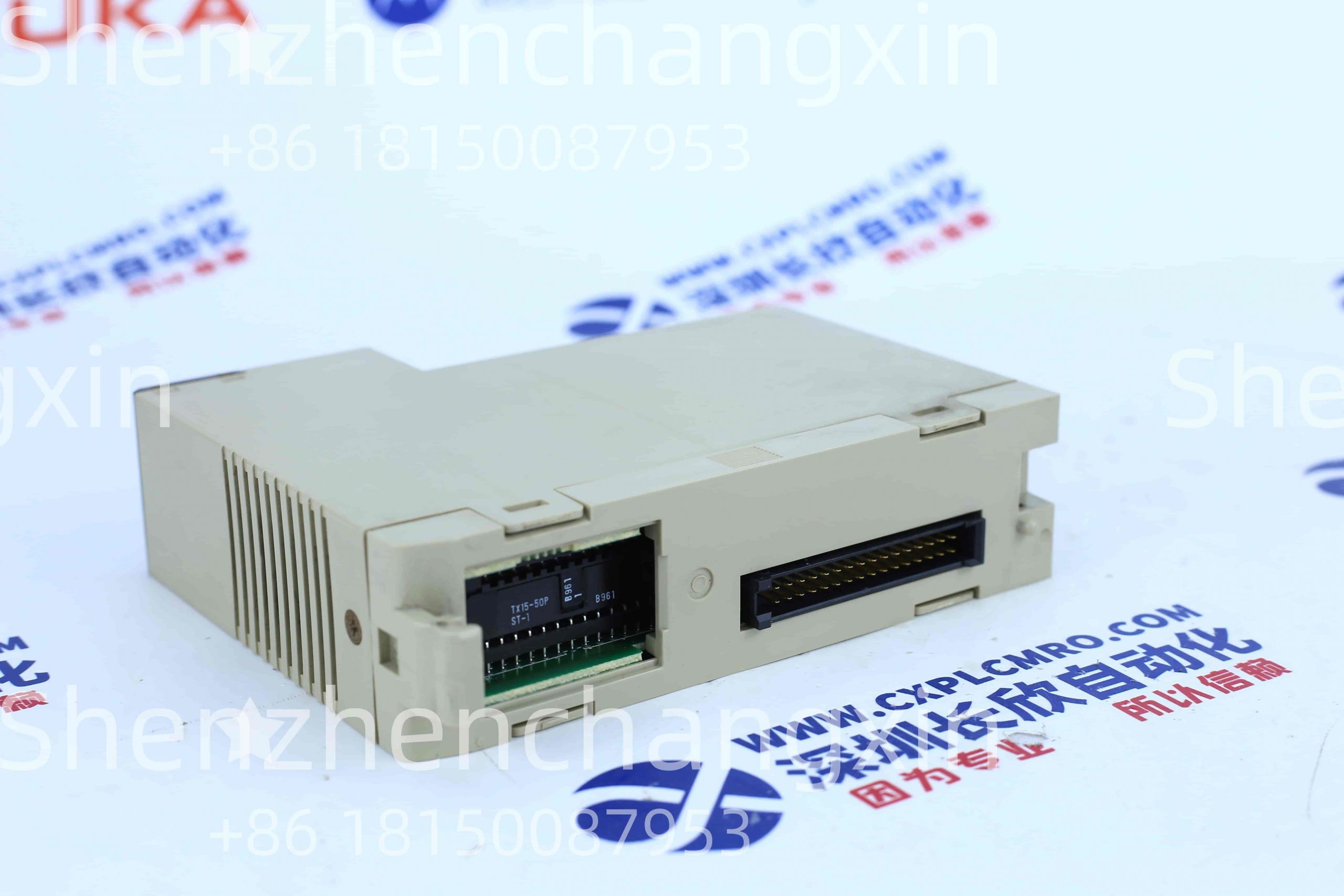

TheOmron C200H-ID2172is a 32-point DC input module designed for the C200H series programmable logic controllers.This reliable module serves as a critical interface between field devices and the PLC,providing high-density input capability for industrial automation applications.Engineered for durability and performance,it features compact design and efficient operation.

Key Parameters

Input Points:32 points

Input Type:24V DC sinking

Response Time:1.5 ms max.

Isolation:Photocoupler isolation

Connection:Removable terminal block

Technical Specifications

Parameter

Specification

Product Model

C200H-ID2172

Manufacturer

Omron

Product Type

32-point DC Input Module

Compatible PLC

Omron C200H Series

Number of Points

32 points

Input Voltage

24V DC(+10%/-15%)

Input Current

7 mA nominal(at 24V DC)

ON Voltage

15V DC min.

OFF Voltage

5V DC max.

Response Time

1.5 ms max.

Isolation

Photocoupler(field-to-logic)

Connection Method

Removable terminal block

Current Consumption

5V DC:0.15A max.

Operating Temperature

0°C to+55°C

Storage Temperature

-25°C to+65°C

Weight

400 g max.

Application Scenarios

In a packaging machinery application,theOmron C200H-ID2172modules were deployed to monitor 32 sensor points including photoelectric sensors,limit switches,and safety interlocks.The modules’fast response time(1.5 ms)enabled precise synchronization of conveyor movements and product handling,increasing packaging speed by 20%while maintaining 99.9%operational reliability over three years of continuous operation.

Technical Principles and Innovative Values

Innovation Point 1:High-Density Design–TheC200H-ID2172packs 32 input channels into a compact form factor,maximizing I/O density while maintaining individual channel isolation through advanced photocoupler technology.

Innovation Point 2:Fast Response Capability–With a maximum response time of 1.5 ms,the module ensures rapid signal processing critical for high-speed automation applications,providing deterministic performance for time-sensitive control tasks.

Innovation Point 3:Enhanced Reliability–The module features built-in input filtering and surge protection,ensuring stable operation in electrically noisy industrial environments and extending service life in demanding applications.

Application Cases and Industry Value

Case Study 1:An automotive assembly plant implementedOmron C200H-ID2172modules across their production line to monitor robotic workcell safety gates and component presence sensors.The installation reduced false trigger incidents by 45%and improved overall equipment effectiveness(OEE)by 15%through reliable signal acquisition and processing.

Case Study 2:In a food processing facility,the modules were used to interface with level sensors and flow switches in ingredient handling systems.The high channel count reduced the number of required modules by 40%,saving control panel space and reducing wiring costs by approximately$15,000 per production line.

Installation,Maintenance,and Full-Cycle Support

Installation:TheC200H-ID2172mounts directly onto the C200H backplane.Installation requires proper grounding and segregation of signal cables from power cables to prevent electrical interference.The removable terminal block simplifies wiring and maintenance.

Maintenance:Regular maintenance includes checking input status via LED indicators,verifying terminal block tightness,and testing response times annually.Maintain spare modules for critical applications to minimize downtime.

Support:We provide comprehensive technical support for theC200H-ID2172,including wiring diagrams,configuration guidance,and troubleshooting assistance.Our inventory ensures quick availability for replacement needs.

Product Assurance

TheOmron C200H-ID2172is manufactured to Omron’s quality standards and backed by technical support.Each unit undergoes rigorous testing to ensure reliable performance in industrial environments.
