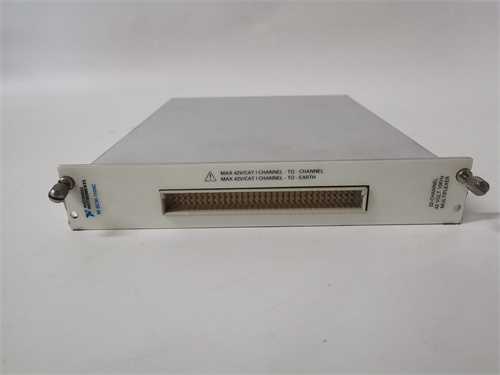

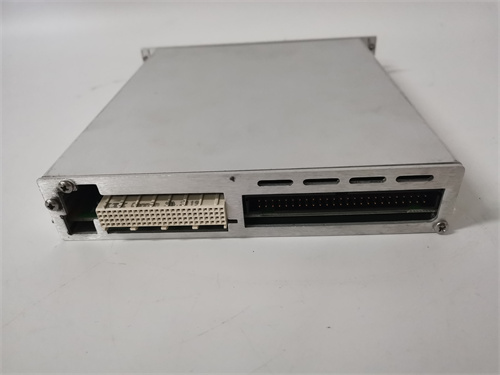

NI SCXI-1104C

Description

NI SCXI-1104C is a data acquisition card produced by National Instruments(NI)and is part of the SCXI(Signal Conditioning eXtensions for Instrumentation)series.The following is a detailed introduction to the product:

I.Product Overview

The NI SCXI-1104C data acquisition card is mainly used to measure and acquire sensor signals and pass them to the computer for further processing and analysis.It supports high-precision acquisition and processing of analog and digital signals and is suitable for various complex measurement tasks.

II.Main Features

High performance:

Adopting high-performance processors and algorithms,digital signals can be quickly acquired,processed and analyzed.

High-resolution ADC(analog-to-digital converter)provides high-precision data acquisition.

Multi-channel acquisition:

Supports simultaneous acquisition of multiple channels and can connect multiple sensors or signal sources for data acquisition.

NI SCXI-1104C

Usually 32 single-ended or 16 differential input channels to meet the needs of various application scenarios.

Real-time processing and analysis:

Supports real-time processing and analysis of acquired digital signals and can quickly respond to various changes and abnormal situations.

Programmability:

Supports multiple programming languages​​and development tools,such as LabVIEW,etc.Users can write customized control programs according to their needs.

Programming languages​​can be used to configure and control modules to meet the needs of specific applications.

Easy to use:

Simple design,easy to operate and maintain.

Can be installed and debugged quickly and easily.

Compatibility:

Compatible with other instruments and systems from NI,convenient for users to expand and integrate.

Supports multiple interface options,such as USB,PCI,PXI and Ethernet,etc.,convenient for connection with computers or control systems.

High precision:

24-bit analog-to-digital converter,providing high-precision data acquisition.

The input voltage range is±10V,suitable for a variety of common signal types and voltage standards.

Stability and reliability:

The input impedance is 1MΩ||5pF,ensuring stable signal transmission.

Easy to calibrate and maintain,users can operate according to the calibration guide to ensure the accuracy of measurement.

NI SCXI-1104C

3.Application fields

NI SCXI-1104C data acquisition card is widely used in various fields that require high-precision data acquisition,such as:

Laboratory measurement:used to measure and record changes in various physical quantities,such as temperature,pressure,light intensity,etc.

Automated testing:In automated testing systems,it is used to monitor and record various parameters in the production process.

Scientific research:used to record various measurement data generated in experiments for analysis and research.

4.Technical specifications(partial)

Sampling rate:The maximum sampling rate is 100kS/s,but the specific rate may vary depending on application requirements.

Resolution:24-bit analog-to-digital converter.

Input voltage range:±10V.

Input impedance:1MΩ||5pF.

Dimensions and weight:3.3×22.9×14.0cm,0.36kg.
