Product Overview

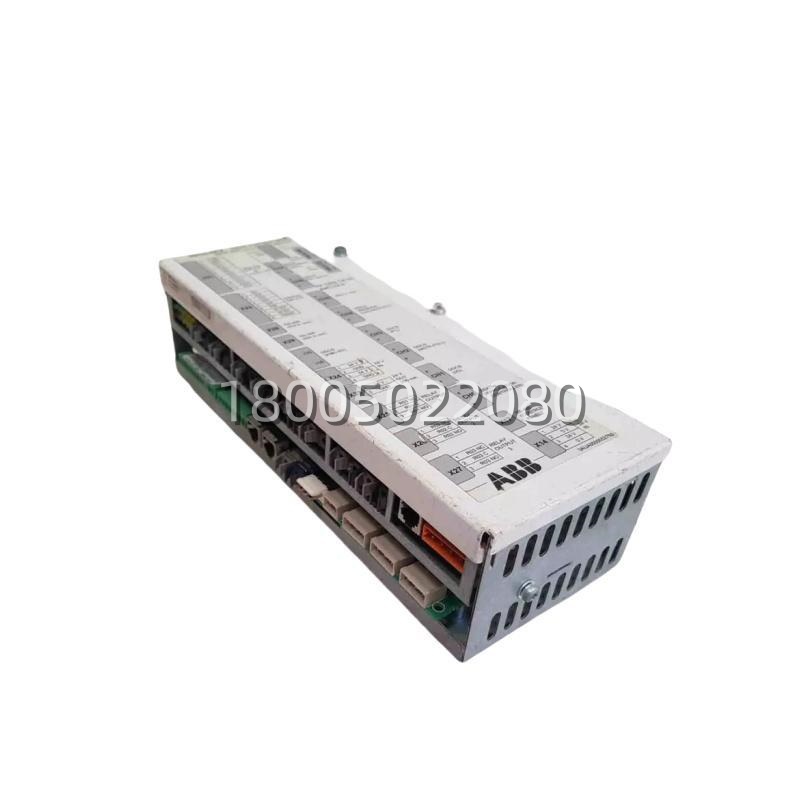

The NDCU-33CX is a high-performance Drive Control Unit (DCU) manufactured by ABB, serving as the intelligent core of the ACS800 and ACS880 industrial drive families. This advanced control module integrates the AMC-33C Application and Motor Controller board with the NIOC-02 Standard Input/Output board within a rugged metal housing, creating a compact yet powerful control solution for demanding motor drive applications . The NDCU-33CX is specifically designed to execute ABB’s industry-leading Direct Torque Control (DTC) algorithms, delivering exceptional dynamic performance and precision for both induction and permanent magnet motors across a wide power range from 1.1 kW to 2.4 MW .
The NDCU-33CX functions as the “brain” of the drive system, responsible for real-time motor control execution, I/O management, fieldbus communication, and comprehensive fault diagnostics. Its modular architecture incorporates a powerful digital signal processor (DSP) based on Motorola PowerPC architecture, enabling high-speed computation for complex control tasks . The NDCU-33CX communicates with power modules through ABB’s proprietary DDCS (Distributed Drives Communication System) fiber optic links, ensuring noise-immune, high-speed data exchange essential for reliable operation in electrically harsh industrial environments . As a versatile and programmable control platform, the NDCU-33CX supports user-defined applications through DriveAPL or CoDeSys IEC 61131-3 programming environments, making it suitable for everything from simple pump control to complex multi-axis synchronization .
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | NDCU-33CX |
| ABB Ordering Code | 3AUA0000052751 |
| Manufacturer | ABB |
| Product Type | Drive Control Unit / Application Control Board |
| Compatible Series | ACS800 (especially -67), ACS880 Multi-Drive, DCS800 |
| Core Components | AMC-33C (Application & Motor Controller) + NIOC-02 (I/O Board) |
| Processor | Motorola PowerPC-based DSP, 400 MHz |
| Control Algorithms | Direct Torque Control (DTC), Vector Control, V/F Control |
| Speed Control Accuracy | ±0.01% (with encoder), ±0.1% (sensorless) |
| Torque Control Accuracy | ±1% rated torque (static), ±3% (dynamic) |
| Auxiliary Power Supply | 24V DC ±10%, typical 2–3A |
| Communication – Internal | DDCS Fiber Optic (10 Mbps, supports redundant ring) |
| Communication – Upper System | Ethernet (Modbus TCP/EtherNet/IP/PROFINET with adapter) |
| Serial Interface | RS-485 (Modbus RTU), USB Type-B (service/debug) |
| Digital Inputs | 8 x DI (24V DC sink/source) |
| Digital Outputs | 8 x DO (transistor/relay, up to 0.5A) |
| Analog Inputs | 4 x AI (0/4-20 mA or 0-10V configurable) |
| Analog Outputs | 2 x AO (0/4-20 mA) |
| Expansion Slots | Up to 3 x FBA (FieldBus Adapter) |
| Safety Function | STO (Safe Torque Off) SIL3/PLe with optional firmware |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection Class | IP20 (cabinet installation) |
| Mounting | DIN rail or backplate screw mounting |
| Dimensions (approx.) | 275 x 115 x 85 mm |
| Weight (approx.) | 1.2 – 1.5 kg |
| Certifications | CE, UL, cUL, RoHS |
Main Features and Advantages
Advanced Direct Torque Control: The NDCU-33CX leverages ABB’s patented Direct Torque Control (DTC) technology, delivering exceptional dynamic response with torque step response times below 10ms and speed step response below 50ms . This proprietary algorithm enables precise motor control without requiring an encoder in many applications, reducing system complexity and sensor costs while maintaining high performance. The NDCU-33CX achieves speed control accuracy of ±0.01% with feedback devices, making it suitable for the most demanding precision applications such as rolling mills and wind turbine pitch control .
High-speed Fiber Optic Communication: The NDCU-33CX utilizes the DDCS (Distributed Drives Communication System) fiber optic interface for internal and external communication . This approach provides superior electromagnetic interference immunity, supports long transmission distances, and ensures deterministic, low-latency data exchange critical for multi-drive synchronization. The fiber optic link makes the NDCU-33CX particularly suitable for installations in high-EMI environments such as steel mills, paper machines, and wind power applications where communication reliability is paramount.
Integrated I/O and Flexible Expansion: The NDCU-33CX integrates a comprehensive set of I/O interfaces directly on the module, including 8 digital inputs, 8 digital outputs, 4 analog inputs, and 2 analog outputs, covering most local control and monitoring requirements . For more complex applications, the module supports up to three fieldbus adapter slots, allowing connection to PROFIBUS DP, CANopen, DeviceNet, and other industrial networks. This “one-board-fits-many” design of the NDCU-33CX simplifies spare parts management and reduces system complexity.
Programmable Application Platform: Beyond standard drive functionality, the NDCU-33CX serves as a powerful programmable automation controller . Engineers can develop custom applications using DriveAPL or CoDeSys IEC 61131-3 programming languages (ladder logic, function block diagram, structured text, etc.), implementing complex logic such as multi-motor synchronization, flying shear control, tension management, and PID control directly within the drive . This “software-defined control” approach enables the NDCU-33CX to function as an intelligent edge node, reducing reliance on external PLCs and minimizing system latency.
