Picture a large-scale data center in Guangdong that was experiencing frequent overheating issues due to inefficient cooling systems.The root cause?Faulty condenser fan motors that failed to maintain adequate airflow through the chiller units.

After replacing the existing motors with the MAGNETEK 8-177434-01 Condenser Fan Motors,the facility saw a dramatic improvement in thermal management—lower ambient temperatures,reduced compressor load,and fewer emergency shutdowns.The TEFC enclosure and high-efficiency design ensured long-term durability even in high-humidity environments.

This motor is also widely used in rooftop HVAC units,refrigerated transport systems,and industrial process cooling equipment—making it a versatile solution across multiple sectors.

Parameter

Main Parameters Value/Description

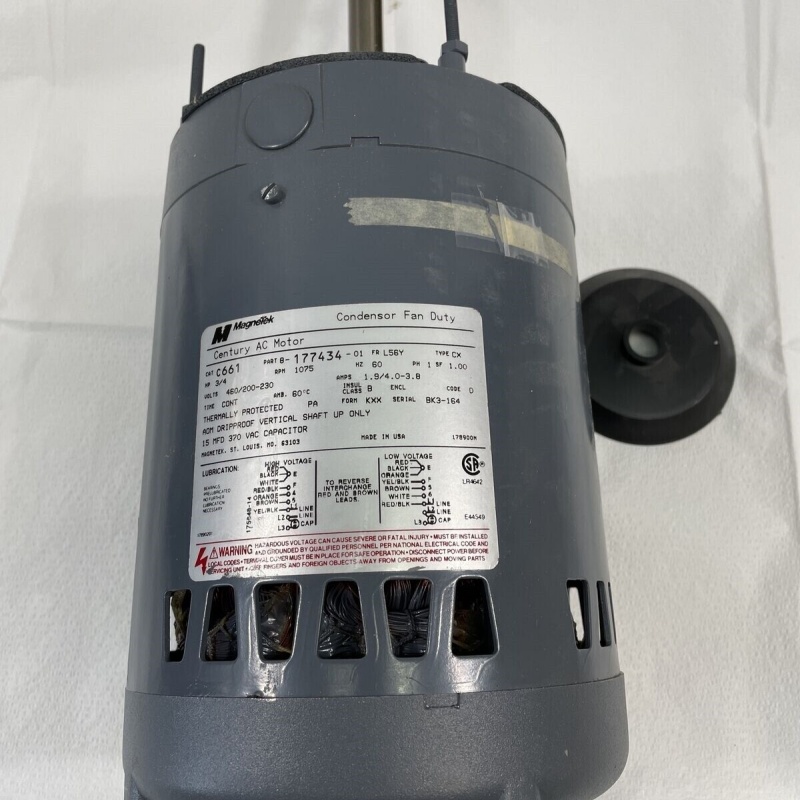

Product Model MAGNETEK 8-177434-01

Manufacturer MAGNETEK/Regal Beloit

Product Category Condenser Fan Motor

Power Output N/A(Fan Motor Assembly)

Voltage 460V AC Single-Phase

Current Rating As per connected fan unit

Speed Typically 1140 RPM

Frequency 60 Hz

Frame Size Standard Mounting for Condenser Units

Enclosure Type Totally Enclosed Fan-Cooled(TEFC)

Mounting Style Flange or Bracket Mount

Insulation Class Class F

Protection Rating IP54(Dust Resistant,Water Drip-Proof)

Note:This motor is typically part of an OEM assembly and may be sold as a complete fan motor unit rather than a standalone motor.

Technical Principles and Innovative Values

Innovation Point 1:High-Efficiency Cooling Design

The MAGNETEK 8-177434-01 motor is engineered for continuous operation in high-temperature environments,providing consistent airflow to condensers and radiators without overheating or performance degradation.

Innovation Point 2:Robust TEFC Housing

Its Totally Enclosed Fan-Cooled structure ensures protection against dust ingress and water splashes,making it ideal for outdoor and semi-indoor installations like rooftop HVAC units.

Innovation Point 3:Low Maintenance Operation

Built with durable bearings and sealed components,this motor requires minimal servicing over its lifespan—reducing downtime and maintenance costs.

Innovation Point 4:Universal Compatibility

Designed to fit various OEM condenser units,the MAGNETEK 8-177434-01 serves as a direct replacement for many legacy models,simplifying retrofitting and upgrades.

Innovation Point 5:Energy-Saving Performance

With optimized windings and low current draw,this motor contributes to overall system energy efficiency—helping facilities meet sustainability goals and reduce operating costs.

Application Cases and Industry Value

Case Study 1:Rooftop HVAC Unit Replacement

A hotel chain in Hainan replaced aging condenser fans with the MAGNETEK 8-177434-01 units across all properties.Post-installation,technicians reported quieter operation,improved cooling capacity,and a 10%reduction in power consumption during peak summer months.

Case Study 2:Refrigerated Transport System Upgrade

A logistics company integrated the MAGNETEK 8-177434-01 into their fleet’s refrigeration units.The motor’s resistance to vibration and moisture ensured reliable operation in harsh road conditions,significantly lowering field failure rates.

These real-world deployments demonstrate how the MAGNETEK 8-177434-01 Condenser Fan Motor enhances system longevity,improves cooling efficiency,and supports sustainable operations across industries.

Installation,Maintenance,and Full-Cycle Support

Installation preparation:Before installing the MAGNETEK 8-177434-01,ensure the power supply matches the required voltage(460V AC single-phase)and verify that the mounting configuration aligns with the condenser unit.Confirm correct wiring polarity and grounding before powering up.

Maintenance guidance:Regular inspections should include checking for loose connections,unusual vibrations,and signs of overheating.In outdoor installations,inspect for corrosion or moisture ingress and clean the motor housing periodically.

Full-cycle support:At Shenzhen Changxin Automation,we offer comprehensive technical support for the MAGNETEK 8-177434-01 Condenser Fan Motor,including remote diagnostics,replacement services,and application-specific advice.Our global spare parts network ensures fast delivery,and our engineering team can provide customized integration solutions tailored to your system requirements.

Final Call to Action

Whether you’re maintaining a commercial HVAC system,upgrading a refrigeration unit,or managing industrial cooling infrastructure,the MAGNETEK 8-177434-01 Condenser Fan Motor offers proven reliability,energy efficiency,and long-term performance.Paired with expert support from Shenzhen Changxin Automation,you’ll always have the right tools and expertise to keep your systems running smoothly.
