Description

Application Scenarios

Imagine a large-scale pharmaceutical production facility where precise temperature and humidity controls are essential.The original control transformers were overheating due to inconsistent load distribution,causing intermittent PLC resets and system alarms.

After replacing them with the MAGNETEK 636-1201 Transformers,the plant experienced stable voltage supply across all control circuits,reduced equipment failures,and improved overall system reliability.The 750VA capacity allowed for multiple relay coils,HMI displays,and sensors to be powered simultaneously without overloading.

This transformer is also widely used in food processing lines,building management systems,and automated packaging machines—making it an indispensable component in modern industrial control applications.

Parameter

Main Parameters Value/Description

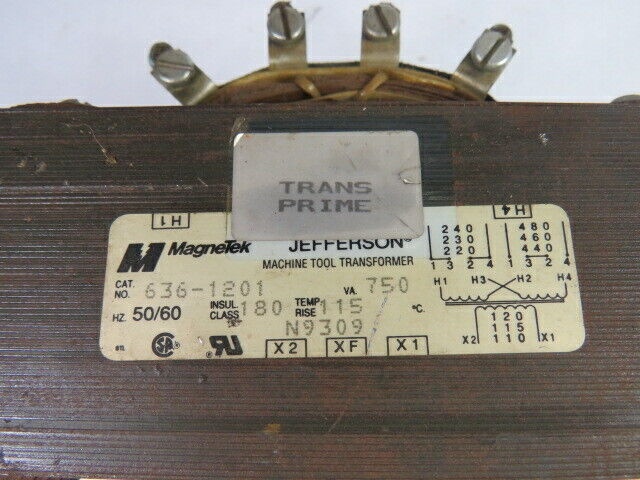

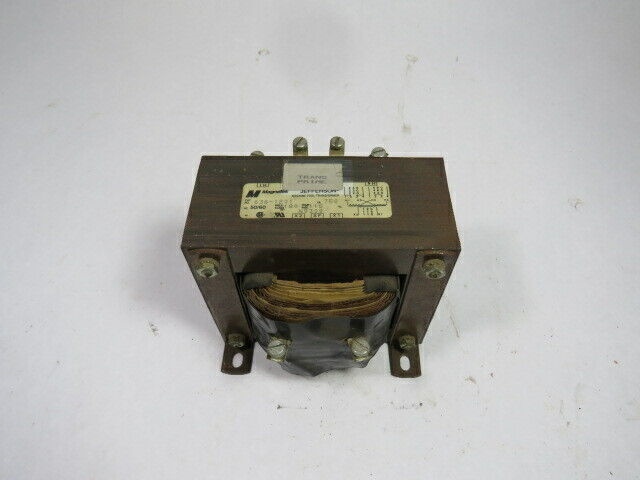

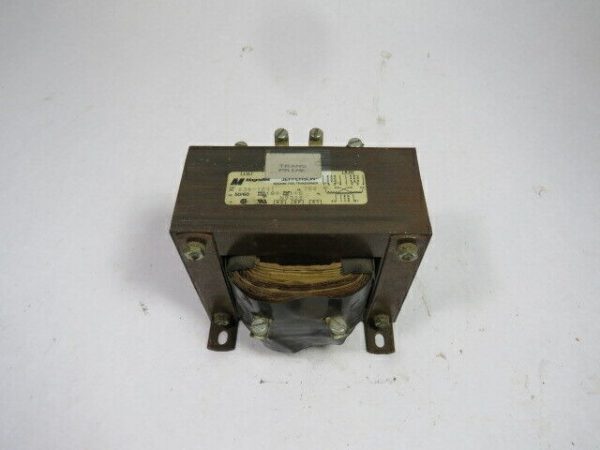

Product Model MAGNETEK 636-1201

Manufacturer MAGNETEK/Regal Beloit

Product Category Industrial Control Transformer

Power Rating 750 VA

Primary Input Voltage 220–240V AC

Secondary Output Voltage Typically 120V AC or custom taps

Frequency 50/60 Hz

Mounting Style DIN Rail or Panel Mount

Enclosure Type Open Frame or Optional Enclosure

Insulation Class Class F

Safety Certification UL Listed,CSA Certified

Thermal Protection Built-in Overload Protection

Technical Principles and Innovative Values

Innovation Point 1:High VA Capacity for Complex Systems

With a 750VA rating,the MAGNETEK 636-1201 can power multiple control components simultaneously—including relays,timers,contactors,and PLCs—without compromising performance.

Innovation Point 2:Dual Voltage Input Flexibility

Designed to accept 220–240V AC inputs,this transformer ensures compatibility across different global voltage standards,making it ideal for both domestic and international installations.

Innovation Point 3:Enhanced Electrical Isolation

The isolation between primary and secondary windings improves system safety by protecting sensitive electronics from high-voltage surges and ground faults.

Innovation Point 4:Compact and Easy Integration

Its space-saving design and standard mounting options allow for seamless integration into control cabinets and automation panels.

Innovation Point 5:Long-Term Reliability Under Load

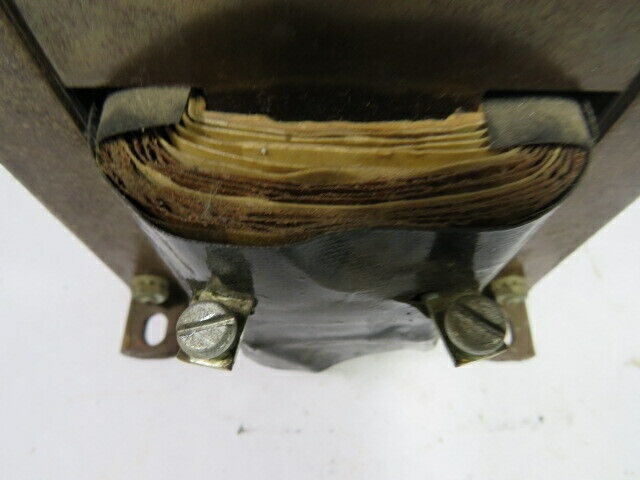

Engineered with high-grade copper windings and a laminated core,the MAGNETEK 636-1201 delivers consistent performance even under prolonged use and fluctuating loads.

Application Cases and Industry Value

Case Study 1:Building Management System Upgrade

An office complex upgraded its HVAC control panel using the MAGNETEK 636-1201 to replace outdated transformers.The result was more stable power delivery to thermostats and zone controllers,reducing service calls by 30%.

Case Study 2:Automated Packaging Line Integration

A beverage bottling plant installed the MAGNETEK 636-1201 in each control cabinet along the line.Operators reported fewer voltage drops and consistent operation of sensors and solenoids—even during peak shifts.

These real-world examples show how the MAGNETEK 636-1201 Transformer enhances system uptime,improves control circuit stability,and supports long-term maintenance efficiency.

Installation,Maintenance,and Full-Cycle Support

Installation preparation:Before installing the MAGNETEK 636-1201,ensure that the incoming voltage matches 220–240V AC,and verify that the control circuit requirements align with the transformer’s VA rating.Use proper fusing on both primary and secondary sides to prevent overloads.

Maintenance guidance:Regular inspection should include checking for signs of overheating,loose terminals,or insulation degradation.In dusty environments,periodic cleaning around the core and windings is recommended to avoid heat buildup.

Full-cycle support:At Shenzhen Changxin Automation,we provide comprehensive technical support for the MAGNETEK 636-1201 Transformer,including remote diagnostics,product replacement,and customized integration services.Our global parts inventory ensures fast delivery,and our engineering team offers tailored solutions for your specific control system needs.

Final Call to Action

Whether you’re designing a new control cabinet,retrofitting an existing automation system,or maintaining critical HVAC infrastructure,the MAGNETEK 636-1201 Transformer 750VA delivers the performance,durability,and safety you need to keep your operations running smoothly.

Backed by Shenzhen Changxin Automation,you’ll always have access to expert advice,genuine parts,and responsive service whenever you need it.
